Legrand 364235 Bticino Flex'ONE audio set with door station SFERA and codelock +CLASSE100

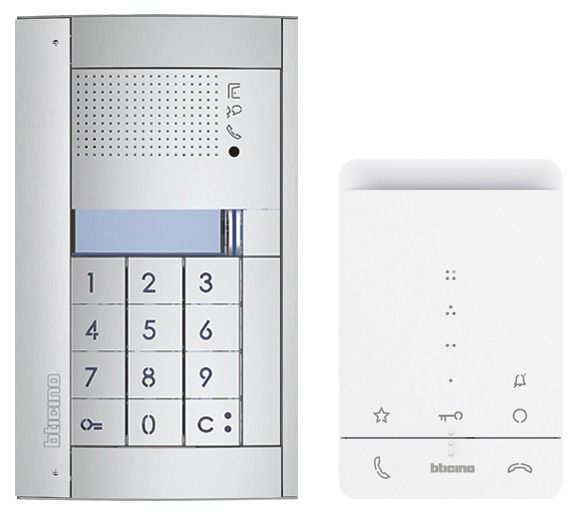

Flex'ONE audio set with SFERA door station + code lock and CLASSE 100 A16E house station. The set in 2-wire technology contains all the parts required to create a single-family home intercom system. The extension to a two-family home is done by adding a second house station of your choice. The set consists of:- 1 flush-mounted SFERA door station in the Allmetal version. Supplied with 2 front panels (1 and 2 call buttons) and can therefore be configured as a single- or two-family home. Equipped with a nameplate including an integrated brightness sensor for automatically switching on the background lighting (white LEDs) in the dark. Status LEDs for the operating states: door open, communication active, call made and system occupied. The door opener (max. 30 Ohm internal resistance) is connected directly to the S+ and S- terminals (18 V, 4 A surge current, 250 mA holding current). The integrated code lock module activates the REG door opener relay, order no. 346230 (included in delivery), the door opener relay directly on the loudspeaker module or the changeover contact (C-NO-NC) which is included on the code lock module itself. Status LED to display the access status. Nighttime LED background lighting. Protection class IP 54, impact resistance IK 08, dimensions: W × H: 138 × 235 mm, color: similar to RAL 9018 - 1 video power supply unit - 1 REG door opener relay, order no. 346230- 1 handsetless surface-mounted house station CLASSE 100 A16EFree intercom, in addition to the two physical call buttons (accept or end call), it has 3 sensor buttons for: opening the door, switching on the staircase light (activator order no. 346210 is required) and switching the door station on or off, as well as 4 freely configurable additional buttons (e.g. internal speaking, additional door opener, etc.). 16 melodic ring tones can be set. Incl. doctor connection/door automat function. For door/floor call with call differentiation. The volume of the ring tone is adjusted using the side control. LED display for: ring tone deactivation, door opener and connection status. Surface mounting using the wall bracket supplied. A table accessory (order no. 344692) is available separately. Connection for BUS, floor call and additional bell. Dimensions W × H × D: 102 × 155 × 18.5 mm- Circuit diagram and operating instructions
Type: Bticino 364235
