Legrand 364234 Bticino Flex'ONE audio set with door station SFERA (1 and 2 call buttons) content_copy

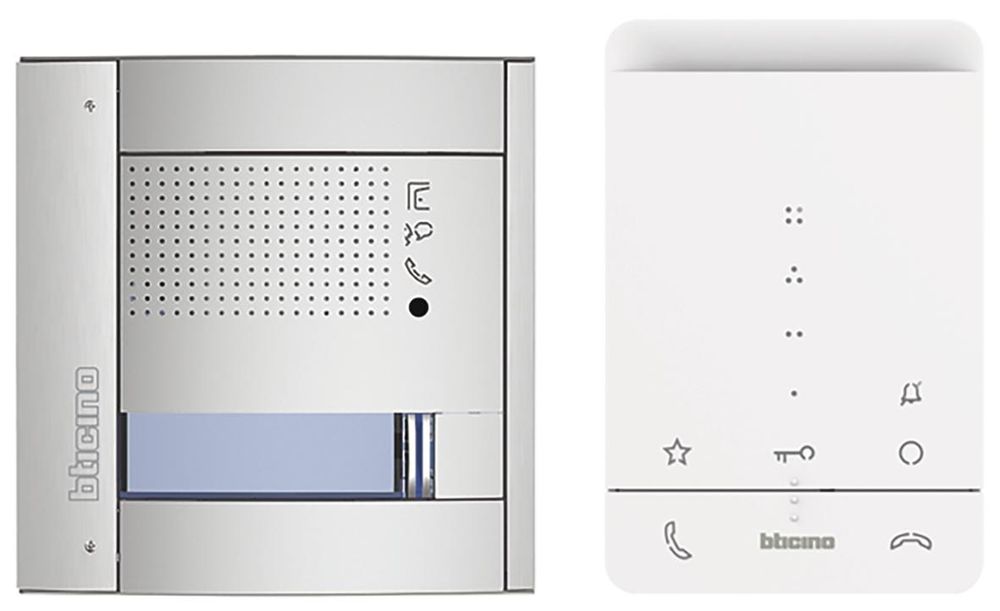

Flex'ONE audio set with SFERA door station and CLASSE 100 A16E house station. The set in 2-wire technology contains all the parts required to create a single-family home intercom system. The extension to a two-family home is done by adding a second house station of your choice. The set consists of:- 1 flush-mounted SFERA door station in the Allmetal version. Supplied with 2 front panels (1 and 2 call buttons) and can therefore be configured as a single- or two-family home. Equipped with a nameplate including an integrated brightness sensor for automatically switching on the background lighting (white LEDs) in the dark. Status LEDs for the operating states: door open, communication active, call made and system occupied. The door opener (max. 30 Ohm internal resistance) is connected directly to the S+ and S- terminals (18 V, 4 A surge current, 250 mA holding current). Protection class IP 54, impact resistance IK 08, dimensions: W × H: 138 × 144 mm, color: similar to RAL 9018- 1 audio power supply unit- 1 handsetless surface-mounted house station CLASSE 100 A16EFree intercom, in addition to the two physical call buttons (accept or end call), it has 3 sensor buttons for: opening the door, switching on the staircase light (activator order no. 346210 is required) and switching the door station on or off as well as 4 freely configurable additional buttons (e.g. internal speaking, additional door opener, etc.). 16 melodic ring tones can be set. Incl. doctor connection/door automat function. For door/floor calls with call differentiation. The volume of the ring tone is adjusted using the side control. LED display for: ring tone deactivation, door opener and connection status. Surface mounting using the wall bracket supplied. A table accessory (order no. 344692) is available separately. Connection for BUS, floor call and additional bell. Dimensions W × H × D: 102 × 155 × 18.5 mm - Circuit diagram and operating instructions
