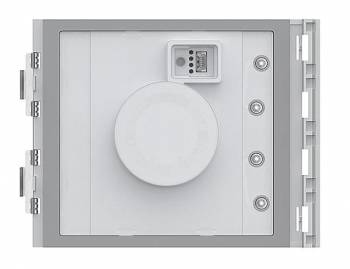

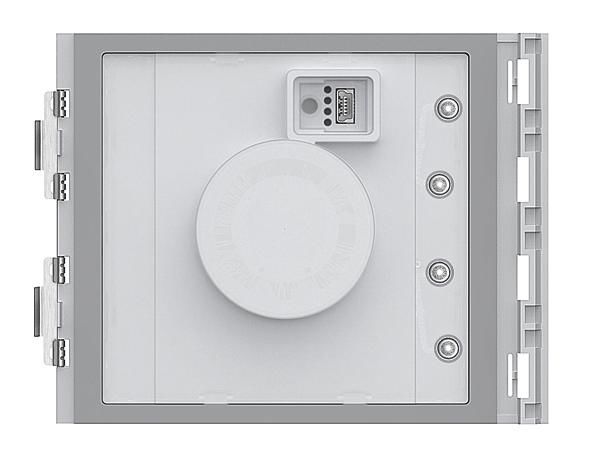

Legrand 353200
LEG card reader module

RFID transponder reader. RFID transponder reader for opening doors by bringing transponder keys (electronic keys) closer to them. Manages up to 2,000 transponders and has contact relays (C-NO-NC) and terminals (CP-P1-P2) for connecting an external door release button. The electronic key (transponder) for opening doors is programmed either from the module or from a PC by transferring the program files to the module. Has a program reset button and status LED to indicate the access status. LED backlight. To be completed with a suitable front panel. Connection via the appropriate connection cable supplied. The module can be configured either using configurators or via a PC and TiSferaDesign software. Note: If the transponder module is connected to a loudspeaker using the ribbon cable supplied, the changeover contact is deactivated and the door release contact on the loudspeaker module is controlled. The module can also be operated in stand-alone mode with an autonomous BUS power supply unit. When combined with the Basic audio loudspeaker module (item 351000), the transponder module can only be used in stand-alone mode.
Type: 353200
