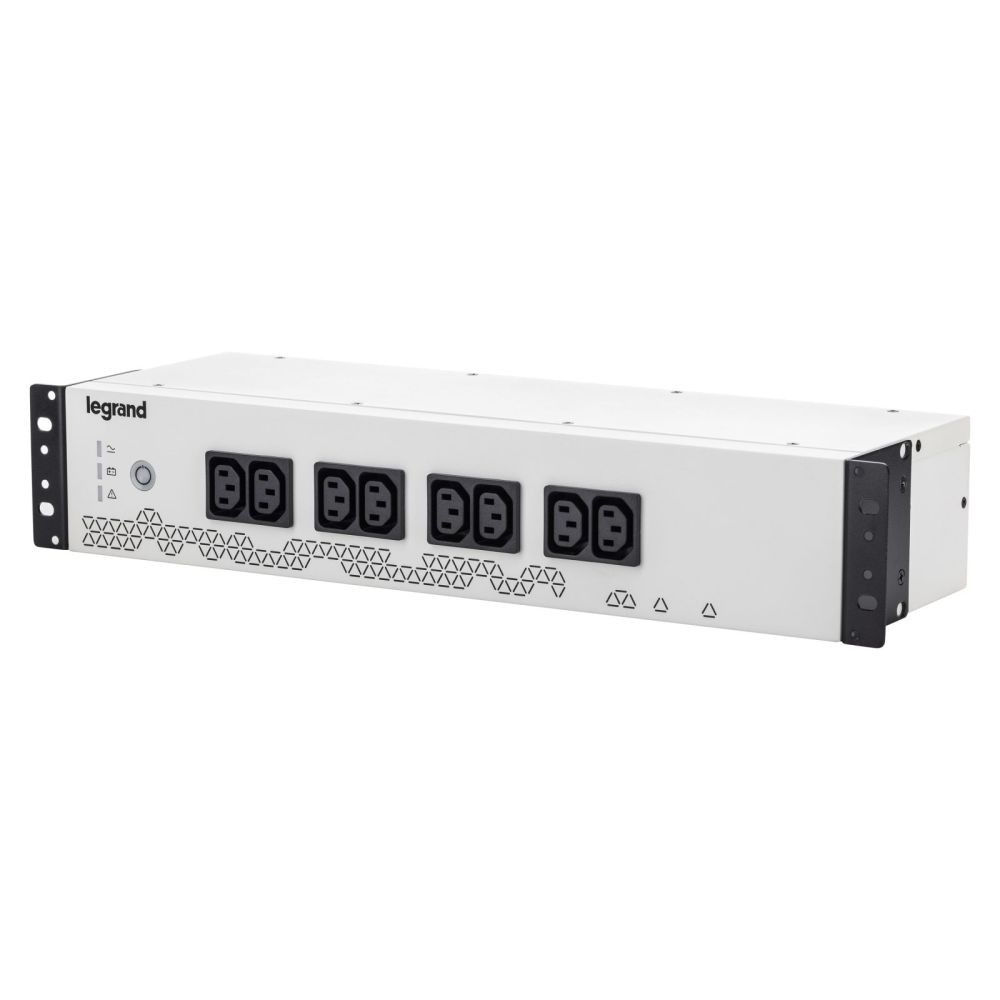

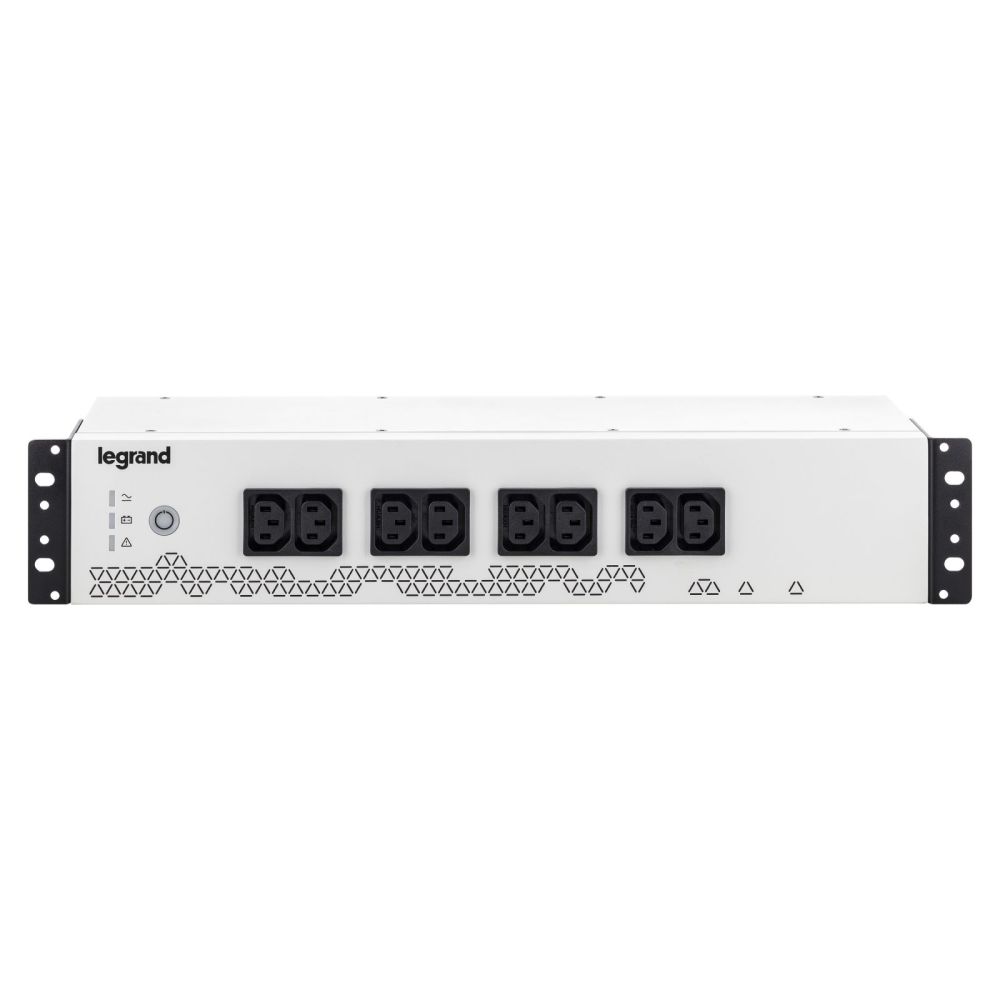

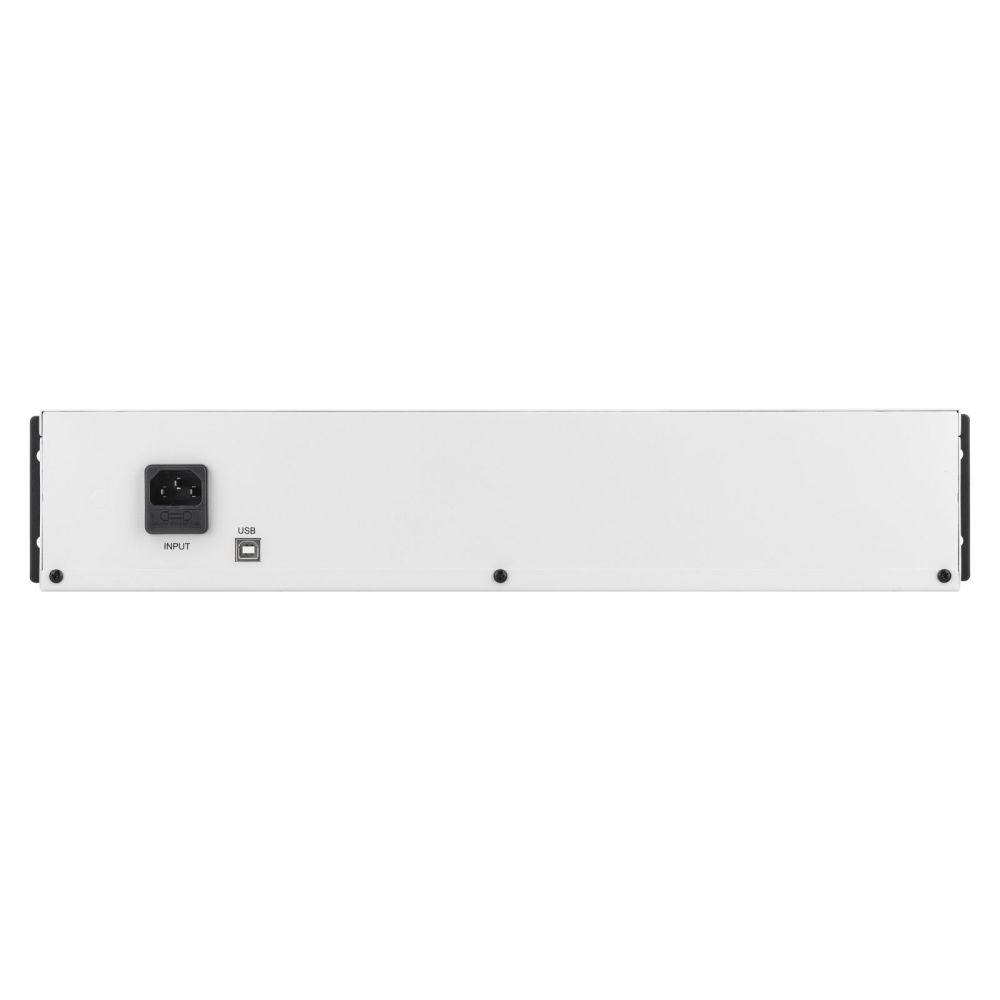

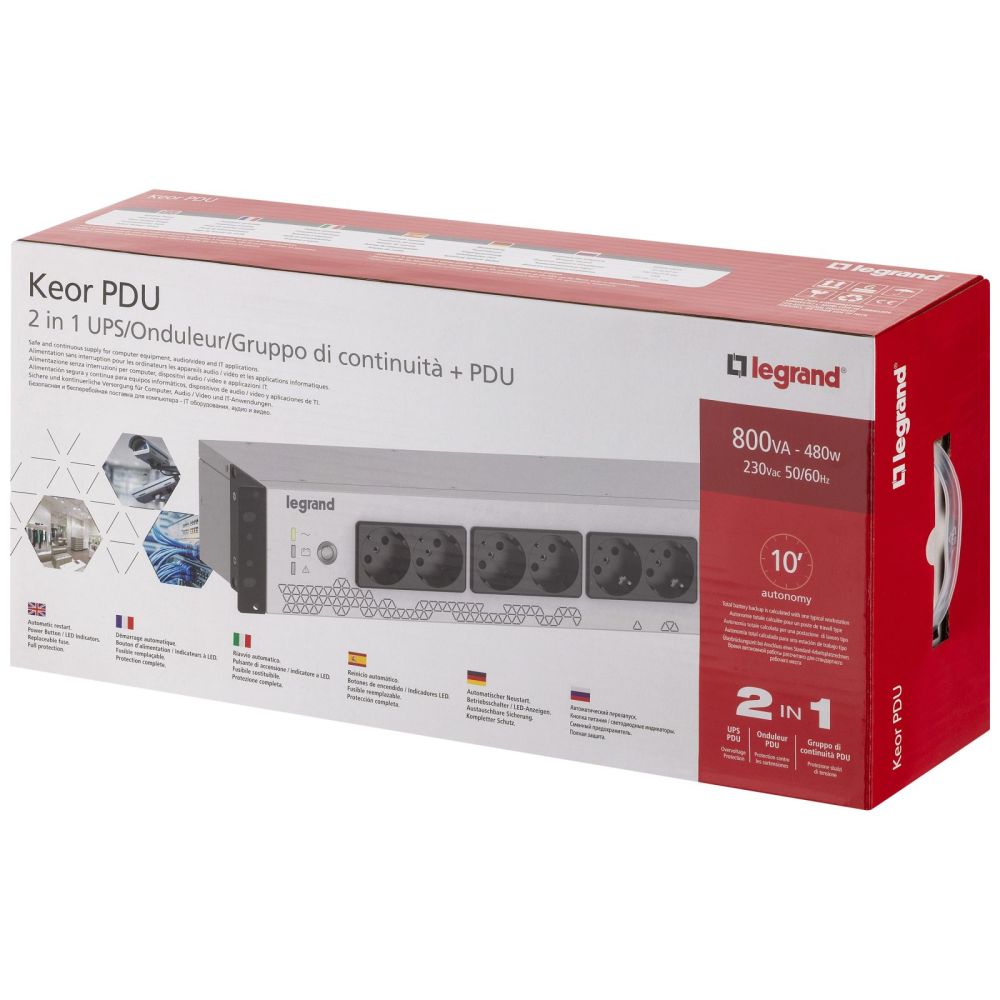

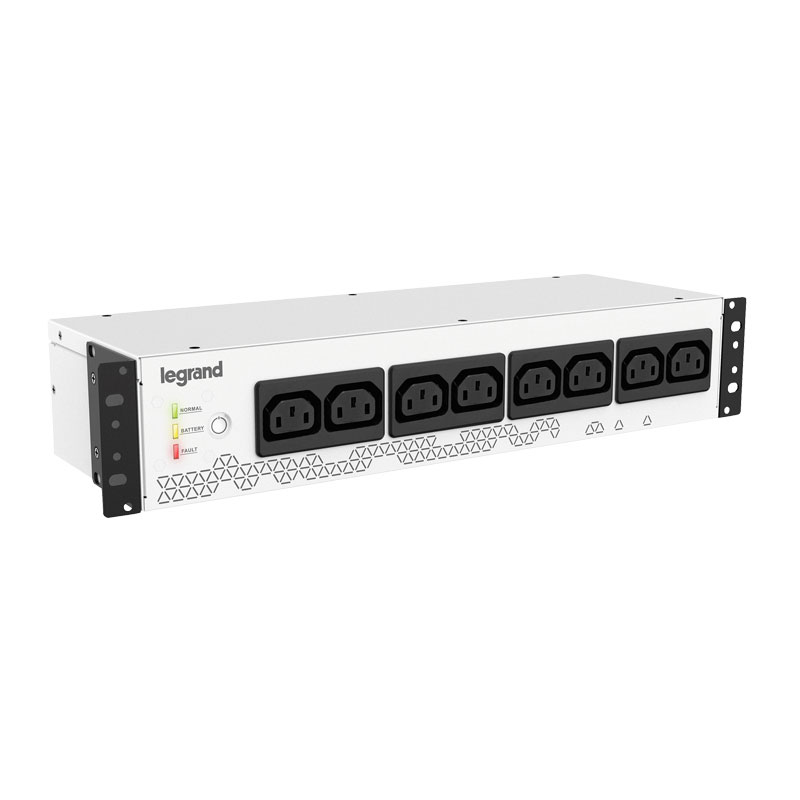

Legrand 310331 Keor PDU 800 VA 8 IEC
|
335,73 EUR 349,87 EUR |
|||||||||||
|
( 399,52 EUR incl. VAT ) ≈ £282.68 | ≈ $377.02 plus delivery charges: 83,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1778238 | ||||||||||
| Mfg Part No: | 310331 | ||||||||||
| UPC/EAN: | 3414971529397 | ||||||||||
| Weight: | 6.325 kg | ||||||||||
| Type: | 310331 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Legrand 310331:
The PDU design with ultra-compact dimensions requires only 2 rack height units. Keor PDU is equipped with 8 sockets
and can bridge a power failure for up to 15 minutes. Very quiet operation because there is no fan!
Applications: Office area, IT, home office, and much more
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 9 Ah |
| Number of batteries supported | 1 |
| Typical backup time at half load | 10 min |
| Certificates | |
| Compliance certificates | CE |
| Certification | EN 62040-1, EN 62040-2 |
| Design | |
| Form factor | Rackmount |
| Rack capacity | 2U |
| Product colour | Black, White |
| LED indicators | |
| Features | |
| UPS topology | Standby (Offline) |
| Output power capacity | 0.8 kVA |
| Output power | 480 W |
| Waveform | Sine |
| Input operation voltage (min) | 160 V |
| Input operation voltage (max) | 290 V |
| Input frequency | 45/65 Hz |
| Output operation voltage (min) | 207 V |
| Output operation voltage (max) | 253 V |
| Output frequency | 50/60 Hz |
| Output frequency regulation | 1 Hz |
| Output voltage regulation | 10% |
| Maximum current | 10 A |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Efficiency | 98% |
| Output power factor | 0.6 |
| Noise level | 40 dB |
| Power protection features | Overdischarge, Overload, Short circuit |
| Power source type | AC |
| Potential-free output | |
| Auto shut-off | |
| Logistics data | |
| Products per pallet | 48 pc(s) |
| Pallet net height | 105 cm |
| Pallet net length | 100 cm |
| Pallet net width | 120 cm |
| Pallet net weight | 303.6 kg |
| Harmonized System (HS) code | 85078000 |
| Master (outer) case width | 159 mm |
| Master (outer) case length | 528 mm |
| Master (outer) case height | 255 mm |
| Master (outer) case gross weight | 6.33 kg |
| Products per master (outer) case | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Packaging data | |
| Package width | 88 mm |
| Package depth | 5.81 mm |
| Package height | 440 mm |
| Package weight | 6.01 kg |
| Ports & interfaces | |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| AC outlets quantity | 16 AC outlet(s) |
| Number of type F outputs | 8 |
| USB port type | USB Type-B |
| USB port | |
| Sustainability | |
| Sustainability compliance | |
| Weight & dimensions | |
| Width | 88 mm |
| Depth | 150 mm |
| Height | 440 mm |
| Weight | 5.5 kg |
