Legrand 310190 Keor Sp 1500 Schuko I
|
441,94 EUR 460,55 EUR |
|||||||||||
|
( 525,91 EUR incl. VAT ) ≈ £372.11 | ≈ $496.30 plus delivery charges: 148,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1779957 | ||||||||||
| Mfg Part No: | 310190 | ||||||||||
| UPC/EAN: | 3414971232075 | ||||||||||
| Weight: | 12 kg | ||||||||||
| Type: | 310190 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Legrand 310190:
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 9 Ah |
| Number of batteries supported | 2 |
| Certificates | |
| Compliance certificates | CE |
| Certification | EN 62040-1, EN 62040-2 |
| Design | |
| Form factor | Mini Tower |
| Product colour | Black, White |
| LED indicators | |
| Features | |
| UPS topology | Line-Interactive |
| Output power capacity | 1.5 kVA |
| Output power | 900 W |
| Waveform | Sine |
| Input operation voltage (min) | 170 V |
| Input operation voltage (max) | 280 V |
| Input frequency | 45/65 Hz |
| Output operation voltage (min) | 207 V |
| Output operation voltage (max) | 253 V |
| Output frequency | 50/60 Hz |
| Output frequency regulation | 1 Hz |
| Output voltage regulation | 10% |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Efficiency | 97% |
| Output power factor | 0.6 |
| Noise level | 40 dB |
| Power protection features | Overcharge, Overdischarge, Overload, Short circuit |
| Power source type | AC |
| Automatic Voltage Regulation (AVR) | |
| Surge protection | |
| Audible alarm(s) | |
| Potential-free output | |
| Auto shut-off | |
| Logistics data | |
| Products per pallet | 40 pc(s) |
| Pallet net height | 123 cm |
| Pallet net length | 100 cm |
| Pallet net width | 120 cm |
| Pallet net weight | 472.3 kg |
| Harmonized System (HS) code | 85078000 |
| Master (outer) case width | 243 mm |
| Master (outer) case length | 465 mm |
| Master (outer) case height | 265 mm |
| Master (outer) case gross weight | 11.8 kg |
| Products per master (outer) case | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Packaging data | |
| Package width | 148 mm |
| Package depth | 9.73 mm |
| Package height | 173 mm |
| Package weight | 11.2 kg |
| Ports & interfaces | |

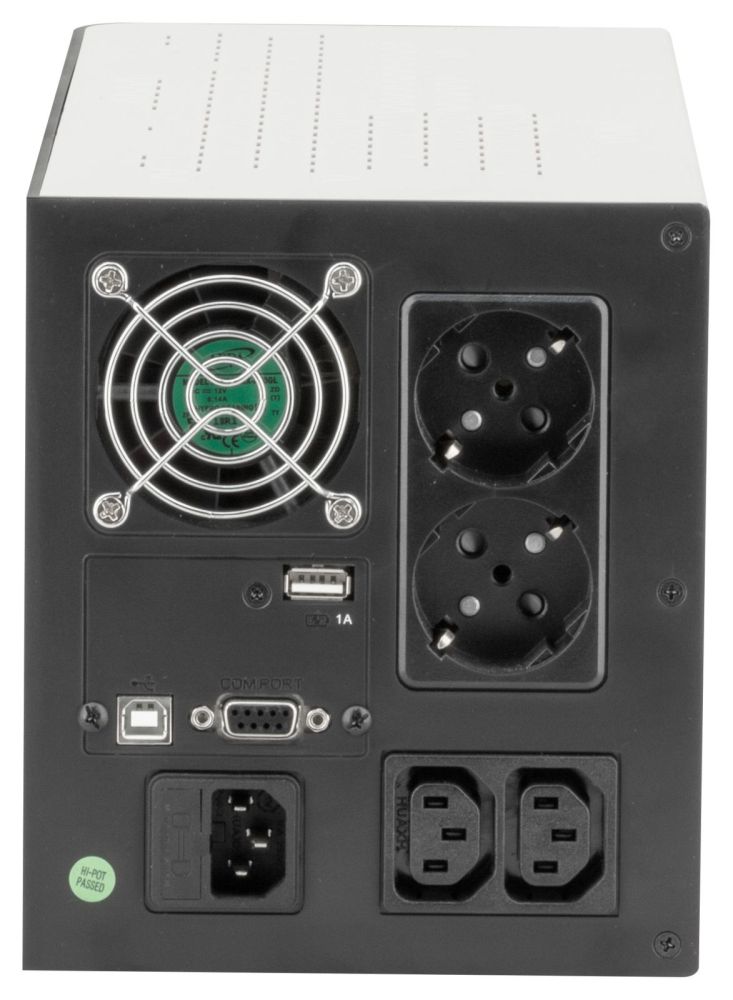

| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| AC outlets quantity | 4 AC outlet(s) |
| Number of type F outputs | 2 |
| USB 2.0 ports quantity | 2 |
| USB port type | USB Type-A/USB Type-B |
| USB port | |
| Serial interface | |
| Sustainability | |
| Sustainability compliance | |
| Weight & dimensions | |
| Width | 148 mm |
| Depth | 380 mm |
| Height | 173 mm |
| Weight | 10.5 kg |
Questions & answers
What is the delivery time of Legrand 310190 Keor Sp 1500 Schuko I?
The article Legrand 310190 Keor Sp 1500 Schuko I is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Legrand 310190 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Legrand 310190 Keor Sp 1500 Schuko I always at the best possible price. We can give you a discount of 2% on Legrand 310190 Keor Sp 1500 Schuko I if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Legrand 310190 Keor Sp 1500 Schuko I we can offer you a price of 425,37 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
