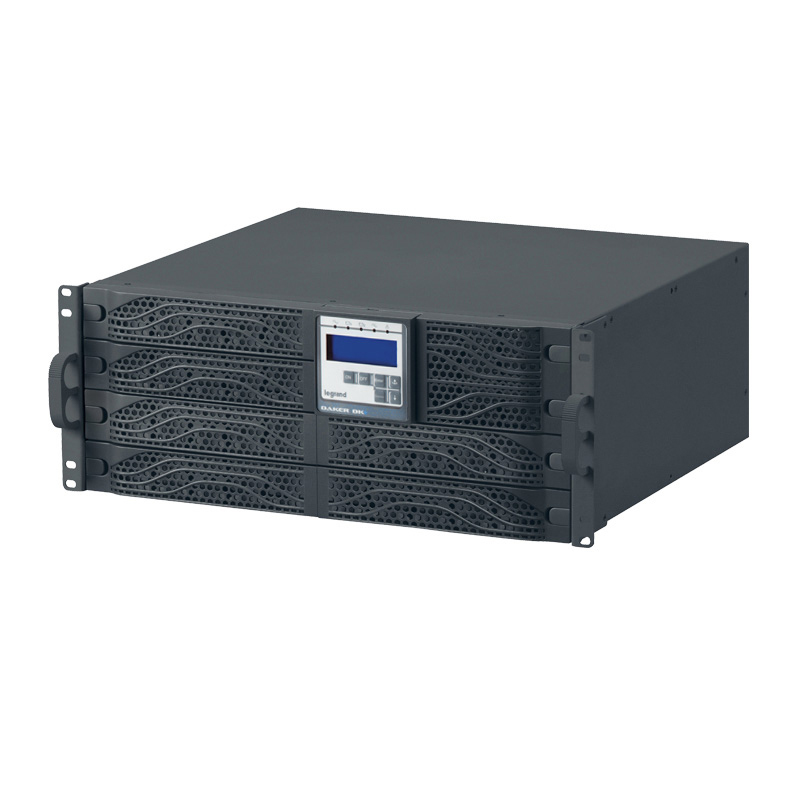

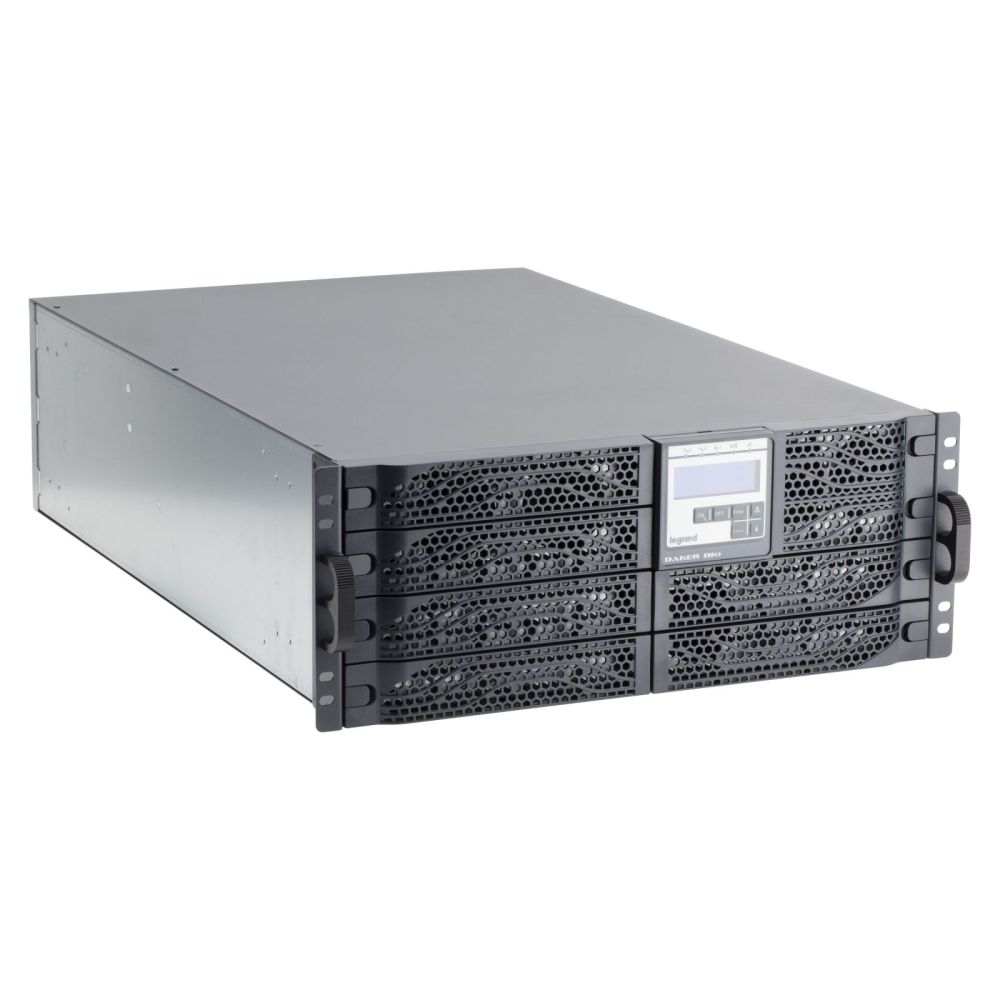

Legrand 310174 DAKER DK 6000 VA Online UPS Combo rack terminals
|
4.032,75 EUR 4.202,55 EUR |
|||||||||||
|
( 4.798,97 EUR incl. VAT ) ≈ £3,403.64 | ≈ $4,516.68 plus delivery charges |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 690694 | ||||||||||
| Mfg Part No: | 310174 | ||||||||||
| UPC/EAN: | 3414970826961 | ||||||||||
| Weight: | 59.1 kg | ||||||||||
| Type: | 310174 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Legrand 310174:
| Battery | |
| Battery capacity | 5 Ah |
| Battery voltage | 12 V |
| Number of batteries supported | 20 |
| Certificates | |
| Certification | EN 62040-1, EN 62040-2, EN 62040-3 |
| Design | |
| Form factor | Rackmount |
| Rack capacity | 4U |
| Product colour | Black |
| Display type | LCD |
| LED indicators | Status |
| International Protection (IP) code | IP20 |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 6 kVA |
| Output power | 6000 W |
| Waveform | Sine |
| Input operation voltage (min) | 176 V |
| Input operation voltage (max) | 280 V |
| Input frequency | 47/63 Hz |
| Output operation voltage (min) | 228 V |
| Output operation voltage (max) | 232 V |
| Output frequency | 50/60 Hz |
| Output voltage regulation | 1% |
| Surge energy rating | 1900 J |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Efficiency | 94% |
| Efficiency (ECO mode) | 97% |
| Power factor | 1 |
| Input power factor | 0.99 |
| Output power factor | 1 |
| Crest factor | 3:1 |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Input current Total Harmonic Distortion (THD) | 3% |
| Noise level | 50 dB |
| Management protocols | Network management,Simple Network Management Protocol (SNMP) |
| Power source type | AC |
| Emergency Power Off (EPO) | |
| Potential-free output | |
| Auto shut-off | |
| Detachable power cord | |
| Logistics data | |
| Products per pallet | 2 pc(s) |
| Pallet net height | 48 cm |
| Pallet net length | 100 cm |
| Pallet net width | 120 cm |
| Pallet net weight | 118.2 kg |
| Master (outer) case width | 560 mm |
| Master (outer) case length | 872 mm |
| Master (outer) case height | 316 mm |
| Master (outer) case gross weight | 59.1 kg |
| Products per master (outer) case | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Packaging data | |
| Package width | 196 mm |
| Package depth | 58.6 mm |
| Package height | 440 mm |
| Package weight | 56.1 kg |
| Ports & interfaces | |
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | Hardwire |
| AC outlets quantity | 11 AC outlet(s) |
| Serial interface type | RS-232 |
| USB port | |
| Serial interface | |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 680 mm |
| Height | 196 mm |
| Weight | 60 kg |
Questions & answers
What is the delivery time of Legrand 310174 DAKER DK 6000 VA Online UPS Combo rack terminals?
The article Legrand 310174 DAKER DK 6000 VA Online UPS Combo rack terminals is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Legrand 310174 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Legrand 310174 DAKER DK 6000 VA Online UPS Combo rack terminals always at the best possible price. We can give you a discount of 2% on Legrand 310174 DAKER DK 6000 VA Online UPS Combo rack terminals if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 2 pieces of Legrand 310174 DAKER DK 6000 VA Online UPS Combo rack terminals we can offer you a price of 3.881,52 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
