Legrand 049832 Plastic grid 49832 MAXIREX for front panel mounting

Your rating:
Average rating
product review for Legrand 049832 Plastic grid 49832 MAXIREX for front panel mounting
( 4.5 / 5 ) 12 ratings
Legrand 049832
This image may differ from the desired article.
Legrand 049832Legrand 049832
3,93 EUR
( 4,68 EUR incl. VAT )
≈ £3.29  |  ≈ $4.32
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: >50 pieces
1x Legrand 049832 Plastic grid 49832 MAXIREX for front panel mounting
Datasheet:file_download Download
Lieske Part No.:858229
Mfg Part No: 049832
UPC/EAN: 4010957498320
Weight:0.244 kg
Type:49832
Graduated prices net
From piecesPrice per pieces
503,69 EUR
1003,46 EUR
2503,22 EUR
5002,99 EUR

Product information for Legrand 049832:

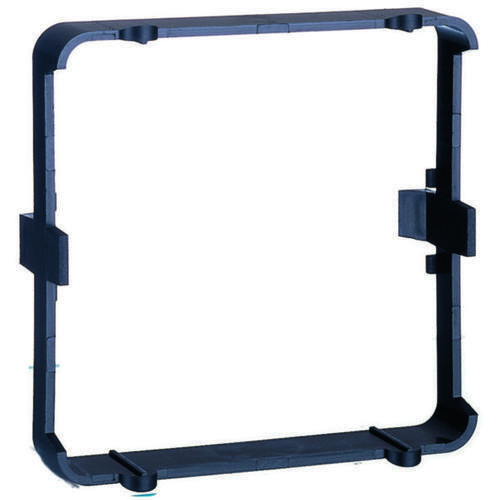

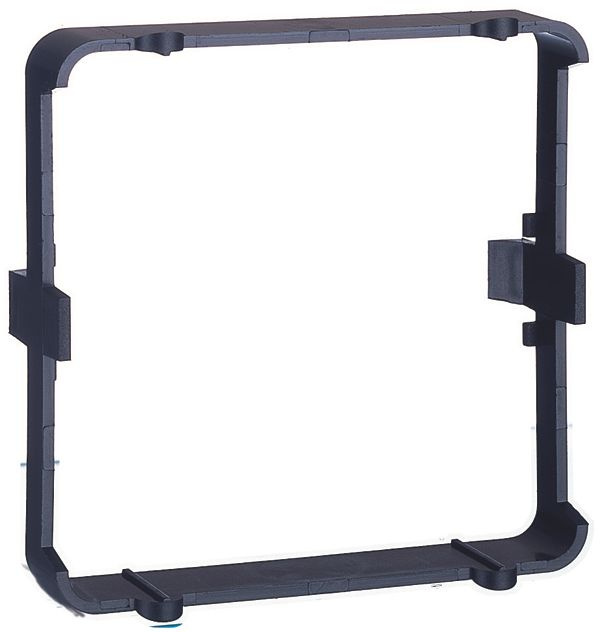

The article Legrand 049832 is a plastic front ring from the MaxiRex series, specifically designed for mounting front panel time clocks with dimensions of 72 x 72 mm. It serves as a mounting component to securely and neatly install the clock into a control cabinet door or any other front panel. The product is available in multicoloured version, allowing it to adapt to various colour concepts in electrical installations. The colour design is part of the product’s appearance and supports visual integration into existing systems.

Applications

The front ring is primarily used in industrial and commercial electrical installations where secure and aesthetic mounting of time clocks in control cabinets is required. It is designed for use in control cabinet doors, where it mechanically secures the clock and simultaneously provides a clean visual finish. Typical applications include systems requiring time-controlled operation of electrical loads, such as lighting systems, heating controls, or production plants.

Functions and Equipment in Detail

The front ring is made of plastic and allows for easy installation without additional fastening elements. It is designed as a Clip-On system, meaning it is directly clipped onto the front panel time clock and then inserted into the designated opening in the control cabinet. The construction ensures stable fixation, withstanding vibrations and mechanical stress during operation. The multicoloured design supports visual differentiation of various circuits or functions within a control cabinet.

Technology Explained Simply

The product is not an active electronic device, but a purely mechanical mounting component. It performs no electrical or control function, serving exclusively for the installation and fixation of the clock. The term Clip-On describes the mounting method: the front ring is clipped over the clock and holds it securely, without requiring additional screws or adhesives. The choice of plastic material ensures high dimensional stability, low weight, and good processability.

Compatibility and Accessories

The front ring is specifically designed for front panel time clocks from Legrand’s MaxiRex series, which have a mounting size of 72 x 72 mm. It is not intended for other clock formats or brands. Compatibility is limited to the specified product line, with precise fit ensured by the specific design of the Clip-On system.

Installation and Mounting

Mounting is done by simply clipping the front ring onto the rear of the front panel time clock. The complete assembly is then inserted into the designated opening in the control cabinet door. The mechanical locking mechanism ensures secure fixation. No additional tools or mounting aids are required. Installation is quick and does not require special skills.

Advantages in Operation

The front ring offers simple, fast, and secure mounting of the clock in control cabinets. The multicoloured design improves clarity in complex systems. The robust construction ensures long service life and reliable performance under industrial conditions. The use of the Clip-On system reduces installation effort and minimises the risk of incorrect installation.

Note: Batteries are not included in the delivery scope.

Design
Product colourMulticolour


Product data sheet
Datasheet for Legrand 049832, EAN: 4010957498320

Questions & answers

What is the delivery time of Legrand 049832 Plastic grid 49832 MAXIREX for front panel mounting?

The article Legrand 049832 Plastic grid 49832 MAXIREX for front panel mounting is currently in stock

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Legrand 049832 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Legrand 049832 Plastic grid 49832 MAXIREX for front panel mounting always at the best possible price. We can give you a discount of 2% on Legrand 049832 Plastic grid 49832 MAXIREX for front panel mounting if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 50 pieces of Legrand 049832 Plastic grid 49832 MAXIREX for front panel mounting we can offer you a price of 3,69 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
