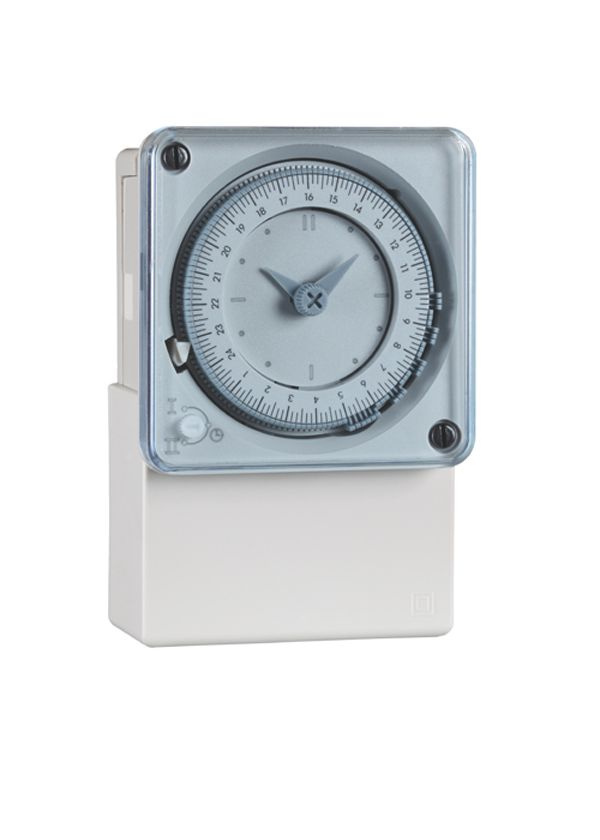

Legrand 049754 Analog day timer 49754 MAXIREX QT front mounting 230 V

Your rating:
Average rating
product review for Legrand 049754 Analog day timer 49754 MAXIREX QT front mounting 230 V
( 4.4 / 5 ) 41 ratings
Legrand 049754
This image may differ from the desired article.
Legrand 049754Legrand 049754Legrand 049754
119,27 EUR
( 141,93 EUR incl. VAT )
≈ £99.83  |  ≈ $131.08
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: >5 pieces
1x Legrand 049754 Analog day timer 49754 MAXIREX QT front mounting 230 V
Datasheet:file_download Download
Lieske Part No.:737176
Mfg Part No: 049754
UPC/EAN: 4010957497545
Weight:0.244 kg
Type:49754
Graduated prices net
From piecesPrice per pieces
5114,80 EUR
10110,32 EUR
15105,85 EUR
20101,38 EUR

Product information for Legrand 049754:

The Legrand MicroRex QT, type 049754, is an analogue daily time switch for use in electrical installations. It is designed for the automatic control of loads such as lighting, heating, or ventilation according to a predefined daily programme. The device is designed for front panel mounting and wall mounting, and features a quartz motor that ensures high timekeeping accuracy. The time switch is available in multi-coloured versions and offers a clear, easy-to-read display of time and switching programme.

Applications

The time switch is suitable for applications requiring daily, time-controlled switching of electrical loads. Typical applications include controlling outdoor lighting, heating systems, pumps, or ventilation equipment in residential and commercial buildings. The option to mount the switch either on a front panel or on a wall provides flexibility during installation in various environments. The quartz technology ensures precise time control that remains stable even over extended operating periods.

Functions and Equipment in Detail

The Legrand MicroRex QT features a manual switch with three positions: ON, OFF, and AUTOMATIC. In the AUTOMATIC position, the pre-set daily programme is activated, while the ON and OFF positions allow for manual override. The clock hands are rotatable in both forward and reverse directions, enabling easy adjustment for time changes such as daylight saving or standard time. The shortest switching interval is 30 minutes, allowing even short switching operations to be programmed. The switching function is performed via a changeover switch, suitable for connecting to electrical loads.

Technology Explained Simply

The quartz motor provides a timekeeping accuracy of ±2.5 seconds per day, ensuring high reliability in time control. The power reserve is 100 hours, meaning the clock continues to function and retains the programme even during power outages. The operating voltage is 230 V at a frequency of 50/60 Hz, enabling use in standard electrical networks. The time switch is designed for single-channel operation, making it suitable for controlling a single load. The display is analogue, using a pointer to visually indicate the current time and switching times.

Compatibility and Accessories

The time switch can be mounted either on a front panel or on a wall. It is designed for use in electrical installations with an operating voltage of 230 V. The time switch is not intended for use in explosive environments.

Mounting and Installation

Installation is carried out either by wall mounting or by inserting into a front panel. The installation requires connecting the time switch to the electrical supply (230 V) and to the load to be controlled via the switching output (changeover switch). The terminal clamps are designed for connecting electrical conductors. The daily programme is set by rotating the pointer on the clock, with switching times being read visually from the scale. Adjustment for time changes is done by rotating the pointer in the desired direction.

Advantages in Operation

The analogue time switch offers simple and reliable control of electrical loads without a digital interface. The quartz technology ensures high accuracy, and the power reserve ensures stable operation even during short-term power failures. The manual override function allows for flexible use, particularly in emergencies or when temporary changes to the operating schedule are required. The clear display and simple operation make the time switch suitable for both electricians and end users.

Batteries are not included in the delivery scope.

Design
Product colourMulticolour


Product data sheet
Datasheet for Legrand 049754, EAN: 4010957497545

Questions & answers

What is the delivery time of Legrand 049754 Analog day timer 49754 MAXIREX QT front mounting 230 V?

The article Legrand 049754 Analog day timer 49754 MAXIREX QT front mounting 230 V is currently in stock

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Legrand 049754 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Legrand 049754 Analog day timer 49754 MAXIREX QT front mounting 230 V always at the best possible price. We can give you a discount of 2% on Legrand 049754 Analog day timer 49754 MAXIREX QT front mounting 230 V if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Legrand 049754 Analog day timer 49754 MAXIREX QT front mounting 230 V we can offer you a price of 114,80 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
