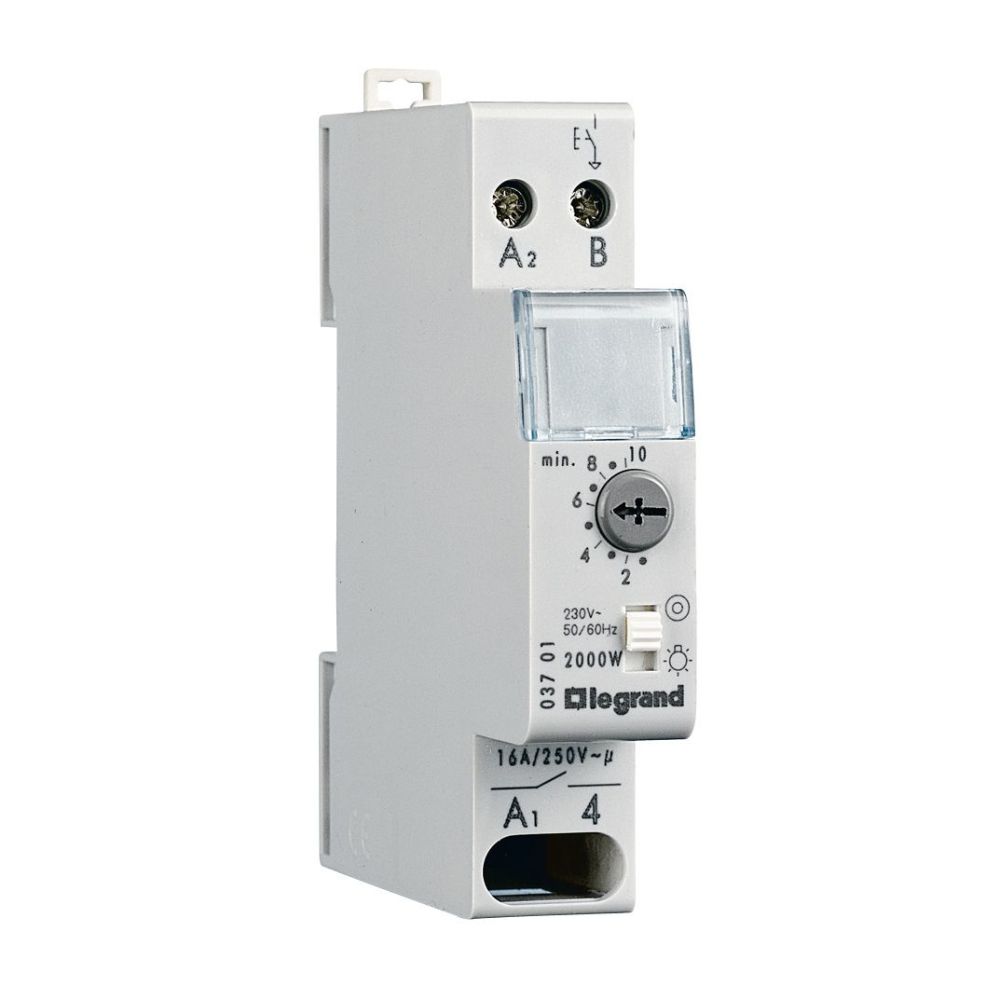

Legrand 003701 Stair light timer REX EMPLUS electronic
|
37,10 EUR |
|||||||||||
|
( 44,15 EUR incl. VAT ) ≈ £31.05 | ≈ $40.77 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |||||||||||
| In Stock: >25 pieces | |||||||||||
| Lieske Part No.: | 901368 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 003701 | ||||||||||
| UPC/EAN: | 4010957037017 | ||||||||||
| Weight: | 0.244 kg | ||||||||||
| Type: | 003701 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Legrand 003701:
Applications
This stairway light timer switch is designed for use in residential and commercial buildings where automatic, time-controlled lighting is required. It is particularly suitable for corridors, stairwells, basements or other areas where lighting should be switched off automatically after a set time to save energy. The automatic 3-/4-wire connection recognition detects the connection type automatically, simplifying installation. The device width is 1 module unit at 17.5 mm, corresponding to a total width of 76 mm, enabling mounting in standard installation rails.
Functions and Equipment in Detail
The device features an electronic time regulator adjustable within a range of 0.5 to 10 minutes. The time delay is implemented via a zero-crossing switch, which synchronizes switching operations with the zero-crossing of the alternating voltage to minimize inrush currents and light flicker. An integrated manual switch allows switching between timed lighting (time-controlled) and continuous lighting (continuously on), enabling manual override of the time control if needed. The circuit is always reactivatable, meaning lighting can be reactivated at any time during operation without restarting the preset time.
Technology Explained Simply
The zero-crossing circuit ensures that the switch turns the load on or off only at the points where the alternating voltage reaches zero. This reduces electrical interference and extends the life of the switching contacts. The automatic detection of 3- or 4-wire connection type simplifies installation, as no manual setting is required. The protection class IP 20 means the device is protected against contact with fingers or similar objects, but not against water or dust — thus it is intended for indoor use only.
Compatibility and Accessories
The switch is designed for mounting on top-hat profile rails in accordance with EN 60715 and is secured using a snap-in quick fastening. This enables fast and secure mounting in standard installation rails. The device includes a labelling window for individual identification of its function. It is designed for use in electrical distributions operating at 230 V AC.
Mounting and Installation
Mounting is done by simply snapping into a top-hat profile rail. The snap-in quick fastening ensures secure anchoring without additional tools. The automatic detection of connection type (3- or 4-wire) reduces installation complexity. The device dimensions are 76 mm (width), 94 mm (depth), and 20 mm (height), with a weight of 70 g. The mounting width corresponds to one module unit of 17.5 mm, which is standard in installation systems.
Operational Advantages
The stairway light timer switch provides reliable and energy-efficient control of lighting systems. The extremely quiet switching ensures disturbance-free operation, which is particularly important in residential and office buildings. The ability to reactivate lighting at any time increases user-friendliness. The integrated manual switch function allows flexible use, e.g. during prolonged stays in a lit area. The zero-crossing circuit protects switching contacts and extends the device's lifespan.
Protection Class IP 20
Protection class IP 20 means the device is protected against contact with fingers or similar objects, but not against water or dust. It is therefore intended exclusively for use in dry indoor environments.
Supply Voltage 230 V 50/60 Hz
The device is designed for use in 230 V networks, common in Europe and many other regions. The frequency of 50/60 Hz allows use in various countries with different network frequencies.
Electronic Time Regulator
The electronic time regulator allows precise adjustment of the delay time between 0.5 and 10 minutes. The time delay is controlled by the zero-crossing circuit, ensuring clean and disturbance-free switching.
Snap-in Quick Fastening
The snap-in quick fastening enables easy and secure mounting on top-hat profile rails in accordance with EN 60715, without requiring additional tools or screws.
Labelling Window
The integrated labelling window allows individual identification of the device to clearly indicate its function in the distribution enclosure.
Automatic 3-/4-Wire Connection Recognition
The automatic detection of connection type (3- or 4-wire) simplifies installation, as no manual setting is required. The device automatically adapts to the existing circuit configuration.
Manual Switch for Switching
The integrated manual switch enables switching between timed lighting (time-controlled) and continuous lighting (continuously on), allowing flexible use.
Maximum Neon Lamp Current 25 mA
The maximum neon lamp current of 25 mA allows use with low auxiliary circuits, such as neon lamps in switch combinations, without overloading the device.
Zero-Crossing Circuit
The zero-crossing circuit ensures that the switch turns the load on or off only at the points where the alternating voltage reaches zero. This reduces electrical interference and extends the life of the switching contacts.
Device Width 1 Module Unit at 17.5 mm
The device width corresponds to one module unit of 17.5 mm, equivalent to a total width of 76 mm, enabling mounting in standard installation rails.
Indoor Use Only
Due to protection class IP 20, the device is intended exclusively for use in dry indoor environments. It is not suitable for outdoor use or in damp environments.
Reliable Control
The stairway light timer switch provides reliable and energy-efficient control of lighting systems. The extremely quiet switching ensures disturbance-free operation, which is particularly important in residential and office buildings. The ability to reactivate lighting at any time increases user-friendliness. The integrated manual switch function allows flexible use, e.g. during prolonged stays in a lit area. The zero-crossing circuit protects switching contacts and extends the device's lifespan.
Dimensions and Weight
The dimensions are 76 mm (width), 94 mm (depth), and 20 mm (height), with a weight of 70 g. These values correspond to the technical data and are relevant for mounting and positioning in the distribution enclosure.
Mounting on Top-Hat Profile Rail
Mounting is done by snapping into a top-hat profile rail in accordance with EN 60715. The snap-in quick fastening ensures secure anchoring without additional tools.
Energy Efficiency
Energy is saved through automatic switching off of lighting after a preset time. This function is particularly useful in areas with occasional traffic, such as stairwells or corridors.
User-Friendliness
The combination of automatic time control, manual override via the manual switch, and the ability to reactivate lighting at any time increases user-friendliness. Installation is simplified by automatic connection type recognition and snap-in quick fastening.
Protection Class IP 20
Protection class IP 20 means the device is protected against contact with fingers or similar objects, but not against water or dust. It is therefore intended exclusively for use in dry indoor environments.
Supply Voltage 230 V 50/60 Hz
The device is designed for use in 230 V networks, common in Europe and many other regions. The frequency of 50/60 Hz allows use in various countries with different network frequencies.
Electronic Time Regulator
The electronic time regulator allows precise adjustment of the delay time between 0.5 and 10 minutes. The time delay is controlled by the zero-crossing circuit, ensuring clean and disturbance-free switching.
Snap-in Quick Fastening
The snap-in quick fastening enables easy and secure mounting on top-hat profile rails in accordance with EN 60715, without requiring additional tools or screws.
Labelling Window
The integrated labelling window allows individual identification of the device to clearly indicate its function in the distribution enclosure.
Automatic 3-/4-Wire Connection Recognition
The automatic detection of connection type (3- or 4-wire) simplifies installation, as no manual setting is required. The device automatically adapts to the existing circuit configuration.
Manual Switch for Switching
The integrated manual switch enables switching between timed lighting (time-controlled) and continuous lighting (continuously on), allowing flexible use.
Maximum Neon Lamp Current 25 mA
The maximum neon lamp current of 25 mA allows use with low auxiliary circuits, such as neon lamps in switch combinations, without overloading the device.
Zero-Crossing Circuit
The zero-crossing circuit ensures that the switch turns the load on or off only at the points where the alternating voltage reaches zero. This reduces electrical interference and extends the life of the switching contacts.
Device Width 1 Module Unit at 17.5 mm
The device width corresponds to one module unit of 17.5 mm, equivalent to a total width of 76 mm, enabling mounting in standard installation rails.
Indoor Use Only
Due to protection class IP 20, the device is intended exclusively for use in dry indoor environments. It is not suitable for outdoor use or in damp environments.
Reliable Control
The stairway light timer switch provides reliable and energy-efficient control of lighting systems. The extremely quiet switching ensures disturbance-free operation, which is particularly important in residential and office buildings. The ability to reactivate lighting at any time increases user-friendliness. The integrated manual switch function allows flexible use, e.g. during prolonged stays in a lit area. The zero-crossing circuit protects switching contacts and extends the device's lifespan.
Dimensions and Weight
The dimensions are 76 mm (width), 94 mm (depth), and 20 mm (height), with a weight of 70 g. These values correspond to the technical data and are relevant for mounting and positioning in the distribution enclosure.
Mounting on Top-Hat Profile Rail
Mounting is done by snapping into a top-hat profile rail in accordance with EN 60715. The snap-in quick fastening ensures secure anchoring without additional tools.
Energy Efficiency
Energy is saved through automatic switching off of lighting after a preset time. This function is particularly useful in areas with occasional traffic, such as stairwells or corridors.
User-Friendliness
The combination of automatic time control, manual override via the manual switch, and the ability to reactivate lighting at any time increases user-friendliness. Installation is simplified by automatic connection type recognition and snap-in quick fastening.
| Weight & dimensions | |
| Width | 76 mm |
| Depth | 94 mm |
| Height | 20 mm |
| Weight | 70 g |
| Quantity per pack | 1 pc(s) |
