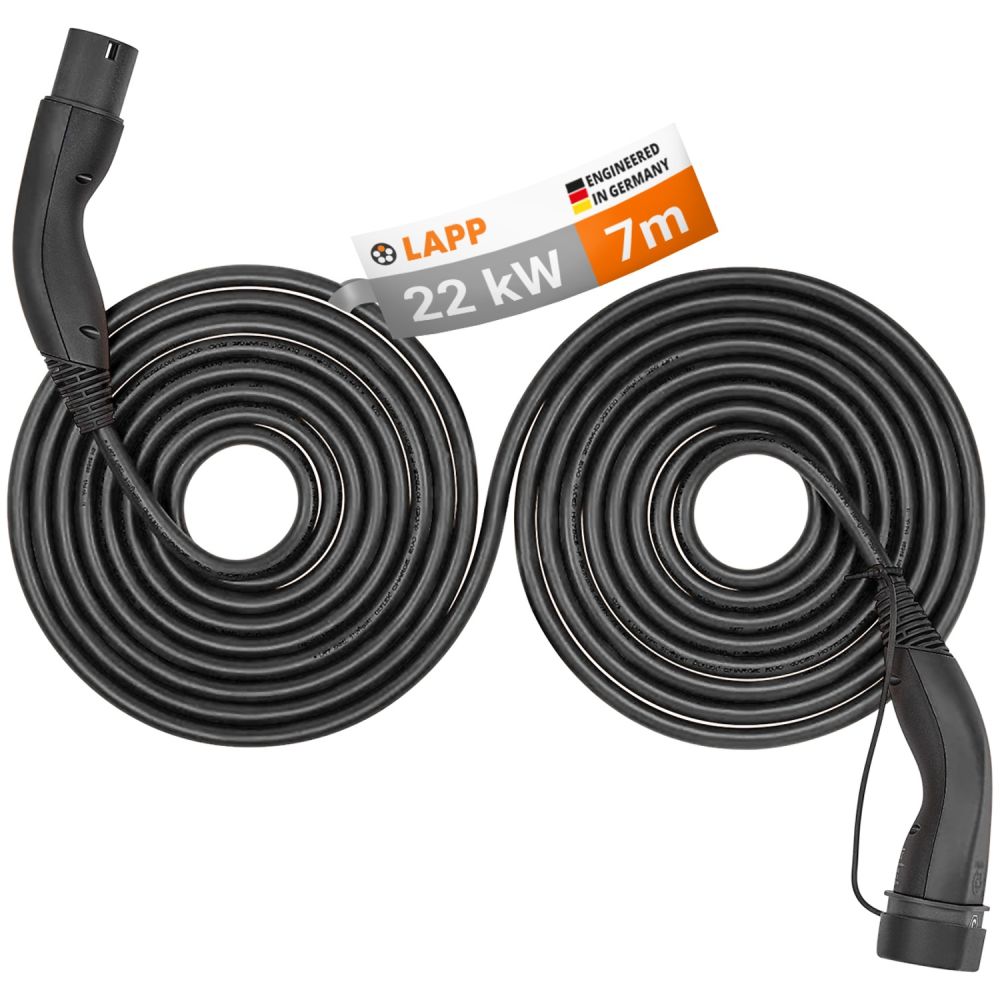

Lapp 75750 HELIX self-retracting charging cable Type 2, up to 22 kW, 7 m, black, 32 A, 3-phase, for hybrid and electric vehicles with Type 2 connector (5555934054)

Your rating:
Average rating
product review for Lapp 75750 HELIX self-retracting charging cable Type 2, up to 22 kW, 7 m, black, 32 A, 3-phase, for hybrid and electric vehicles with Type 2 connector (5555934054)
( 0 / 5 ) 0 ratings
Lapp 75750
This image may differ from the desired article.
Lapp 75750Lapp 75750Lapp 75750Lapp 75750Lapp 75750Lapp 75750
218,45 EUR
( 259,96 EUR incl. VAT )
≈ £182.84  |  ≈ $240.08
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
In Stock: >10 pieces
1x Lapp 75750 HELIX self-retracting charging cable Type 2, up to 22 kW, 7 m, black, 32 A, 3-phase, for hybrid and electric vehicles with Type 2 connector (5555934054)
Lieske Part No.:122277
Mfg Part No: 75750
UPC/EAN: 4064729226222
Weight:3.582 kg
Type:HELIX Selbstaufrollendes Ladekabel Typ 2, bis zu 2

Product information for Lapp 75750:

The Lapp HELIX self-retracting charging cable Type 2, type 75750, is a Type 2 charging cable for use in the field of E-Mobility. It is used to connect an electric vehicle to a charging station, wallbox or charging pillar, enabling charging of plug-in hybrids (PHEV) and battery electric vehicles (BEV). The cable is designed for operation in charging mode Mode 3, which includes communication between vehicle and charging system via a control line, allowing the charging process to be automatically started and stopped.

Applications
This charging cable is designed for use in private and public charging environments. It is suitable for both home charging stations and public charging pillars. The maximum charging power is up to 22 kW, achieved with a 3-phase supply. Additionally, the cable supports 1-phase charging with power ratings of 7.4 kW and 3.7 kW, increasing flexibility with different power supplies. The rated voltage is 440 V (AC), and the maximum current load capacity is 32 A. The cable length is 7 m, providing sufficient reach for most applications.

Functions and equipment in detail

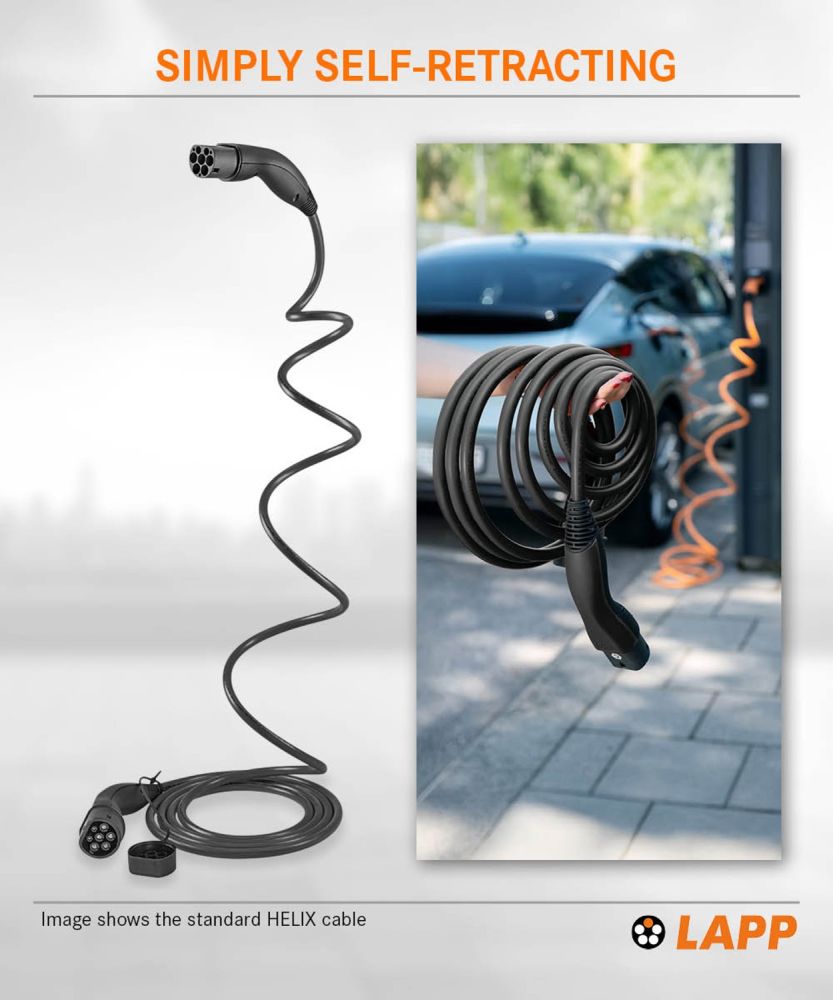

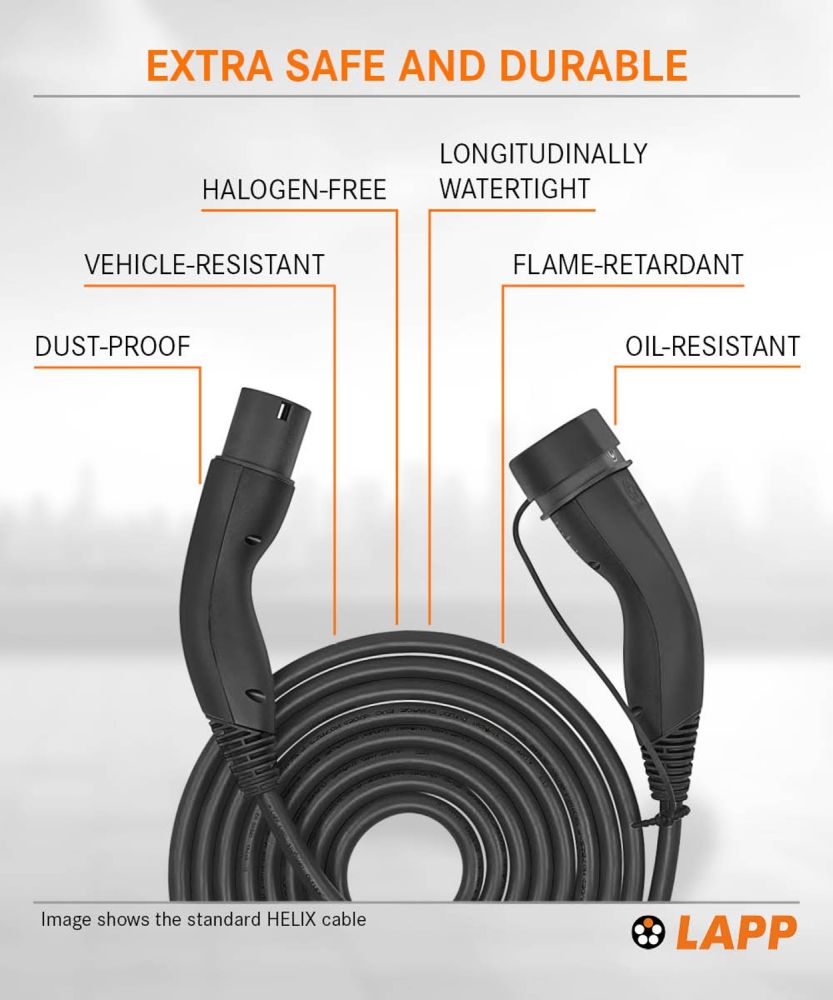

A central feature of the cable is the patented double helix system, which allows it to retract in a spiral shape into two spirals after use. This self-retracting design ensures compact storage without tangling. The two helix spirals can be stacked space-savingly on top of each other, simplifying storage and handling. The cable construction is fitted with an ÖLFLEX®CHARGE sheath, which is oil-resistant and longitudinally watertight. The operating temperature ranges from -40 °C to 50 °C, enabling use in various climatic conditions.

Technology explained simply

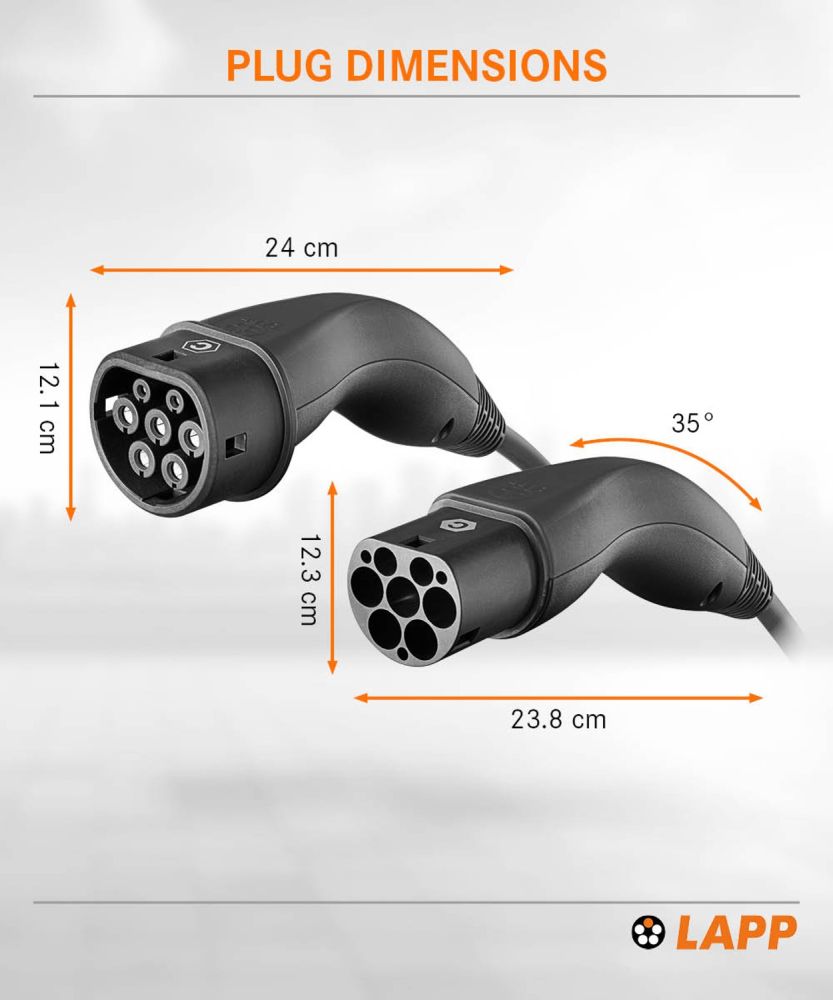

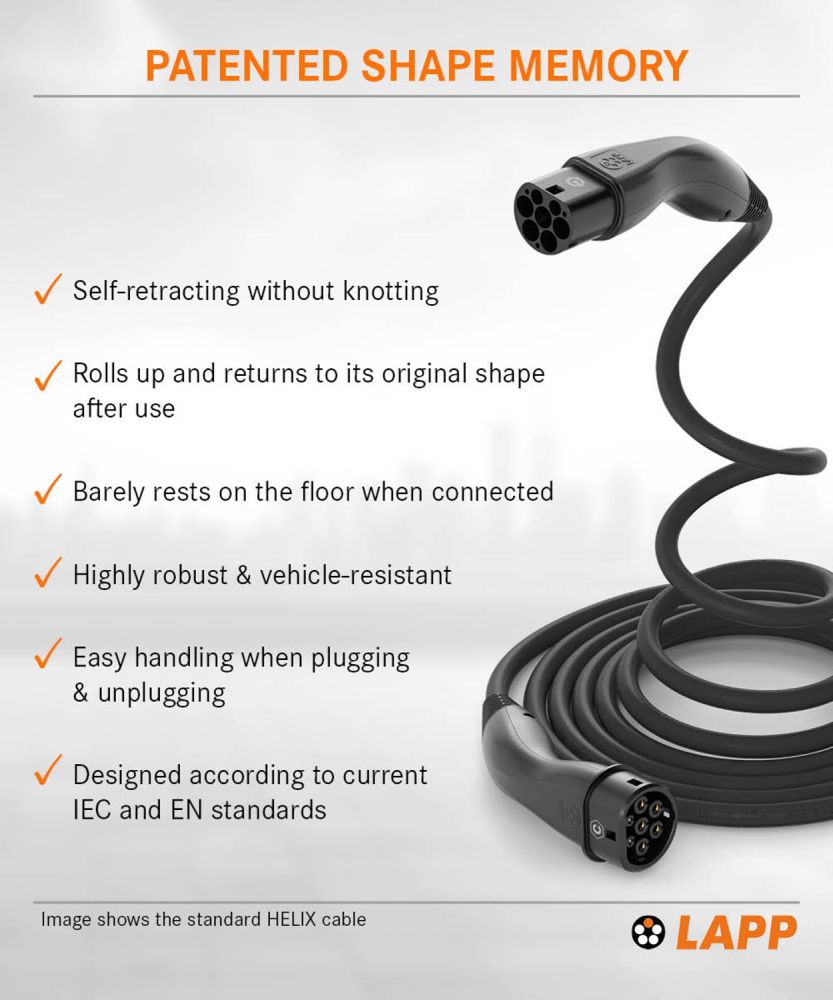

The cable features a Type 2 coupling on the vehicle side and a Type 2 plug on the power source side. The plug contacts are silver-plated and corrosion-resistant, increasing the longevity and reliability of the connection. The protection class IP55 ensures high moisture protection, allowing the cable to be used outdoors. The robust construction is run-over resistant, increasing mechanical durability. The shape memory function of the HELIX cable ensures that it automatically returns to its spiral shape after being pulled out, simplifying handling.

Compatibility and accessories
The charging cable is compatible with European electric vehicles and charging pillars that support the Type 2 connection. It is also compatible with CCS connectors (Combo 2), enabling use with vehicles featuring a combined charging connector. The cable is manufactured in accordance with valid IEC and EN standards, ensuring safety and reliability. VDE certification confirms compliance with German safety standards.

Installation and mounting
Installation is carried out by simply connecting the coupling to the vehicle and the plug to the charging station. No additional mounting work or tools are required. The ergonomic, solid rubberized grip design facilitates insertion and removal. A protective cap for the Type 2 coupling is integrated to protect contacts from dirt and moisture.

Operational advantages
The HELIX charging cable offers high operational safety due to its robust construction and corrosion-resistant contacts. The self-retracting function reduces the risk of tangling and saves space during storage. Compatibility with various charging powers (3-phase up to 22 kW, 1-phase up to 7.4 kW) increases flexibility. The operating temperature range of -40 °C to 50 °C allows use in different environments. The IP55 protection class provides high protection against moisture, increasing safety for outdoor use.

The markings WEEE and CE confirm compliance with European environmental and safety regulations. The cable is packaged in a Retail Box, facilitating presentation and storage.

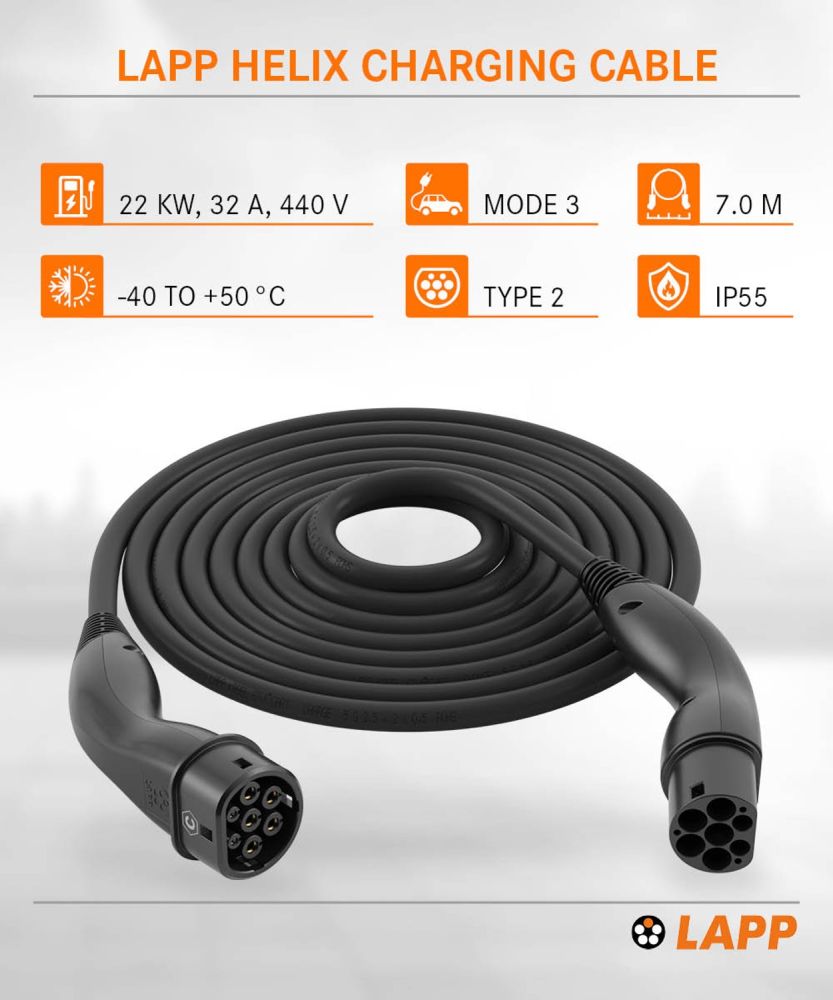

Technical data
Connection, typeType 2 coupling
Connection 2, typeType 2 plug
Cable jacket, materialÖLFLEX®CHARGE
Cable typeHELIX cable
Colour versionBlack
ColourBlack
Special featureShape memory thanks to HELIX cable, solid rubberized, ergonomic handle design, protective cap for TYPE 2 connector (vehicle side), VDE-certified, silver-plated, corrosion-resistant contacts
Packaging typeRetail box
Charging power up to22 kW
Charging modeMode 3
Nominal voltage440 V (AC)
Number of phases3
Max. current rating32 A
Cable length7 m
MarkingsWEEE, CE
