Lapp 73028500 EPIC SIGNAL M23 17E SLM (5) insert 17p right-hand rotating with pin solder

Your rating:
Average rating
product review for Lapp 73028500 EPIC SIGNAL M23 17E SLM (5) insert 17p right-hand rotating with pin solder
( 4.2 / 5 ) 10 ratings

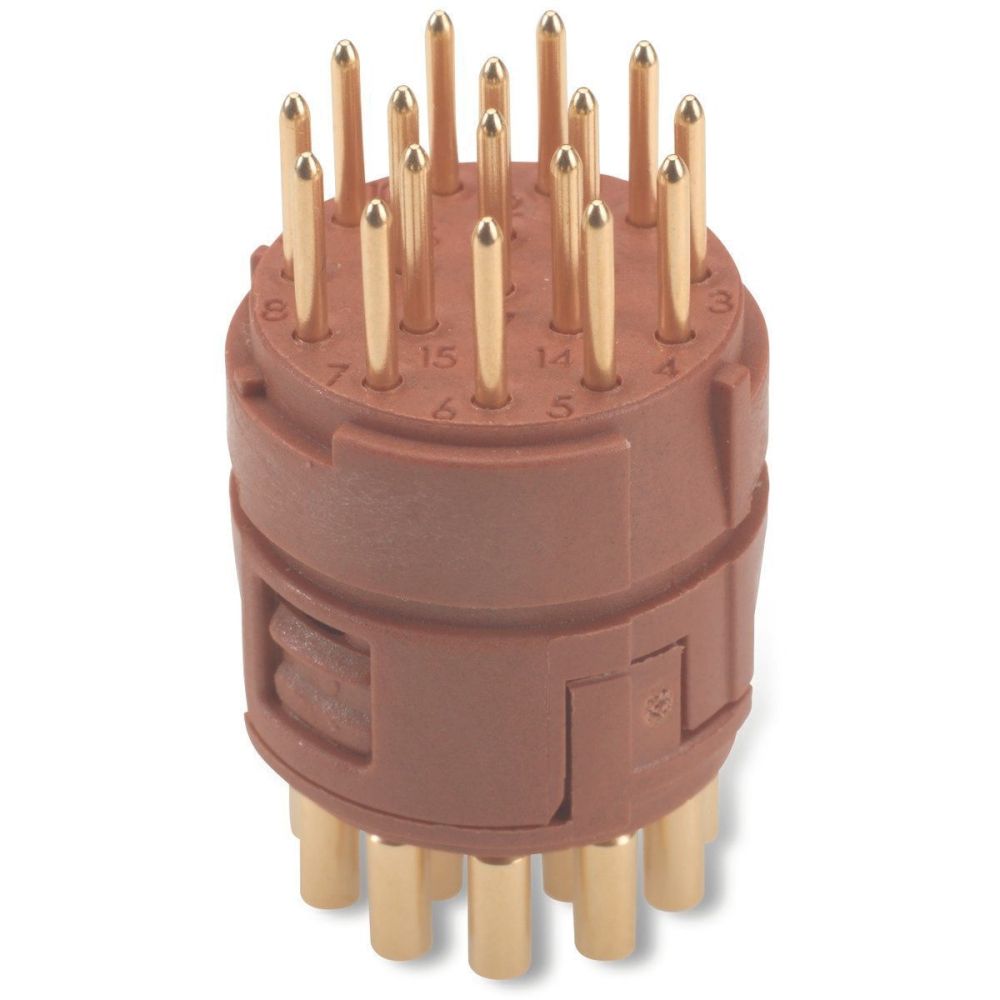

Lapp 73028500
This image may differ from the desired article.
Lapp 73028500Lapp 73028500
51,58 EUR 51,93 EUR
( 61,38 EUR incl. VAT )
≈ £43.17  |  ≈ $56.69
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
Sales unit: 5 pieces
1x Lapp 73028500 EPIC SIGNAL M23 17E SLM (5) insert 17p right-hand rotating with pin solder
Datasheet:file_download Download
Lieske Part No.:439307
Mfg Part No: 73028500
UPC/EAN: 4044773622829
Weight:0.123 kg
Type:EPIC M23 17E SLM (5) EINSATZ
Graduated prices net
From piecesPrice per pieces
650,03 EUR
1248,49 EUR
2446,94 EUR
3645,39 EUR

Product information for Lapp 73028500:

Insert with solder connection EPIC® SIGNAL M23 17E SLM (5), Insert with solder connection, M 23 signal, pin, Number of contacts: 17, For cross-section (min./max.): 0.08mm² - 1mm², , Areas of application: Plant engineering, apparatus construction, measurement, control and regulation technology, Benefits: Universal further processing of the M23 inserts through different packaging units Fully equipped with suitable solder contacts or unequipped for individual assembly with solder or crimp contacts

The item price shown refers to 5 pieces Lapp 73028500
Certifications
EAC-certifiedNot required
EAC certification numberОтказное письмо № 39
UR certificationaccording to UL 2238 (CCN: CYJV2 / e-file number: E249137)
UL category control numberCYJV2
cUR certificationaccording to CSA C22.2 No. 182.3 (CCN: CYJV8 / e-file number: E249137)
cUR category control numberCYJV8
VDE registration numberC024
Product standard according to IECIEC 61984
CE markingyes
UR recognisedyes
cUR recognisedyes
CSA certifiedno
VDE certifiedyes
Electrical characteristics
Rated impulse voltage0.8 kV AC rms / DC according to IEC 61984
Rated voltage50 V AC rms / DC according to UL, 50 V AC rms / DC according to CSA, 50 V AC rms / DC according to IEC
Rated current7 A according to UL, 6.1 A according to CSA, 7 A according to IEC
Overvoltage categoryIII
Max. contact resistance4 mΩ
General information
BrandEPIC®
Product typeInsert with solder termination
Scope of deliveryincluding contacts
Weight0.012 kg
Delivery Unit5
Contacts includedyes
Product characteristics
Min. number of insertion cycles100
Pollution degree3
Operating temperature min. static (no plugging or unplugging)-40 °C
Operating temperature min.-25 °C
Operating temperature max.125 °C
Halogen-freeno
Product design
Number of contacts17
Number of power contacts0
Number of PE contacts0
Number of signal contacts17
Connector diameter16.7 mm
Total length15.8 mm
Contact variantPin
Connector formatM 23 signal
Connector typePlug
Direction of rotationE-part (rotating clockwise)
Conductor connection typeSolder termination
Stripping length, signal contact4 mm
Min. connectable conductor cross-section AWG32 AWG
Max. connectable conductor cross-section AWG18 AWG
Min. connectable conductor cross-section (mm2)0.08 mm²
Max. connectable conductor cross-section (mm2)1 mm²
Contact materialBrass
Contact material, short formCuZn
Contact coating materialGold-plated
Contact coating material, short formAu
Material contact insertPolyamide
Contact insert material, short formPA
Colourred/brown


Product data sheet
Datasheet for Lapp 73028500, EAN: 4044773622829

Questions & answers

What is the delivery time of Lapp 73028500 EPIC SIGNAL M23 17E SLM (5) insert 17p right-hand rotating with pin solder ?

The article Lapp 73028500 EPIC SIGNAL M23 17E SLM (5) insert 17p right-hand rotating with pin solder is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Lapp 73028500 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Lapp 73028500 EPIC SIGNAL M23 17E SLM (5) insert 17p right-hand rotating with pin solder always at the best possible price. We can give you a discount of 2% on Lapp 73028500 EPIC SIGNAL M23 17E SLM (5) insert 17p right-hand rotating with pin solder if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Lapp 73028500 EPIC SIGNAL M23 17E SLM (5) insert 17p right-hand rotating with pin solder we can offer you a price of 50,03 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

How many units does the article contain?

Lapp 73028500 EPIC SIGNAL M23 17E SLM (5) insert 17p right-hand rotating with pin solder is offered by us in a sales unit of 5 pieces If you need a larger quantity, you can contact us at any time. We will make a special offer for you
