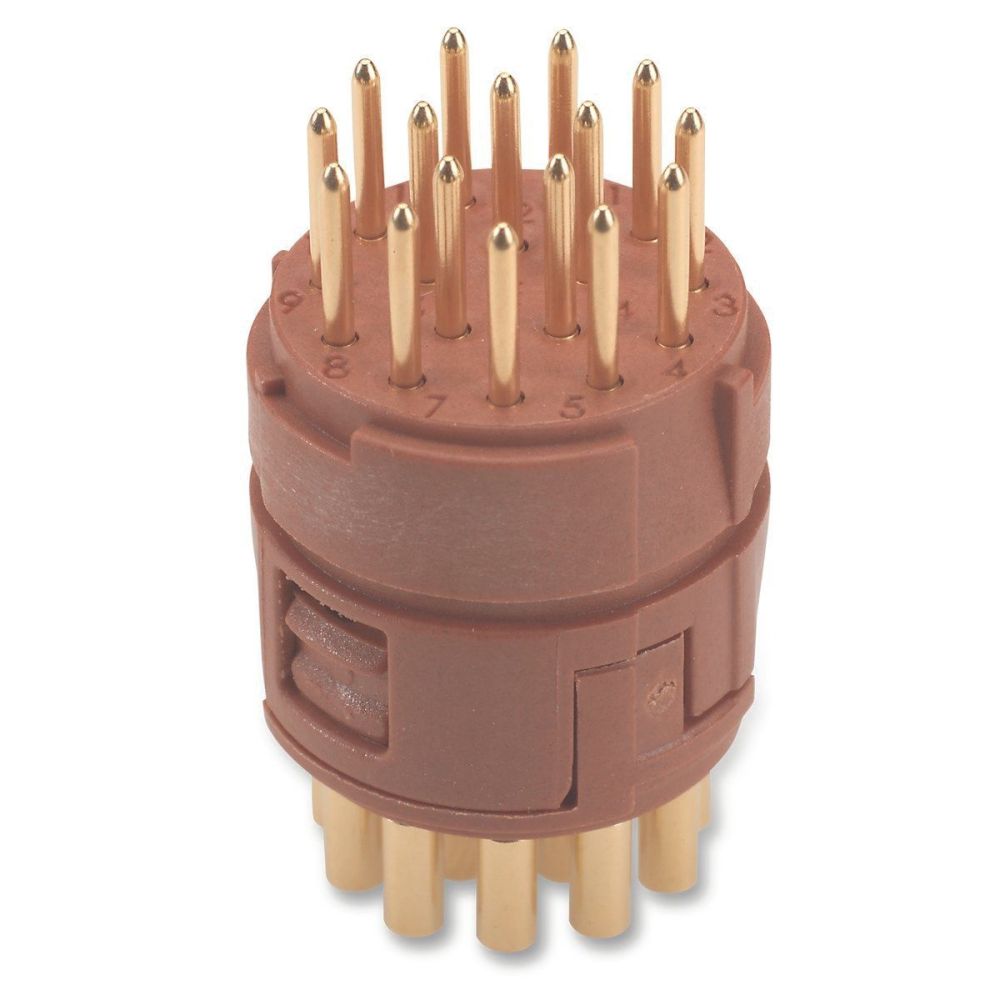

Lapp 73002708 EPIC SIGNAL M23 16E SLM (5) insert 16p right-hand rotating pin solder
|
49,49 EUR 49,85 EUR |
|
|
( 58,89 EUR incl. VAT ) ≈ £41.42 | ≈ $54.39 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Sales unit: 5 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 330327 |
| Mfg Part No: | 73002708 |
| UPC/EAN: | 4044773624533 |
| Weight: | 0.123 kg |
| Type: | EPIC M23 16E SLM (5) EINSATZ |
Product information for Lapp 73002708:
The item price shown refers to 5 pieces Lapp 73002708
| Certifications | |
| EAC-certified | Not required |
| EAC certification number | Отказное письмо № 39 |
| UR certification | according to UL 2238 (e-file number: E249137) |
| UL category control number | CYJV2 |
| cUR certification | according to CSA C22.2 No. 182.3 |
| cUR category control number | CYJV8 |
| VDE registration number | C024 |
| Product standard according to IEC | IEC 61984 |
| CE marking | |
| UR recognised | |
| cUR recognised | |
| CSA certified | |
| VDE certified | |
| Electrical characteristics | |
| Rated impulse voltage | 1.5 kV AC rms / DC according to IEC 61984 |
| Rated voltage | 100 V AC rms / DC according to UL, 100 V AC rms / DC according to CSA, 100 V AC rms / DC according to IEC |
| Rated current | 7 A according to UL, 6.1 A according to CSA, 7 A according to IEC |
| Overvoltage category | III |
| Max. contact resistance | 4 mΩ |
| General information | |
| Brand | EPIC® |
| Product type | Insert with solder termination |
| Scope of delivery | including contacts |
| Weight | 0.012 kg |
| Delivery Unit | 5 |
| Contacts included | |
| Product characteristics | |
| Min. number of insertion cycles | 100 |
| Pollution degree | 3 |
| Operating temperature min. static (no plugging or unplugging) | -40 °C |
| Operating temperature min. | -25 °C |
| Operating temperature max. | 125 °C |
| Halogen-free | |
| Product design | |
| Number of contacts | 16 |
| Number of power contacts | 0 |
| Number of PE contacts | 0 |
| Number of signal contacts | 16 |
| Connector diameter | 16.7 mm |
| Total length | 15.8 mm |
| Contact variant | Pin |
| Connector format | M 23 signal |
| Connector type | Plug |
| Direction of rotation | E-part (rotating clockwise) |
| Conductor connection type | Solder termination |
| Stripping length, signal contact | 4 mm |
| Min. connectable conductor cross-section AWG | 32 AWG |
| Max. connectable conductor cross-section AWG | 18 AWG |
| Min. connectable conductor cross-section (mm2) | 0.08 mm² |
| Max. connectable conductor cross-section (mm2) | 1 mm² |
| Contact material | Brass |
| Contact material, short form | CuZn |
| Contact coating material | Gold-plated |
| Contact coating material, short form | Au |
| Material contact insert | Polyamide |
| Contact insert material, short form | PA |
| Colour | red/brown |
Questions & answers
What is the delivery time of Lapp 73002708 EPIC SIGNAL M23 16E SLM (5) insert 16p right-hand rotating pin solder ?
The article Lapp 73002708 EPIC SIGNAL M23 16E SLM (5) insert 16p right-hand rotating pin solder is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Lapp 73002708 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Lapp 73002708 EPIC SIGNAL M23 16E SLM (5) insert 16p right-hand rotating pin solder always at the best possible price. We can give you a discount of 2% on Lapp 73002708 EPIC SIGNAL M23 16E SLM (5) insert 16p right-hand rotating pin solder if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
Lapp 73002708 EPIC SIGNAL M23 16E SLM (5) insert 16p right-hand rotating pin solder is offered by us in a sales unit of 5 pieces If you need a larger quantity, you can contact us at any time. We will make a special offer for you
