Lapp 7038865/100 UNITRONIC SENSOR FD LI9Y11Y 4x0.34 100 m sensor/actuator PUR black

Your rating:
Average rating
product review for Lapp 7038865/100 UNITRONIC SENSOR FD LI9Y11Y 4x0.34 100 m sensor/actuator PUR black
( 4.7 / 5 ) 20 ratings
Lapp 7038865/100

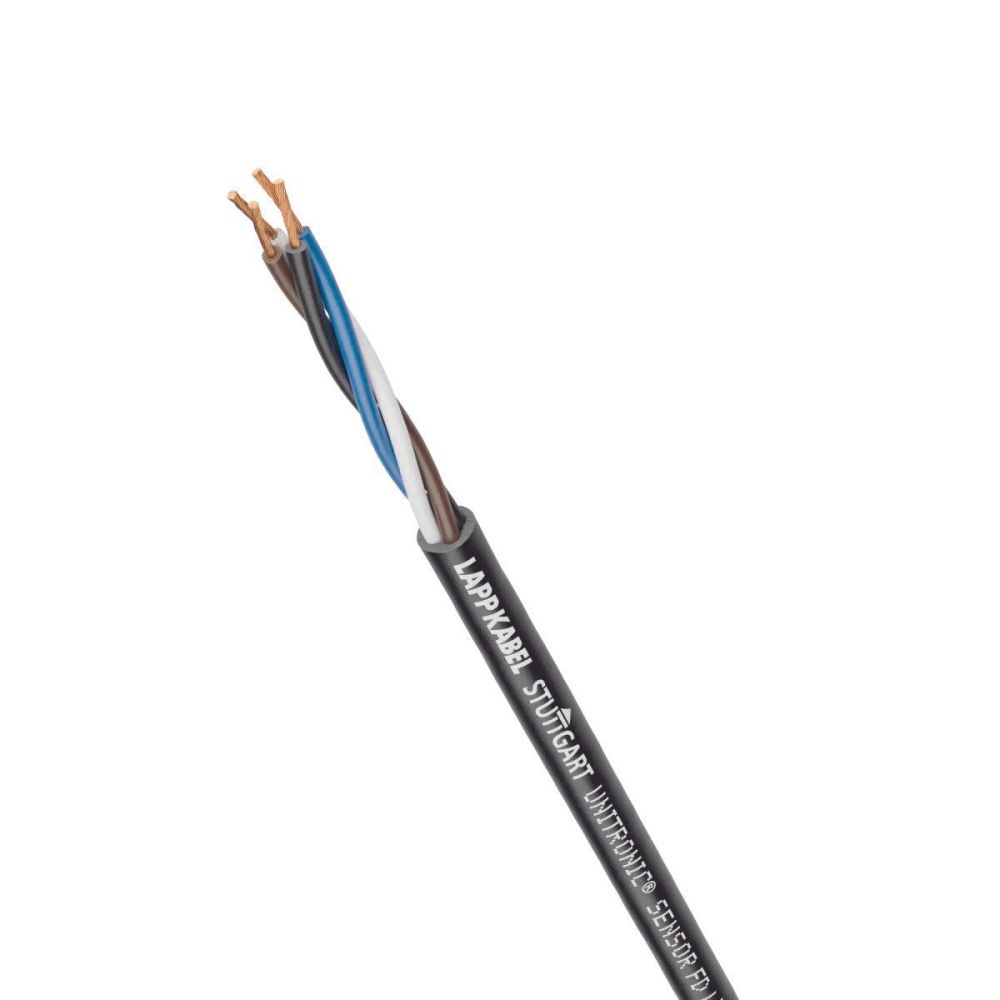

This image may differ from the desired article.
Lapp 7038865/100Lapp 7038865/100
154,48 EUR
incl. 13,80 EUR copper surcharge
( 183,83 EUR incl. VAT )
≈ £129.30  |  ≈ $169.77
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
Sales unit: 100 meters
In Stock: >5 meters
1x Lapp 7038865/100 UNITRONIC SENSOR FD LI9Y11Y 4x0.34 100 m sensor/actuator PUR black
Lieske Part No.:477400
Mfg Part No: 7038865/100
UPC/EAN: 4044774758152
Weight:3.2 kg
Type:UNITRONIC SENSOR FD UL-Li9Y11Y 4x0,34

Product information for Lapp 7038865/100:

The Lapp UNITRONIC SENSOR FD Li9Y11Y 4x0.34 is a sensor/actuator cable, specifically designed for use in moving machine parts and cable carriers. With a PUR outer sheath and a highly flexible cable construction, it is suitable for permanent, dynamic movements in industrial applications. The cable is black and offers high mechanical durability, making it suitable for use in harsh, oily, and moist environments. The construction allows for compact installation, facilitating integration into existing machine concepts. The 'FD-optimised' variant features a particularly small outer diameter due to a thinner outer sheath, reducing space requirements and increasing flexibility.

Applications
The cable is intended for use in moving machine parts, such as in cable carriers, robotic systems, or CNC machines. It is suitable for dry, moist, harsh, and oily environments, with the PUR outer sheath being resistant to mineral oil-based lubricants. Due to its chemical resistance and mechanical robustness, it can also be used outdoors, provided temperature limits are observed. The UL certification enables use in the North American market.

Functions and Features in Detail
The PUR outer sheath is abrasion-resistant, cut-resistant, and crack-resistant, extending the cable's lifespan under high mechanical stress. The cable is designed for continuous movement and offers high flexibility, suitable for applications with frequent bending and torsional loads. The 'FD-optimised' variant features a reduced outer diameter, facilitating installation in tight space conditions. The cable is available in a length of 100 metres.

Technology Explained Simply
The designation Li9Y11Y describes the cable's construction: it is a data cable with a PUR outer sheath (Y) and an internal protective layer material (Li). The designation 4x0.34 indicates that the cable contains four individual conductors, each with a cross-section of 0.34 mm². The construction enables high mechanical stability and flexibility. The 'FD-optimised' variant is specifically designed for use in cable carriers and moving installations, with the thin outer sheath minimising the diameter. The cable is unshielded and executed as 'FD-optimised', meaning it is suitable for use in environments with low electromagnetic interference.

Compatibility and Accessories
The cable is designed for use in industrial control and sensor systems and can be connected with standard connectors and cable glands. The UL certification (cUL listed) enables use in the North American region.

Installation and Mounting
The cable can be installed in cable carriers, moving machine parts, and other dynamic applications. Due to its compact design and flexible construction, mounting is also possible in tight space conditions. Installation is typically done by wiring with suitable connectors or cable glands. The mechanical robustness of the PUR sheath facilitates handling during installation.

Operational Advantages
The cable offers high service life and reliability under high mechanical stress. Chemical resistance to mineral oil-based lubricants and the abrasion resistance of the PUR sheath reduce maintenance frequency. The compact design and small outer diameter of the FD-optimised variant enable efficient space utilisation in machines. The UL certification extends the application range to the North American market.

The item price shown refers to 100 meters Lapp 7038865/100
General
Cable typesensor/actuator cable
ConstructionLi9Y11Y
Number of cores4
Core cross section0,34 mm²
Outer sheath materialPUR
ColourBlack
Application typehighly flexible, continuously moving
Application rangeConveyor chain, moving machine parts
Chemical resistancemineral oil-based lubricants
Mechanical load capacityabrasion-, notch- and cut-resistant
CertificationcUL listed
VariantFD-optimized
Outer diametersmall


Please note...
This article contains a copper surcharge of 13,80 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990

Questions & answers

What is the delivery time of Lapp 7038865/100 UNITRONIC SENSOR FD LI9Y11Y 4x0.34 100 m sensor/actuator PUR black ?

The article Lapp 7038865/100 UNITRONIC SENSOR FD LI9Y11Y 4x0.34 100 m sensor/actuator PUR black is currently in stock

According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Lapp 7038865/100 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Lapp 7038865/100 UNITRONIC SENSOR FD LI9Y11Y 4x0.34 100 m sensor/actuator PUR black always at the best possible price. We can give you a discount of 2% on Lapp 7038865/100 UNITRONIC SENSOR FD LI9Y11Y 4x0.34 100 m sensor/actuator PUR black if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

How many units does the article contain?

Lapp 7038865/100 UNITRONIC SENSOR FD LI9Y11Y 4x0.34 100 m sensor/actuator PUR black is offered by us in a sales unit of 100 meters If you need a larger quantity, you can contact us at any time. We will make a special offer for you
