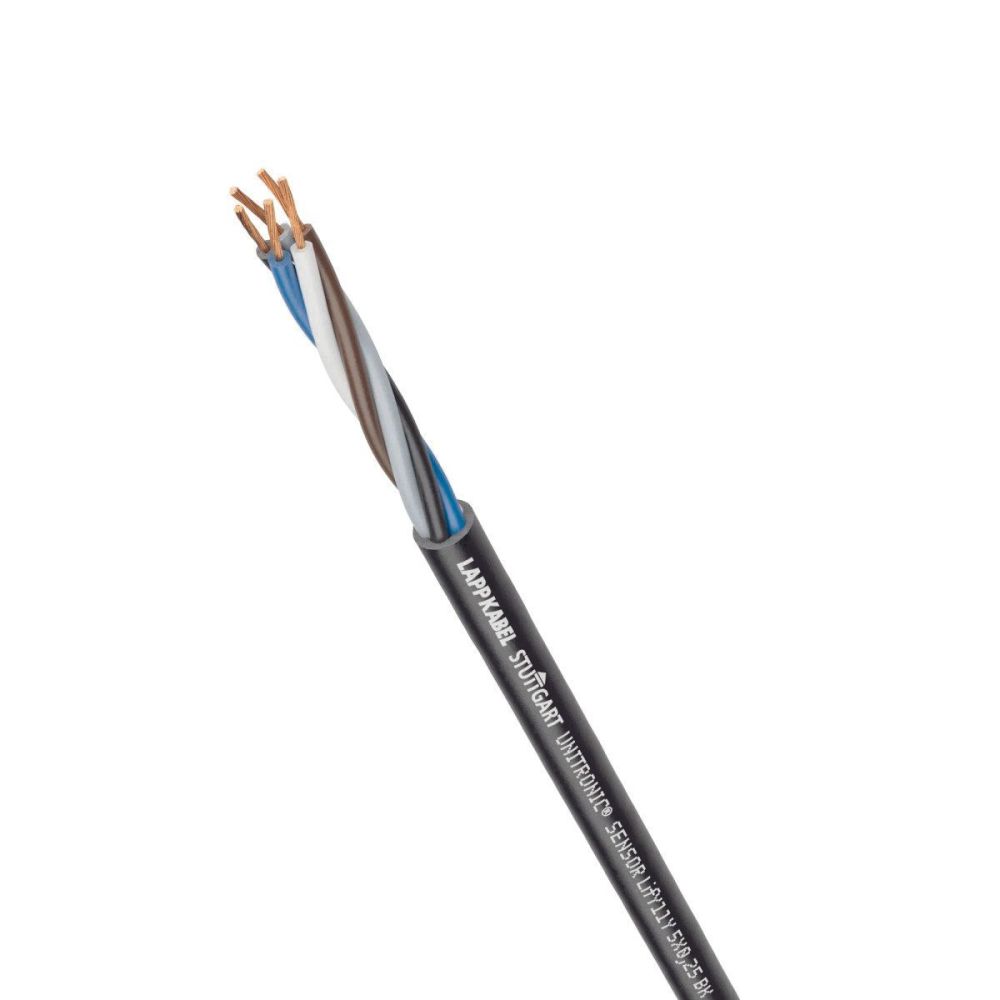

Lapp 7038862 UNITRONIC SENSOR LifY11Y 5x0.25 sensor/actuator cable PUR black
|
1,72 EUR |
|
|
incl. 0,13 EUR copper surcharge ( 2,05 EUR incl. VAT ) ≈ £1.44 | ≈ $1.89 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 278747 |
| Mfg Part No: | 7038862 |
| UPC/EAN: | 4044773314601 |
| Weight: | 0.03 kg |
| Type: | UNITRONIC SENSOR LifY11Y 5x0,25 BK |
Product information for Lapp 7038862:
| Certifications | |
| EAC certification number | ЕАЭС N RU Д-DE.АЮ64.В.00130/20 |
| CE marking | |
| EAC-certified | |
| UL recognized | |
| UL listed | |
| cUR recognised | |
| cUL listed | |
| CSA certified | |
| VDE certified | |
| Ecolab certified | |
| Electrical characteristics | |
| Maximum operating voltage (not for power transmission) | 300 V |
| Max. conductor resistance at 20°C | 79 Ω/km |
| General information | |
| Brand | UNITRONIC® |
| Product type | Sensor/actuator cable |
| Weight | 51 kg/km |
| Copper index | 12 kg/km |
| valid fieldbus or Ethernet system | Sensor/Actuator |
| Product characteristics | |
| Application area | Flexible |
| Minimum bending radius, stationary | 5 x outer diameter |
| Minimum bending radius in mm, fixed installation | 24.5 mm |
| Minimum bending radius, occasionally flexing | 10 x outer diameter |
| Minimum bending radius in mm, occasionally flexing | 49 mm |
| Temperature, fixed installation | -40 °C to 80 °C max. conductor temperature |
| Temperature, fixed installation min | -40 °C |
| Temperature, fixed installation max | 80 °C |
| Temperature, occasionally moved | -5 °C to 70 °C max. conductor temperature |
| Temperature, occasionally moved min | -5 °C |
| Temperature, occasionally moved max | 70 °C |
| Flame retardance according to | IEC 60332-2-2 |
| PWIS-free according to | VDMA 24364-B2-L |
| For permanent bending | |
| For torsional load | |
| Flame-retardant | |
| UV-resistant | |
| Halogen-free | |
| Oil-resistant | |
| PWIS-free | |
| Fast Connect (FC) cable | |
| Product design | |
| LiF fine-stranded cables | LiFY11Y |
| Cable dimensions | 5X0.25 |
| Nominal conductor cross-section (metric) | 0.25 mm² |
| Leading conductor cross-section | mm² |
| Conductor material | Bare copper |
| Conductor design | extra-fine wire |
| Number of cores | 5 |
| Nominal outer diameter | 4.9 mm |
| Cable shape | Round |
| Core insulation basic material | Polyvinylchloride |
| Core insulation basic material, short form | PVC |
| Basic material of outer sheath | Polyurethane |
| Basic material of outer sheath, short form | PUR |
| Outer sheath colour | black |
| Core identification | Colours |
| Conductor colour code | EN 60947-5-2 |
| Including protective earth | |
| Shielded | |
The final cable weight will be determined before invoicing. The calculation is based on the copper content and any additional weight due to drums, pallets, or outer packaging. Prices are subject to this subsequent calculation.
Please note that for cables, that are not in stock and must be produced, the manufacturer may need an order of a minimum length that can be 5-10km depending on cable type!
Questions & answers
What is the delivery time of Lapp 7038862 UNITRONIC SENSOR LifY11Y 5x0.25 sensor/actuator cable PUR black ?
The article Lapp 7038862 UNITRONIC SENSOR LifY11Y 5x0.25 sensor/actuator cable PUR black is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Lapp 7038862 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Lapp 7038862 UNITRONIC SENSOR LifY11Y 5x0.25 sensor/actuator cable PUR black always at the best possible price. We can give you a discount of 2% on Lapp 7038862 UNITRONIC SENSOR LifY11Y 5x0.25 sensor/actuator cable PUR black if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
