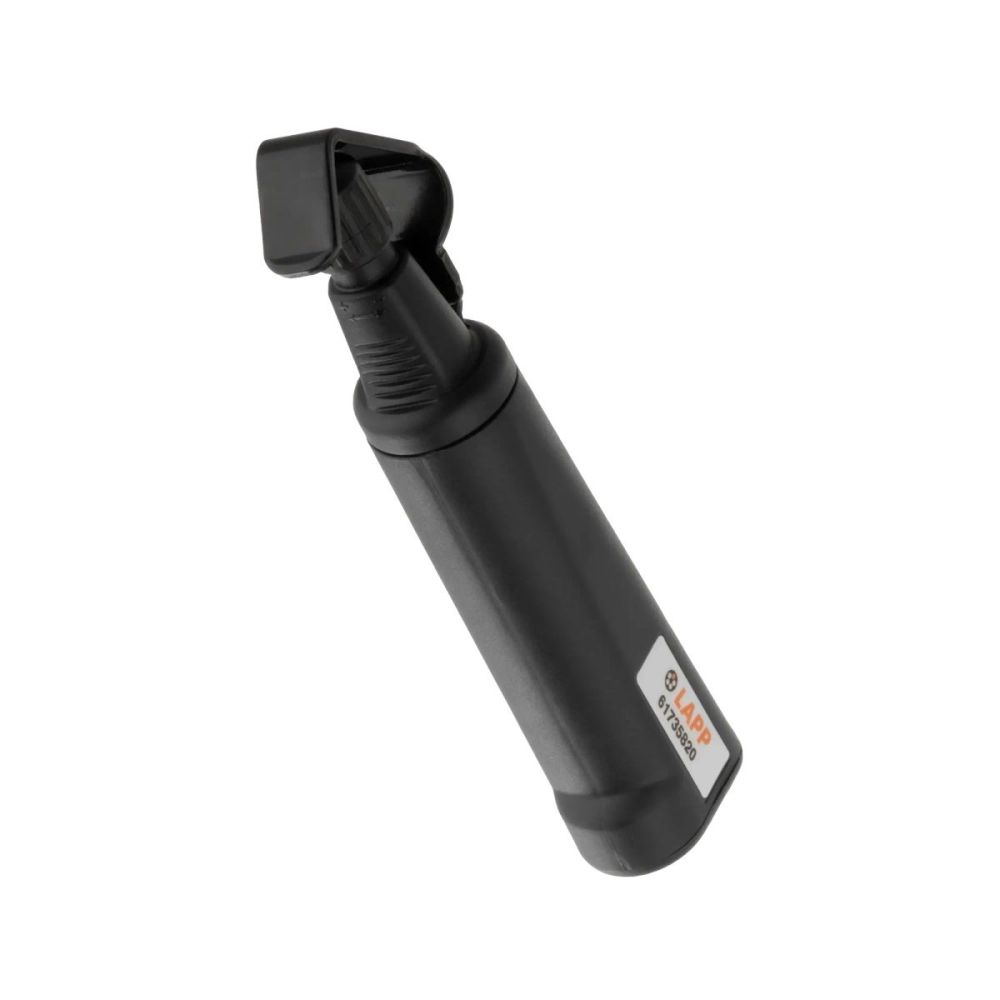

Lapp 61735820 STAR STRIP cable stripping tool 4.5–40 mm
|
74,38 EUR |
|
|
( 88,51 EUR incl. VAT ) ≈ £62.26 | ≈ $81.74 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 873796 |
|---|---|
| Mfg Part No: | 61735820 |
| UPC/EAN: | 4044773197723 |
| Weight: | 0.203 kg |
| Type: | STAR STRIP |
Product information for Lapp 61735820:
Applications
The STAR STRIP cable stripping tool is used in electrical installation, industrial cable construction, and in the field of data and communication technology. It is particularly suitable for tasks requiring clean and precise stripping to ensure the integrity of conductors. The use of interchangeable hooks extends the application range: one hook is intended for cable diameters from 4.5 to 25 mm, the other for 20 to 40 mm. This allows the tool to be adapted to different cable sizes without requiring additional tools.
Functions and Equipment in Detail
The tool features a high-quality blade that delivers flawless stripping results even with difficult insulation materials. The high quality of the blade ensures a long service life and prevents unwanted material damage. The ergonomic design, including low weight, ensures comfortable handling and reduces strain during prolonged work. The continuous adjustment allows precise adaptation to the respective cable diameter, ensuring a clean cut.
Technology Explained Simply
The operation is based on a mechanical cutting system, where the blade penetrates the insulation material through the rotational movement of the tool. The interchangeable hooks ensure the tool is optimized for two different diameter ranges. The robust construction of the tool body ensures a long service life, with the tool tested for over 100,000 stripping operations. This makes it a reliable tool for professional users who value long-term performance and maintenance-free operation.
Compatibility and Accessories
The STAR STRIP is designed for round cables and can be used with various insulation materials. The interchangeability of the hooks allows adaptation to different cable sizes. Use requires no additional aids or tools.
Mounting and Installation
The tool is applied directly to the cable. Adjustment is done continuously via a control that determines the depth of the cut. Hooks are exchanged according to the required diameter range. Handling requires no special mounting or installation; the tool is ready for immediate use.
Operational Advantages
The combination of high precision, ergonomic design, and long service life makes the STAR STRIP an efficient tool for daily use. Clean stripping reduces error rates during cable processing. The interchangeability of the hooks increases flexibility, making the tool suitable for a wide range of cable diameters. The robust construction ensures high reliability, even under intensive use.
| General | |
| Cable diameter | 4,5 - 40 mm |
| Application area | Round cable made of PVC, PTFE, rubber, PUR |
| Cutting types | circular, longitudinal and spiral cuts |
| Hook | Interchangeable, 4.5-25 mm and 20-40 mm |
| Lifespan | over 100000 stripping operations |
| Ergonomics | low weight |
| Blade sharpness | High quality, suitable for difficult insulating materials |
Questions & answers
What is the delivery time of Lapp 61735820 STAR STRIP cable stripping tool 4.5–40 mm ?
The article Lapp 61735820 STAR STRIP cable stripping tool 4.5–40 mm is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Lapp 61735820 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Lapp 61735820 STAR STRIP cable stripping tool 4.5–40 mm always at the best possible price. We can give you a discount of 2% on Lapp 61735820 STAR STRIP cable stripping tool 4.5–40 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
