Lapp 4560087/50 LiFY 1x10 green/yellow 50 m PVC 450/750 V super fine stranded

Your rating:
Average rating
product review for Lapp 4560087/50 LiFY 1x10 green/yellow 50 m PVC 450/750 V super fine stranded
( 4.5 / 5 ) 23 ratings
Lapp 4560087/50

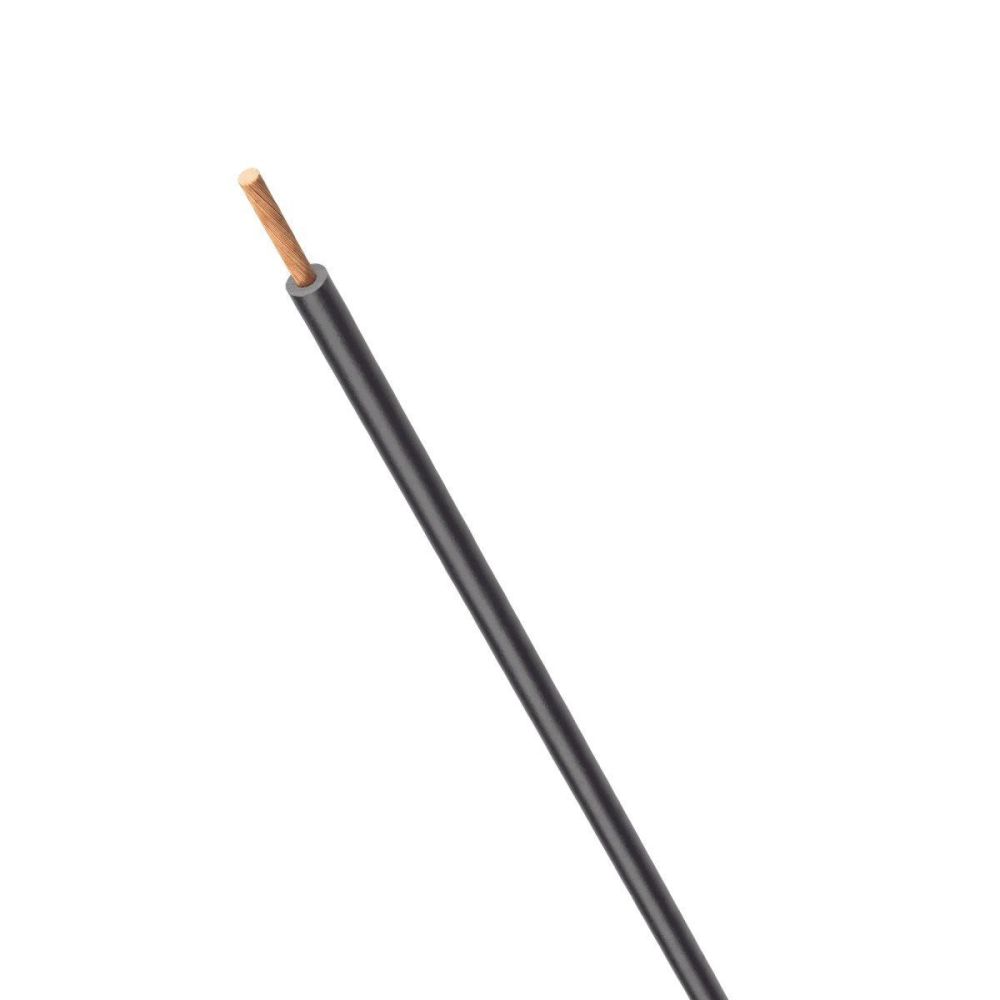

This image may differ from the desired article.
Lapp 4560087/50Lapp 4560087/50
505,05 EUR
incl. 51,71 EUR copper surcharge
( 601,01 EUR incl. VAT )
≈ £422.73  |  ≈ $555.05
plus delivery charges: 100,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
Sales unit: 50 meters
1x Lapp 4560087/50 LiFY 1x10 green/yellow 50 m PVC 450/750 V super fine stranded
Lieske Part No.:460391
Mfg Part No: 4560087/50
UPC/EAN: 4044774685038
Weight:6 kg
Type:LIFY 1X10 GNYE
Graduated prices net
From piecesPrice per meters
4484,65 EUR
8464,25 EUR
12443,85 EUR
16423,45 EUR

Product information for Lapp 4560087/50:

The single conductor LiFY 1X10 GNYE from Lapp is a highly flexible control cable with a conductor cross-section of 10 mm², specifically designed for use in electrical installations. The cable features green-yellow insulation, marked according to VDE regulations as a protective earth conductor (PE), and is supplied in a length of 50 metres. It is intended for fixed installation and is particularly suitable as a measuring cable for movable equipment, where high flexibility and reliability are required.

Applications

The cable is intended for use in dry rooms and can be used flexibly, with a minimum operating temperature of -15 °C. It is suitable for applications requiring high cable mobility, such as in automation technology, movable machinery, or manufacturing technology. The green-yellow colouring makes it immediately identifiable as a protective earth conductor, facilitating compliance with safety regulations.

Functions and Features in Detail

The LiFY 1X10 GNYE consists of a super-fine stranded wire, with an individual wire diameter of 0.07 mm. This construction enables a particularly flexible cable design, ideal for frequent bending and movement. The insulation is made of PVC, designed for fixed installation and ensuring electrical insulation. The cable is rated for voltage class U0/U: 450/750 V, making it suitable for a wide range of industrial applications.

Technology Explained Simply

The 10 mm² conductor cross-section ensures sufficient current-carrying capacity, adequate for many control and switching applications. The super-fine stranded wire ensures the cable remains highly flexible despite its large cross-section, which is advantageous during installation and operation. The green-yellow colouring is internationally standardized for protective earth conductors, simplifying identification and correct wiring within the electrical system. The PVC insulation provides sufficient protection against electrical breakdown and mechanical stress during fixed installation.

Compatibility and Accessories

The cable is designed for use in electrical installations requiring a protective earth conductor connection. It can be combined with other cables from the LiFY range to create complete control cables. Compatibility with other products depends on the respective connection types and electrical requirements.

Installation and Mounting

Installation is carried out for fixed routing, and due to its flexibility, the cable can also be routed in tight bends. The green-yellow colour facilitates identification with the protective earth conductor in the electrical system. During installation, care must be taken to avoid excessive loading of the cable to ensure its service life. The minimum temperature of -15 °C must be considered when planning the operating conditions.

t
Operational Advantages

The high flexibility of the cable enables easy installation and maintenance, especially in movable machinery or systems with frequent movements. Its use as a protective earth conductor ensures a safe electrical connection, minimizing the risk of touch voltages. The PVC insulation provides sufficient protection against electrical breakdown and mechanical stress, increasing reliability during operation. The cable is designed for use in dry rooms, limiting its application to indoor installations, but sufficient for many industrial applications.

The item price shown refers to 50 meters Lapp 4560087/50
General
Conductor cross section10 mm²
Core insulation colourGreen-yellow
Voltage class450/750 V
Insulating materialPVC
Installation methodFixed installation
Single wire diameter0,07 mm
Minimum temperature-15 °C
Applicationmeasurement cable for movable equipment


Please note...
This article contains a copper surcharge of 51,71 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990

Questions & answers

What is the delivery time of Lapp 4560087/50 LiFY 1x10 green/yellow 50 m PVC 450/750 V super fine stranded ?

The article Lapp 4560087/50 LiFY 1x10 green/yellow 50 m PVC 450/750 V super fine stranded is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Lapp 4560087/50 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Lapp 4560087/50 LiFY 1x10 green/yellow 50 m PVC 450/750 V super fine stranded always at the best possible price. We can give you a discount of 2% on Lapp 4560087/50 LiFY 1x10 green/yellow 50 m PVC 450/750 V super fine stranded if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 meters of Lapp 4560087/50 LiFY 1x10 green/yellow 50 m PVC 450/750 V super fine stranded we can offer you a price of 484,65 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

How many units does the article contain?

Lapp 4560087/50 LiFY 1x10 green/yellow 50 m PVC 450/750 V super fine stranded is offered by us in a sales unit of 50 meters If you need a larger quantity, you can contact us at any time. We will make a special offer for you
