Lapp 4560077 LiFY 1x 6 green/yellow PVC 450/750 V super fine stranded

Your rating:
Average rating
product review for Lapp 4560077 LiFY 1x 6 green/yellow PVC 450/750 V super fine stranded
( 4.6 / 5 ) 41 ratings
Lapp 4560077

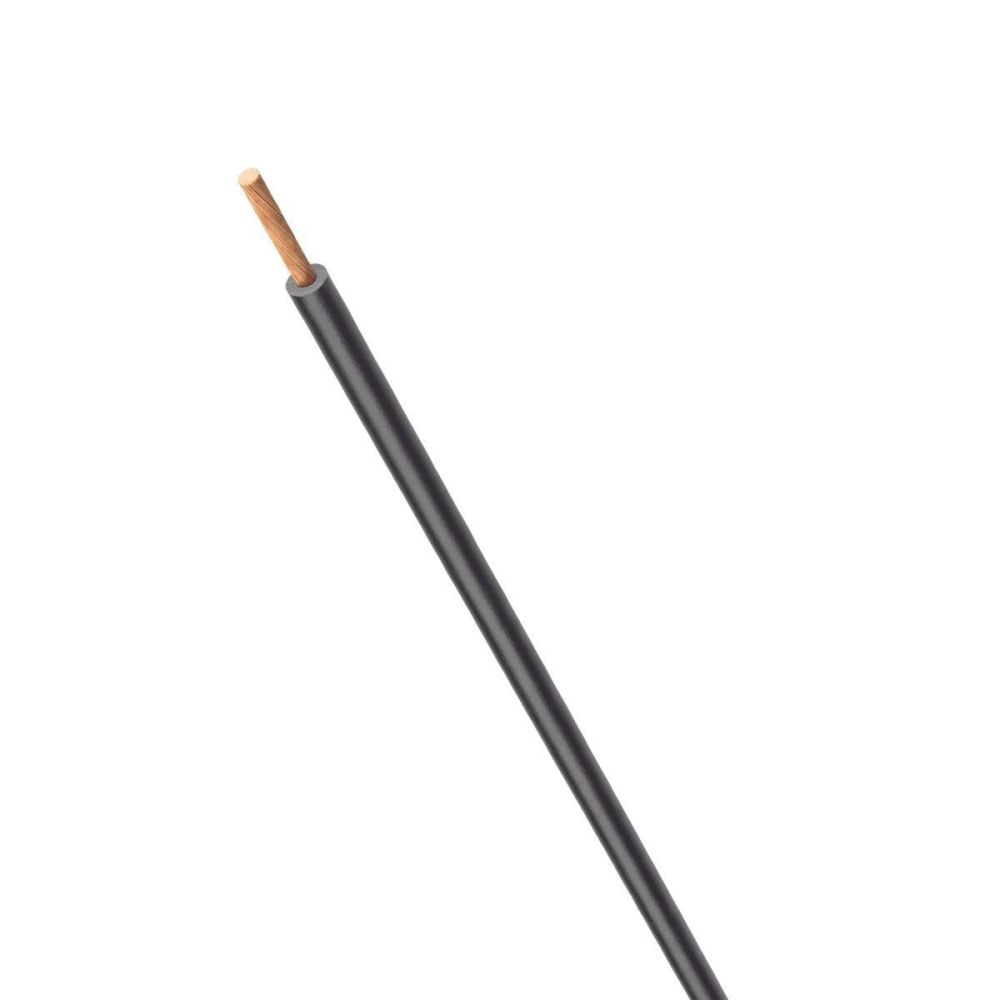

This image may differ from the desired article.
Lapp 4560077Lapp 4560077
5,61 EUR
incl. 0,67 EUR copper surcharge
( 6,68 EUR incl. VAT )
≈ £4.70  |  ≈ $6.17
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Lapp 4560077 LiFY 1x 6 green/yellow PVC 450/750 V super fine stranded
Datasheet:file_download Download
Lieske Part No.:161792
Mfg Part No: 4560077
UPC/EAN: 4044773403589
Weight:0.092 kg
Type:LIFY 1X6 GNYE HOCHFLEXIBEL

Product information for Lapp 4560077:

The single-core cable LiFY 1X6 GNYE from Lapp is a highly flexible control cable with a conductor cross-section of 6 mm², manufactured in the identification colour green-yellow. It is specifically designed for use in moving installations and mobile equipment, where high flexibility and durability are required. The cable is produced in a coil and features PVC insulation suitable for fixed installation. The operating voltage is U0/U: 450/750 V, qualifying it for applications in voltage classes up to 450/750 V. The construction with super-fine stranded wire (individual wire diameter 0.07 mm) ensures a particularly flexible and resilient structure, ideal for dynamic movements.

Applications
The cable is intended for use in dry rooms and can be flexibly used at temperatures down to -15 °C. It is specifically suitable as a measuring cable for mobile equipment, for example in automation technology, CNC machines, or manufacturing technology, where the cable frequently moves and is subjected to mechanical stress. The green-yellow identification colour complies with the standard for protective conductors and is typically used in electrical installations for earth or protective conductors.

Functions and Equipment in Detail
The LiFY 1X6 GNYE features PVC insulation providing good mechanical and thermal resistance. The super-fine stranded wire enables high flexibility, ensuring the cable does not break even under frequent bending and torsional loads. The green-yellow colouring is standardized and serves for clear identification as a protective conductor. The cable is designed for fixed installation, meaning it is not intended for movable connections such as plug connections or cable lugs, but is integrated as a fixed connection in machines or installations.

Technology Explained Simply
The designation 1X6 describes the conductor cross-section: a single-core cable with a 6 mm² cross-section. The green-yellow identification colour is specified by DIN VDE 0815 and other standards for protective conductors. The PVC insulation provides sufficient protection against mechanical stress and moisture, but is not designed for outdoor use or damp environments. The super-fine stranded wire (individual wire diameter 0.07 mm) increases flexibility, as the individual wires bend more easily and adapt better to movements. This reduces the risk of breakage under frequent movement.

Compatibility and Accessories
The cable is designed for use in electrical installations requiring a protective conductor connection. It can be combined with other cables from the LiFY range to create multi-core cable systems. It is used in conjunction with suitable cable lugs, plug connectors, or other connection means designed for a cross-section of 6 mm². Compatibility with other products from the manufacturer is ensured if the electrical and mechanical requirements match.

Installation and Mounting
Installation is carried out by fixed routing in machines, installations, or enclosures. The cable is not intended for movable connections in the sense of plug connections, but for fixed, integrated connections. During installation, proper securing and avoidance of excessive bending radii must be ensured to guarantee service life. The green-yellow colour must remain clearly visible to ensure the function as a protective conductor.

The cable is intended for use in dry rooms and can be flexibly used at temperatures down to -15 °C. It is specifically suitable as a measuring cable for mobile equipment, for example in automation technology, CNC machines, or manufacturing technology, where the cable frequently moves and is subjected to mechanical stress. The green-yellow identification colour complies with the standard for protective conductors and is typically used in electrical installations for earth or protective conductors.

Advantages in Operation
The high flexibility of the cable enables reliable performance even under frequent movement, increasing service life and reducing failures due to cable breaks. The PVC insulation provides sufficient protection against mechanical stress and moisture, allowing safe use in dry indoor environments. The green-yellow identification colour ensures clear identification and facilitates maintenance and inspection of the installation. Use as a protective conductor in mobile equipment is a central application, where the cable reliably performs its function even under dynamic conditions.

General
Conductor cross section6 mm²
Number of conductors1
Wire colourGreen-yellow
Insulating materialPVC
Operating voltage450/750 V
Installation methodFixed installation
Single wire diameter0,07 mm
Temperature range-15 °C
ApplicationPortable equipment, measuring cable
Constructionsuper fine stranded wire
Certifications
EAC certification numberЕАЭС N RU Д-DE.АЮ64.В.00130/20, ЕАЭС N RU Д-DE.АЮ64.В.00142/20
CE markingyes
EAC-certifiedYes
VDE certifiedno
HAR certifiedno
Flame retardance tested according to UN/ECE-R118no
Electrical characteristics
Nominal voltageU0/U: 450/750 V AC rms according to IEC
Max. conductor resistance at 20°C3.3 Ω/km
General information
Product typeSingle core
Weight90 kg/km
Copper index57.6 kg/km
Single core packaging typeRing
Length per PU100 m
Industry segmentHealthcare & Pharma, Machine tools, Robotics
Product characteristics
Application areaFixed installation, Flexible
Minimum bending radius, stationary8 x outer diameter
Minimum bending radius in mm, fixed installation48 mm
Minimum bending radius, occasionally flexing10 x outer diameter
Minimum bending radius in mm, occasionally flexing60 mm
Temperature, fixed installation-30 °C to 70 °C max. conductor temperature
Temperature, fixed installation min-30 °C
Temperature, fixed installation max70 °C
Temperature, occasionally moved-15 °C to 70 °C max. conductor temperature
Temperature, occasionally moved min-15 °C
Temperature, occasionally moved max70 °C
PWIS-free according toVDMA 24364-B2-L
Flame-retardantno
UV-resistantno
Halogen-freeno
Oil-resistantno
PWIS-freeyes
Product design
LiF fine-stranded cablesLiFY
Cable dimensions1X6
Nominal conductor cross-section (metric)6 mm²
Conductor materialBare copper
Conductor designExtra-fine wire (diameter of each wire is 0.07 mm)
Number of cores1
Nominal outer diameter6 mm
Cable shapeRound
Core insulation basic materialPolyvinylchloride
Core insulation basic material, short formPVC
Single core colourgreen/yellow
Single core identificationStrips, two-coloured


Please note...
For this article, we charge 14,85 EUR for measuring, cutting and re-furling the cable. If you take a whole 100m or 500m cable reel, the charge will of course be dropped.

The final cable weight will be determined before invoicing. The calculation is based on the copper content and any additional weight due to drums, pallets, or outer packaging. Prices are subject to this subsequent calculation.

Please note that for cables, that are not in stock and must be produced, the manufacturer may need an order of a minimum length that can be 5-10km depending on cable type!
This article contains a copper surcharge of 0,67 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
Product data sheet
Datasheet for Lapp 4560077, EAN: 4044773403589

Questions & answers

What is the delivery time of Lapp 4560077 LiFY 1x 6 green/yellow PVC 450/750 V super fine stranded ?

The article Lapp 4560077 LiFY 1x 6 green/yellow PVC 450/750 V super fine stranded is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Lapp 4560077 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Lapp 4560077 LiFY 1x 6 green/yellow PVC 450/750 V super fine stranded always at the best possible price. We can give you a discount of 2% on Lapp 4560077 LiFY 1x 6 green/yellow PVC 450/750 V super fine stranded if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
