Lapp 4126105S/250 LiY 1x0.25 White 250 m reel PVC single core

Your rating:
Average rating
product review for Lapp 4126105S/250 LiY 1x0.25 White 250 m reel PVC single core
( 4.6 / 5 ) 10 ratings
Lapp 4126105S/250

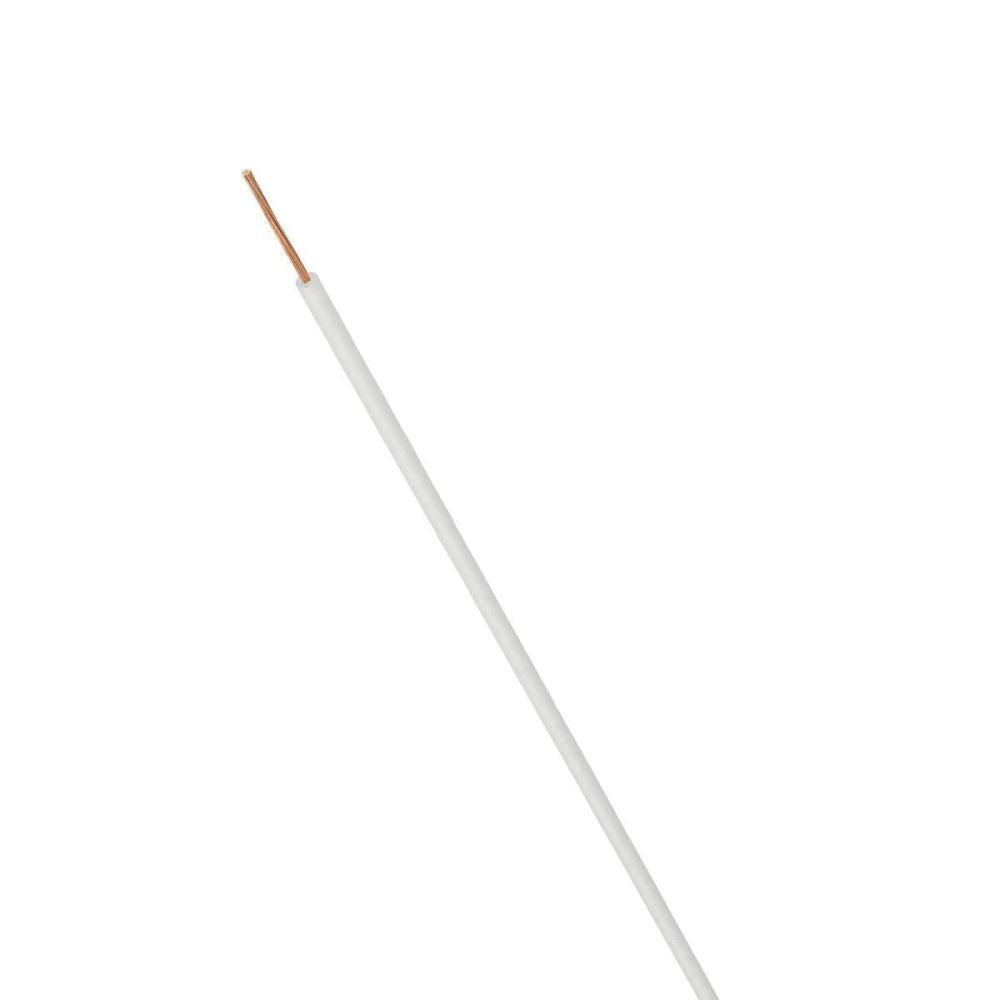

This image may differ from the desired article.
Lapp 4126105S/250Lapp 4126105S/250
41,89 EUR
incl. 6,46 EUR copper surcharge
( 49,85 EUR incl. VAT )
≈ £35.06  |  ≈ $46.04
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
Sales unit: 250 meters
In Stock: 3 meters
1x Lapp 4126105S/250 LiY 1x0.25 White 250 m reel PVC single core
Datasheet:file_download Download
Lieske Part No.:547795
Mfg Part No: 4126105S/250
UPC/EAN: 4044774695143
Weight:1.165 kg
Type:LIY0,25WS
Graduated prices net
From piecesPrice per meters
1039,76 EUR
2537,64 EUR
5035,51 EUR
7533,39 EUR

Product information for Lapp 4126105S/250:

The single core LiY 0.25 WH from Lapp is a control and signal cable for fixed installation, specifically designed for use in industrial plants and machine constructions. With a nominal conductor cross-section of 0.25 mm² and an insulation colour white, it offers a compact design, particularly suitable for internal wiring within enclosures and for machine internal circuits. The cable is supplied on a reel with a length of 250 m and is intended for fixed and protected installation in dry and damp rooms. The maximum operating temperature is 70 °C, with a minimum temperature of -30 °C, allowing use even in colder environments.

Applications

The cable is designed for use in industrial electrical engineering, particularly in areas such as renewable energies – specifically in the solar sector. It is suitable for wiring within machines and enclosures, where fixed, non-moving installation is required. Use in dry and damp rooms is possible, although the cable is not intended for outdoor use or in environments with direct UV or ozone exposure. Fixed installation requires a minimum bending radius of 4 times the outer diameter, which, with a nominal outer diameter of 1.3 mm, corresponds to a value of 5.2 mm.

Functions and Equipment in Detail

The single core consists of bare copper, manufactured according to IEC class 5 as fine-stranded, which enables high flexibility during processing. The core insulation is made of polyvinyl chloride (PVC), providing good electrical insulation. The white insulation colour serves visual identification and is part of the standardised colour coding for control cables. The cable is flame retardant according to IEC 60332-1-2, offering enhanced safety when used in enclosed spaces. Additionally, the cable is LABS-free according to VDMA 24364-B2-L, enabling use in environments with special requirements for material composition.

Technology Explained Simply

The nominal conductor cross-section of 0.25 mm² corresponds to a maximum conductor resistance of 79 Ω/km at 20 °C, which is sufficient for transmitting control signals or low current levels. The fine-stranded construction (IEC class 5) ensures better processability, especially in tight bends or during installation in compact enclosures. The PVC insulation provides sufficient electrical insulation and mechanical stability, but is not resistant to oil, ozone, or UV radiation. The cable is not halogen-free, which must be considered for certain fire protection requirements.

Compatibility and Accessories

The cable is designed for use in standard enclosures and machine constructions. It can be combined with other cables of type LIY or LIYY to create multi-core wiring systems. Use in the solar industry occurs within the context of renewable energies, where it is used to connect control and switching units within installations.

Installation and Mounting

Installation is carried out by fixed routing, with the minimum bending radius of 5.2 mm must be observed to ensure cable integrity. Processing is simple due to the compact design and fine-stranded construction, requiring no special tools. The cable is intended for use in enclosed spaces, with installation in enclosures or machine cabinets being typical. Connections are made via standard connectors or soldered joints, depending on the requirements of the installation.

Advantages in Operation

The cable provides reliable electrical conduction with good insulation and flame-retardant properties. Its compactness and easy processability simplify installation, especially in confined spaces. Availability in various insulation colours enables clear identification of cables within the enclosure. Use in the solar industry demonstrates suitability for modern industrial applications, where robust and reliable wiring is required. The cable is CE-marked and EAC-certified, confirming compliance with European and Eurasian safety standards.

The item price shown refers to 250 meters Lapp 4126105S/250
Certifications
EAC certification numberЕАЭС N RU Д-DE.АЮ64.В.00130/20, ЕАЭС N RU Д-DE.РА01.В.47116/21
CE markingyes
EAC-certifiedYes
VDE certifiedno
HAR certifiedno
Flame retardance tested according to UN/ECE-R118no
Electrical characteristics
Max. conductor resistance at 20°C79 Ω/km
General information
Product typeSingle core
Weight4 kg/km
Copper index2.4 kg/km
Single core packaging typeSpool
Length per PU250 m
Industry segmentRenewable Energy: Solar
Product characteristics
Application areaFixed installation
Minimum bending radius, stationary4 x outer diameter
Minimum bending radius in mm, fixed installation5.2 mm
Temperature, fixed installation-30 °C to 70 °C max. conductor temperature
Temperature, fixed installation min-30 °C
Temperature, fixed installation max70 °C
Flame retardance according toIEC 60332-1-2
PWIS-free according toVDMA 24364-B2-L
Flame-retardantyes
UV-resistantno
Ozone-resistantno
Halogen-freeno
Oil-resistantno
PWIS-freeyes
Product design
Li-stranded cablesLiY
Cable dimensions1X0.25
Nominal conductor cross-section (metric)0.25 mm²
Conductor materialBare copper
Conductor designIEC 60228 class 5: fine-wire
Number of cores1
Nominal outer diameter1.3 mm
Cable shapeRound
Core insulation basic materialPolyvinylchloride
Core insulation basic material, short formPVC
Single core colourwhite
Single core identificationSingle-coloured


Please note...
This article contains a copper surcharge of 6,46 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
Product data sheet
Datasheet for Lapp 4126105S/250, EAN: 4044774695143

Questions & answers

What is the delivery time of Lapp 4126105S/250 LiY 1x0.25 White 250 m reel PVC single core ?

The article Lapp 4126105S/250 LiY 1x0.25 White 250 m reel PVC single core is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Lapp 4126105S/250 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Lapp 4126105S/250 LiY 1x0.25 White 250 m reel PVC single core always at the best possible price. We can give you a discount of 2% on Lapp 4126105S/250 LiY 1x0.25 White 250 m reel PVC single core if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 meters of Lapp 4126105S/250 LiY 1x0.25 White 250 m reel PVC single core we can offer you a price of 39,76 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

How many units does the article contain?

Lapp 4126105S/250 LiY 1x0.25 White 250 m reel PVC single core is offered by us in a sales unit of 250 meters If you need a larger quantity, you can contact us at any time. We will make a special offer for you
