Lapp 22262049 AB-C4-M12MS-PG07-VA connector plug straight 4p for Food Outdoor

Your rating:
Average rating
product review for Lapp 22262049 AB-C4-M12MS-PG07-VA connector plug straight 4p for Food Outdoor
( 5 / 5 ) 1 ratings

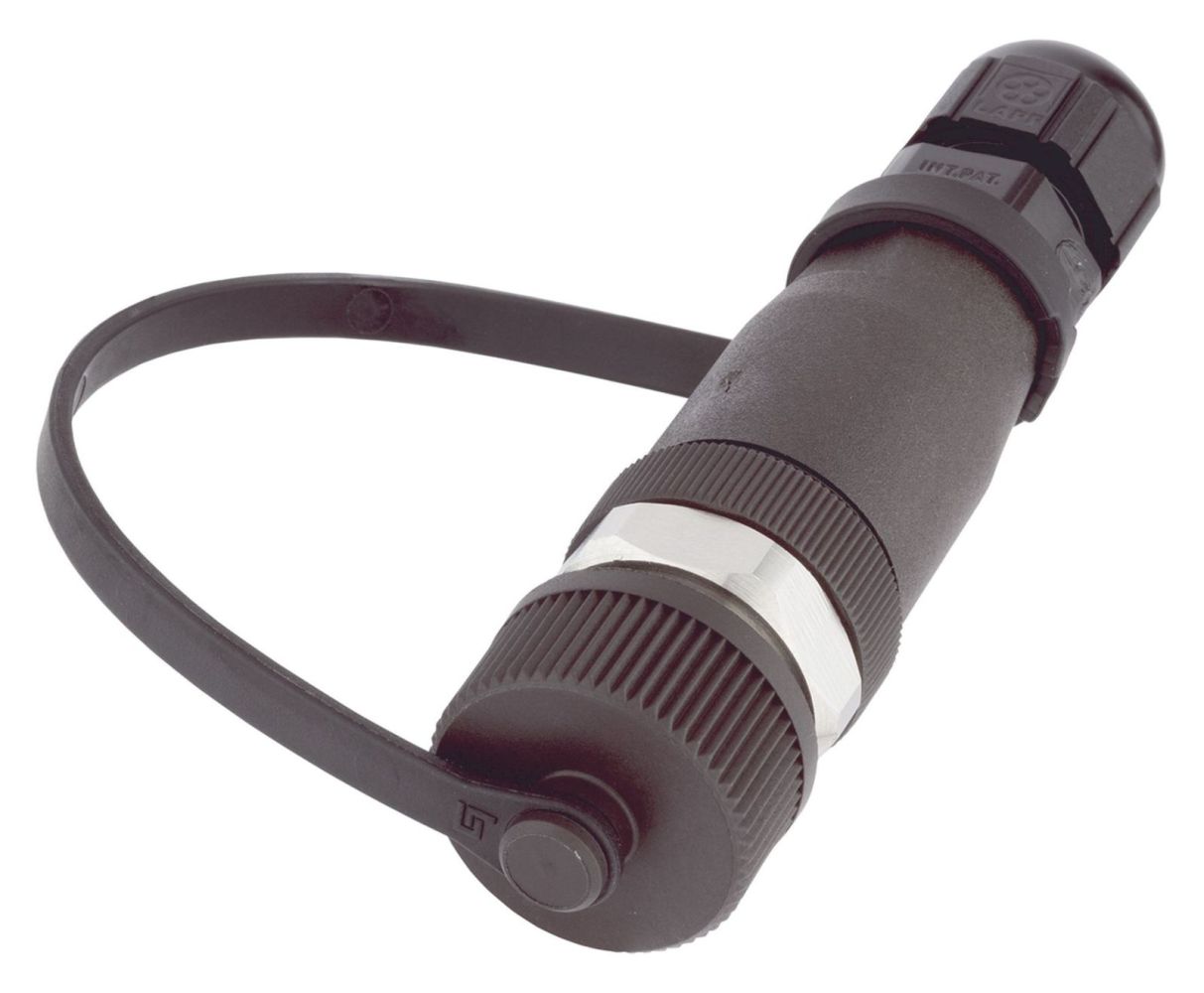

Lapp 22262049
This image may differ from the desired article.
17,17 EUR
( 20,43 EUR incl. VAT )
≈ £14.37  |  ≈ $18.87
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Lapp 22262049 AB-C4-M12MS-PG07-VA connector plug straight 4p for Food Outdoor
Datasheet:file_download Download
Lieske Part No.:467929
Mfg Part No: 22262049
UPC/EAN: 4044776711124
Weight:0.023 kg
Type:AB-C4-M12MS-PG7-VA

Product information for Lapp 22262049:

Data connector AB-C4-M12MS-PG7-VA, data connector, sensor/actuator, M 12 (A-coded), plug, straight (180 °), areas of application: SKINTOP variant for outdoor applications, conveyor and transport systems, food and packaging machines, automation systems, benefits: quick and easy assembly on site, space saving thanks to compact dimensions, corrosion-resistant thanks to high-quality stainless steel knurls, creation of individual cable lengths, simple connection with proven screw terminal technology

Certifications
EAC-certifiedNot required
EAC certification numberОтказное письмо № 39
CE markingno
UL recognizedno
UL listedno
cUR recognisedno
cUL listedno
CSA certifiedno
Electrical characteristics
Rated voltage250 V DC according to IEC
Rated current4 A according to IEC
Overvoltage categoryII
General information
BrandEPIC®
Product typeData connector
Scope of deliveryWithout cable gland
Weight0.023 kg
Delivery Unit1
valid fieldbus or Ethernet systemSensor/Actuator
Product characteristics
Min. number of insertion cycles100
IP protection ratingIP 67
Pollution degree3
Operating temperature min.-25 °C
Operating temperature max.85 °C
UV-resistantno
Vibration protectionyes
Product design
Number of contacts4
Connector diameter20 mm
Total length60 mm
Thread typeMetric
Thread sizeM 12
Connector housing designStraight
Connector formatM 12
Connector typePlug
Coding typeA-coded
Connector housing angle180 °
For min. cable outer diameter4 mm
For max. cable outer diameter6 mm
Assembly typeField configurable
Conductor connection typeScrew connection
Min. connectable conductor cross-section fine-wire (AWG)24 AWG
Max. connectable conductor cross-section fine-wire (AWG)18 AWG
Min. connectable conductor cross section fine-wire (mm2)0.25 mm²
Max. connectable conductor cross-section fine-wire (mm2)0.75 mm²
Connectable conductor cross-section (mm²)0.75 mm²
Contact materialBrass
Contact material, short formCuZn
Contact coating materialGold-plated
Contact coating material, short formAu
Housing colourblack
Plug material, short formPA
Shieldedno
Status displayno
Codedyes
With threadyes
Reusableyes


Product data sheet
Datasheet for Lapp 22262049, EAN: 4044776711124

Questions & answers

What is the delivery time of Lapp 22262049 AB-C4-M12MS-PG07-VA connector plug straight 4p for Food Outdoor ?

The article Lapp 22262049 AB-C4-M12MS-PG07-VA connector plug straight 4p for Food Outdoor is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Lapp 22262049 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Lapp 22262049 AB-C4-M12MS-PG07-VA connector plug straight 4p for Food Outdoor always at the best possible price. We can give you a discount of 2% on Lapp 22262049 AB-C4-M12MS-PG07-VA connector plug straight 4p for Food Outdoor if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
