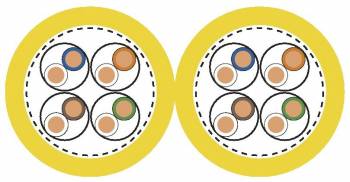

Lapp ETHERLINE LAN Cat.7A S/FTP 4x2x AWG23 LSZ data transmission 2170971 content_copy

Ethernet cable ETHERLINE® LAN 1000 Cat.7A 4x2xAWG23 LSZH, Ethernet cable, fixed installation, Cat.7A, S/FTP, halogen-free, yellow, Areas of application: Suitable for all LAN networks and Ethernet applications up to 10GBase-T, For structured building cabling in accordance with EN 50173 and ISO/IEC 11801, For horizontal floor cabling with a maximum cable length of 100 m (of which 90 m for installation and 10 m at the workplace), Benefits: Meets requirements for transmission behavior in accordance with EIA/TIA-568 and TSB36 as well as ISO/IEC 11801/EN 50173 (link class FA), Available as a 4-pair standard cable or as a duplex cable version for reduced cabling effort, Ideal protection against electromagnetic interference through pair shielding with aluminum composite foil and Copper braided shielding as overall shielding (S/FTP), Classified fire behaviour in accordance with EU Directive 305/2011 (BauPVO/CPR) with article number selection on the LAPP website, For the transmission of analogue and digital signals in the frequency range up to 1000 MHz, Fast information exchange through Ethernet technology, Cat7A performance up to 10 Gbit/s, No fire propagation on the halogen-free cable in accordance with IEC 60332-3-25 (flame spread on vertical cable or wire bundles)
Type: ETHERLINE LAN Cat.7A S/FTP 4x2xAWG23 LSZ
