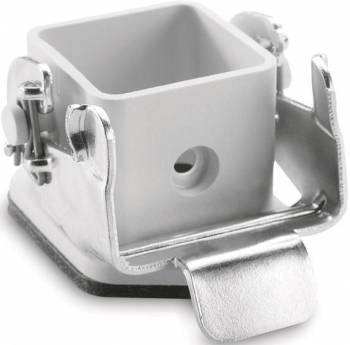

LAPP add-on housing HA 3 AG 10422000 content_copy

Bulkhead housing EPIC® HA 3 AG gr, Bulkhead housing, Size: 3A, Connector design: Standard, Longitudinal lever, Number of cable entries: 1, Polyamide, uncoated, IP protection class when plugged in: IP 67, Areas of application: To protect the connector insert from environmental influences,Suitable for outdoor use,Increased oil-resistant material for harsh industrial environments,For use with many EPIC® rectangular connector inserts,For the power supply connection of devices and machines, Benefits: The arrow as a new design element on the housing surface is easy to feel and simplifies plugging in spatially confined and possibly poorly visible application areas,With open base for the cable entry into the housing or into the control cabinet,UL certification according to technical data enables use of the product in North America,The bulkhead housing can be plugged into many commercially available sleeve housings,Enables protection class IP 67 due to the secure seal to the housing,The EPIC® HA 3 series includes the smallest housing in the field of heavy industrial connectors and ensures secure connections in the smallest of spaces,The locking is done via a longitudinal bracket made of plastic,Self-extinguishing according to UL94 V-0 (flammability test for plastics)
Type: H-A 3AG

The item price shown refers to 10 pieces Lapp 10422000
