Lapp 0042004 ÖLFLEX LIFT-F 8G1.5 450/750V PVC flat cable -15…70°C
|
5,03 EUR |
|||||||||||
|
incl. 1,36 EUR copper surcharge ( 5,99 EUR incl. VAT ) ≈ £4.21 | ≈ $5.58 plus delivery charges: 55,00 € |
|||||||||||
| in stockinfo_outline | |||||||||||
| Lieske Part No.: | 183352 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 0042004 | ||||||||||
| UPC/EAN: | 4044773050554 | ||||||||||
| Weight: | 0.266 kg | ||||||||||
| Type: | ÖLFLEX LIFT F 8G1,5 450/750V | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Lapp 0042004:

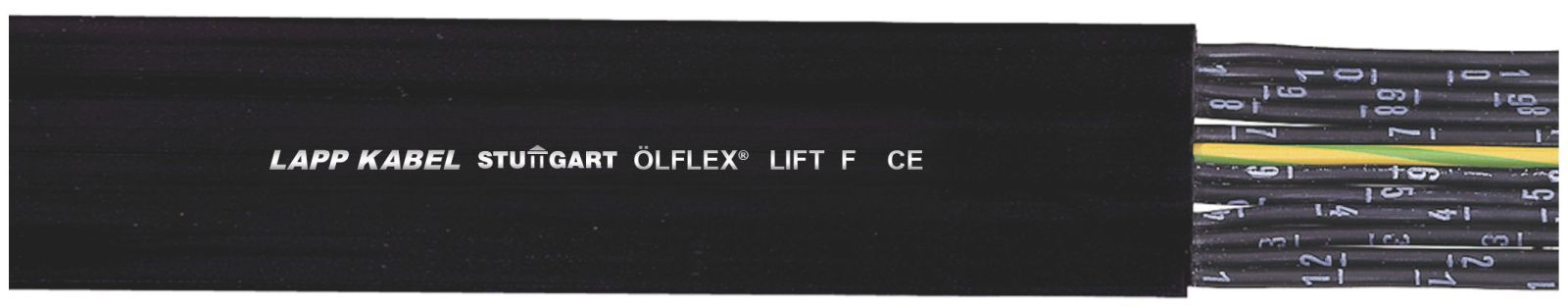

The ÖLFLEX® LIFT F 8G1,5 450/750V is a flat, flexible installation cable from manufacturer Lapp, specifically designed for use in moving machine parts and cable carriers. It is particularly suitable as a control cable in elevator systems, conveyor and lifting systems, cable car systems, transport systems, and gantry cranes. The cable is designed for medium mechanical stress and enables continuous, moving operation under industrial conditions. Due to its flat cross-section, it is significantly more space-saving than conventional round cables and particularly advantageous in confined spaces. The construction allows for smaller bending radii compared to round cables, simplifying installation in complex systems.
Applications
The cable is suitable for use in dry, damp, and wet rooms, including outdoor areas, provided the temperature range is observed. It is suitable for elevator systems with a maximum suspension length of 35 meters and a maximum speed of 1.6 m/s. The application is in moving machine parts, cable carriers, and systems requiring continuous motion, such as gantry cranes or cable car systems.
Functions and Equipment in Detail
The ÖLFLEX® LIFT F 8G1,5 features a PVC outer sheath that is resistant to acids and alkalis and conditionally oil-resistant. Conductor identification is done by numbering, enabling clear assignment of conductors during wiring. The cable is flexible and designed for continuous movement, making it suitable for applications in dynamic systems. Use in conveyor and lifting systems as well as in transport systems is possible due to its mechanical robustness and flexible construction.
Technology Explained Simply
The cable is rated for an operating voltage of 450/750 V, making it suitable for applications in industry and machine construction. The PVC sheath is cold-flexible, enabling use both indoors and outdoors. Temperature resistance ranges from -15 °C to +70 °C, ensuring broad application in various environments. The flat shape reduces space requirements and allows for smaller bending radii, which is advantageous during installation in confined spaces or cable carriers.
Compatibility and Accessories
The cable is designed for use in industrial systems requiring flexible, moving cabling. It is compatible with systems requiring a control cable with 8 conductors and a cross-section of 1.5 mm². Use in elevator systems, cable car systems, and gantry cranes is intended due to its mechanical and electrical properties.
Installation and Mounting
Installation is carried out in moving machine parts and cable carriers, where the flat shape and low bending stiffness facilitate mounting. The cable is designed for a suspension length of up to 35 meters at a maximum speed of 1.6 m/s. Installation does not require special tools, but adherence to specified bending radii and temperature limits is important to ensure service life.
Advantages in Operation
The flat design saves space and enables compact routing, especially in confined areas. The flexible construction ensures long service life under moving conditions. Resistance to acids, alkalis, and oil ensures high reliability in industrial environments. Suitability for outdoor use expands application possibilities, provided temperature limits are observed. The cable is designed for continuous movement and is therefore suitable for systems requiring permanent, flexible cabling.
Protection Class and Environmental Conditions
The cable is suitable for use in dry, damp, and wet rooms as well as outdoors, provided the temperature does not exceed -15 °C to +70 °C. The PVC sheath provides protection against acids, alkalis, and conditionally against oil. Mechanical stress is designed for medium loads, making it suitable for industrial applications with moving parts. The cable is not intended for explosive environments, as no corresponding approvals are mentioned.
Applications
The cable is suitable for use in dry, damp, and wet rooms, including outdoor areas, provided the temperature range is observed. It is suitable for elevator systems with a maximum suspension length of 35 meters and a maximum speed of 1.6 m/s. The application is in moving machine parts, cable carriers, and systems requiring continuous motion, such as gantry cranes or cable car systems.
Functions and Equipment in Detail
The ÖLFLEX® LIFT F 8G1,5 features a PVC outer sheath that is resistant to acids and alkalis and conditionally oil-resistant. Conductor identification is done by numbering, enabling clear assignment of conductors during wiring. The cable is flexible and designed for continuous movement, making it suitable for applications in dynamic systems. Use in conveyor and lifting systems as well as in transport systems is possible due to its mechanical robustness and flexible construction.
Technology Explained Simply
The cable is rated for an operating voltage of 450/750 V, making it suitable for applications in industry and machine construction. The PVC sheath is cold-flexible, enabling use both indoors and outdoors. Temperature resistance ranges from -15 °C to +70 °C, ensuring broad application in various environments. The flat shape reduces space requirements and allows for smaller bending radii, which is advantageous during installation in confined spaces or cable carriers.
Compatibility and Accessories
The cable is designed for use in industrial systems requiring flexible, moving cabling. It is compatible with systems requiring a control cable with 8 conductors and a cross-section of 1.5 mm². Use in elevator systems, cable car systems, and gantry cranes is intended due to its mechanical and electrical properties.
Installation and Mounting
Installation is carried out in moving machine parts and cable carriers, where the flat shape and low bending stiffness facilitate mounting. The cable is designed for a suspension length of up to 35 meters at a maximum speed of 1.6 m/s. Installation does not require special tools, but adherence to specified bending radii and temperature limits is important to ensure service life.
Advantages in Operation
The flat design saves space and enables compact routing, especially in confined areas. The flexible construction ensures long service life under moving conditions. Resistance to acids, alkalis, and oil ensures high reliability in industrial environments. Suitability for outdoor use expands application possibilities, provided temperature limits are observed. The cable is designed for continuous movement and is therefore suitable for systems requiring permanent, flexible cabling.
Protection Class and Environmental Conditions
The cable is suitable for use in dry, damp, and wet rooms as well as outdoors, provided the temperature does not exceed -15 °C to +70 °C. The PVC sheath provides protection against acids, alkalis, and conditionally against oil. Mechanical stress is designed for medium loads, making it suitable for industrial applications with moving parts. The cable is not intended for explosive environments, as no corresponding approvals are mentioned.
| General | |
| Number of conductors | 8 |
| Conductor cross section | 1,5 mm² |
| Operating voltage | 450/750 V |
| Wire identification | numbers |
| Insulation and sheath material | PVC |
| Temperature range | -15 to +70 °C |
| Insertion length | 35 m |
| Maximum speed | 1,6 m/s |
| Bending radius | smaller than with round conductors |
| Application area | elevator control, conveyor and lifting systems, cable car systems, transport systems, gantry cranes |
| Mechanical stress | medium |
| Resistance | resistant to acids, alkalis, conditionally oil-resistant |
| Application range | Interior and exterior area |
| Shape | Flat |
| Flexibility | Flexible |
Please note...
For this article, we charge 14,85 EUR for measuring, cutting and re-furling the cable. If you take a whole 100m or 500m cable reel, the charge will of course be dropped.
The final cable weight will be determined before invoicing. The calculation is based on the copper content and any additional weight due to drums, pallets, or outer packaging. Prices are subject to this subsequent calculation.
Please note that for cables, that are not in stock and must be produced, the manufacturer may need an order of a minimum length that can be 5-10km depending on cable type!
The final cable weight will be determined before invoicing. The calculation is based on the copper content and any additional weight due to drums, pallets, or outer packaging. Prices are subject to this subsequent calculation.
Please note that for cables, that are not in stock and must be produced, the manufacturer may need an order of a minimum length that can be 5-10km depending on cable type!
This article contains a copper surcharge of 1,36 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
Questions & answers
What is the delivery time of Lapp 0042004 ÖLFLEX LIFT-F 8G1.5 450/750V PVC flat cable -15…70°C ?
The article Lapp 0042004 ÖLFLEX LIFT-F 8G1.5 450/750V PVC flat cable -15…70°C is currently in stock
According to our experience the article is ready for dispatch within 7 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Lapp 0042004 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Lapp 0042004 ÖLFLEX LIFT-F 8G1.5 450/750V PVC flat cable -15…70°C always at the best possible price. We can give you a discount of 2% on Lapp 0042004 ÖLFLEX LIFT-F 8G1.5 450/750V PVC flat cable -15…70°C if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 50 meters of Lapp 0042004 ÖLFLEX LIFT-F 8G1.5 450/750V PVC flat cable -15…70°C we can offer you a price of 4,73 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
