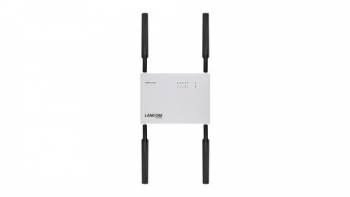

R&S®LANCOM Router Mobilfunk IAP-5G (EU)

Your rating:
Average rating
product review for R&S®LANCOM Router Mobilfunk IAP-5G (EU)
( 4 / 5 ) 2 ratings
Lancom 61718
This image may differ from the desired article.
1.432,95 EUR
( 1.705,21 EUR incl. VAT )
≈ £1,199.38  |  ≈ $1,574.81
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >25 pieces
1x R&S®LANCOM Router Mobilfunk IAP-5G (EU)
Lieske Part No.:1132562
Mfg Part No: 61718
UPC/EAN: 4044144617188
Weight:2.165 kg
Type:ACCS

Product information for Lancom 61718:

The Lancom IAP-5G is a stationary router with an integrated 5G modem, specifically designed for use in demanding environments such as warehouses, logistics centres or covered outdoor areas where no fixed internet connection is available. The device functions as an SD-WAN Industrial Gateway and enables a reliable, high-performance network connection via mobile data infrastructure. The robust all-metal housing provides protection to IP50, ensuring enhanced dust tightness and protection against splashing water. The operating temperature ranges from -20 °C to +50 °C, enabling use in industrial environments with varying climatic conditions.

Applications

The router is designed for use in industrial and indoor environments, particularly in situations where a fixed internet connection is not available or not practical. Typical use cases include networking machines, automation systems, monitoring systems or IoT devices in logistics environments. The integrated 5G technology ensures stable and fast data transmission, even for real-time applications requiring low latency.

Functions and Features in Detail

The device features an integrated 5G modem, enabling high bandwidth and low latency. It supports mobile standards 3G, 4G (LTE) and 5G, covering 5G bands n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n30, n34, n39, n40, n41, n48, n66 and n71. The UMTS and LTE bands include a wide range of frequencies, ensuring broad compatibility with various mobile networks. The IPSec-VPN functionality enables secure site networking with up to five simultaneous connections (optional up to 25 channels). The integrated stateful inspection firewall provides protection against unauthorised access, intrusion detection and protection against Denial-of-Service attacks.

Technology Explained Simply

Network virtualisation (ARF) allows up to 16 separate networks to be set up on a single device, simplifying network organisation in complex environments. Power supply is via PoE (802.3af) and PoE+ (802.3at), simplifying installation without requiring an additional power supply. The device features two RJ45 copper ports and one USB-C port. Wall-mounting capability and the included mounting kit facilitate installation at suitable locations.

Compatibility and Accessories

The device is designed for use with 5G, LTE and UMTS networks. The delivery includes four antennas with 2 dBi gain, optimised for mobile network connectivity. Compatibility with various mobile standards and frequencies enables flexible use in different regions and networks.

Mounting and Installation

Wall mounting is possible using the included mounting kit. The device is delivered with a 3 m Ethernet cable, which can be used to connect to other network components. Installation is guided by the provided documentation: Hardware Quick Overview and Installation Guide in German and English.

Operational Advantages

The Lancom IAP-5G offers a reliable, secure and high-performance network connection in harsh environments. The combination of a robust housing, broad frequency support and integrated security functions makes the device a suitable solution for industrial applications where stable and secure data transmission is required. Support for PoE and wall-mounting capability reduces installation complexity and the number of required components.

Security Made in Germany

The device is offered under the Security Made in Germany label, indicating production and development in Germany and highlighting compliance with high security standards. Integrated security functions such as firewall, intrusion detection and Denial-of-Service protection contribute to protecting the network infrastructure.

Colour and Dimensions

The device is finished in light grey. Dimensions are 210 mm (length/depth), 152 mm (width) and 33 mm (height). This compact design allows flexible placement, even in limited spaces.

Scope of Delivery

The device is delivered with the following components: LANCOM IAP-5G, Hardware Quick Overview (DE/EN), Installation Guide (DE/EN), Ethernet cable (3 m), mounting kit for wall mounting, and four 5G/LTE/UMTS antennas (2 dBi).

General
Product typeStationary router
ManufacturerLancom
Modem type5G
Mobile communication standards3G, 4G (LTE), 5G
5G bandsn1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n30, n34, n39, n40, n41, n48, n66, n71
UMTS bandsB1, B2, B4, B5, B8, B19
LTE bandsB1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B48, B66, B71
Degree of protectionIP50
Operation temperature-20 to +50 °C
Connections2x RJ45, USB-C
PoE standard802.3af, 802.3at
Current supplyexternal power supply, PoE
IPSec-VPN5 simultaneous connections (optional 25 channels)
FirewallStateful Inspection Firewall
Network virtualisationup to 16 networks (ARF)
ColourLight grey
Scope of deliveryLANCOM IAP-5G, hardware quick reference (DE/EN), installation guide (DE/EN), Ethernet cable (3 m), mounting kit, 4x antennas (2 dBi)
Wall mountableYes
Intrusion DetectionYes
Denial of Service ProtectionYes


Questions & answers

What is the delivery time of R&S®LANCOM Router Mobilfunk IAP-5G (EU)?

The article R&S®LANCOM Router Mobilfunk IAP-5G (EU) is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Lancom 61718 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you R&S®LANCOM Router Mobilfunk IAP-5G (EU) always at the best possible price. We can give you a discount of 2% on R&S®LANCOM Router Mobilfunk IAP-5G (EU) if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
