Kyocera 1203RA0UN0 PF-1100 paper feed for M2040/M2135/M2635/M2735 content_copy

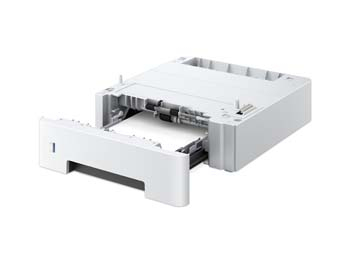

The Kyocera PF-1100 is a paper tray for use with the printer model ECOSYS M2635dn. It serves as an additional paper input option to increase paper capacity for high print volumes and to optimise workflow. The tray is specifically designed for use in office environments where continuous and reliable paper feeding is required.

Applications
The paper tray is suitable for use in offices and small to medium-sized work environments where the ECOSYS M2635dn is used as a printing system. It enables the simultaneous use of multiple paper sources, reducing the need for manual paper reloading. The maximum capacity of 250 sheets ensures longer operating time without interruption. Compatibility with the ECOSYS M2635dn ensures seamless integration into existing workflows.

Functions and equipment in detail
The tray supports media types in formats A4, A5 and A6, covering a wide range of printing tasks from standard documents to smaller forms or labels. Supported media weights range from 60 to 163 g/m², suitable for standard copy paper as well as slightly thicker materials such as light cardstock. The product colour white matches the standard colour scheme of Kyocera printers. Dimensions are 375 mm (width) × 390 mm (depth) × 100 mm (height), enabling a compact design that integrates well into the printer.

Technology explained simply
The paper tray is a mechanical module that attaches to the printer to extend paper capacity. It features a feeding mechanism that guides paper properly into the printer. The construction is designed to be securely attached to the device, preventing any shifting or misoperation during operation. The maximum capacity of 250 sheets allows for longer operating time without manual reloading, which is particularly beneficial for frequent printing tasks.

Compatibility and accessories
The paper tray is specifically developed for the ECOSYS M2635dn and can be directly connected to this device. It is part of Kyocera’s accessory line and serves as an extension of the standard paper capacity. According to information from ALSO Deutschland GmbH and BenData GmbH & Co. KG, up to two units can be installed, increasing the total capacity to up to 500 sheets. The statement “max. 2 units installable” refers to the physical number of trays that can be mounted on the device.

Installation and mounting
Installation is performed directly on the ECOSYS M2635dn printer. It is a mechanical module that connects without additional tools or electrical connections. Installation involves attaching it to the designated location on the device, with detailed mounting instructions provided in the printer’s user manual. No additional software or network configuration is required.

Advantages in operation
By extending the paper capacity by 250 sheets per tray, the need for frequent manual paper reloading is reduced. This leads to higher productivity, especially for longer print jobs. Support for various formats and weights enables flexible use for different printing requirements. Integration into the existing device requires no additional components or configurations, simplifying maintenance and operation.

Features
Type	Paper tray
Brand compatibility	Kyocera
Compatibility	ECOSYS M2635dn
Maximum capacity	250 sheets
Supported media weight(s)	60 - 163 g/m²
Product colour	White
Logistics data
Harmonized System (HS) code	84439990
Media formats
Media types supported	A4, A5, A6
Weight & dimensions
Width	375 mm
Depth	390 mm
Height	100 mm

---
