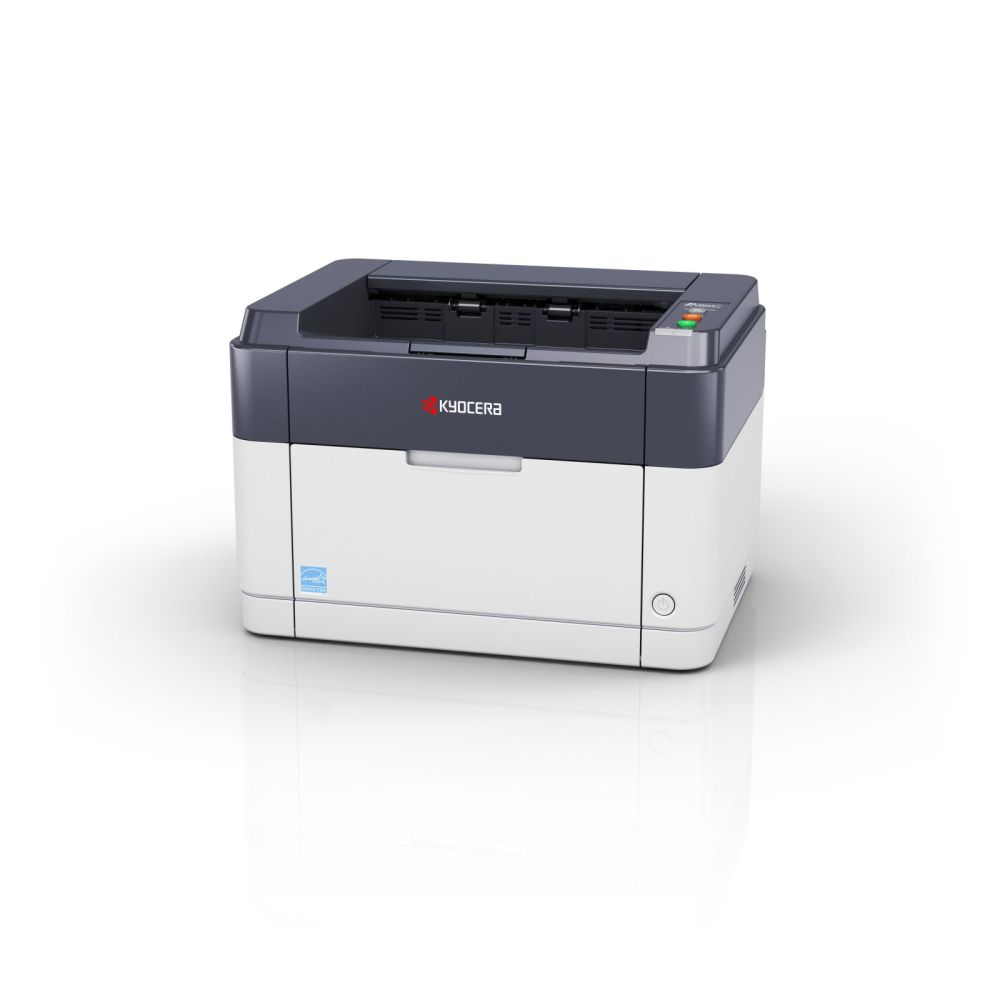

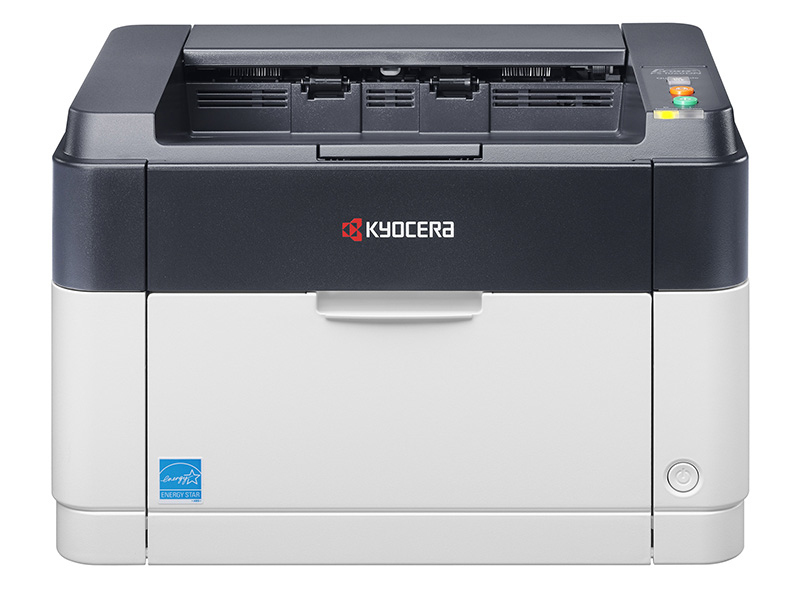

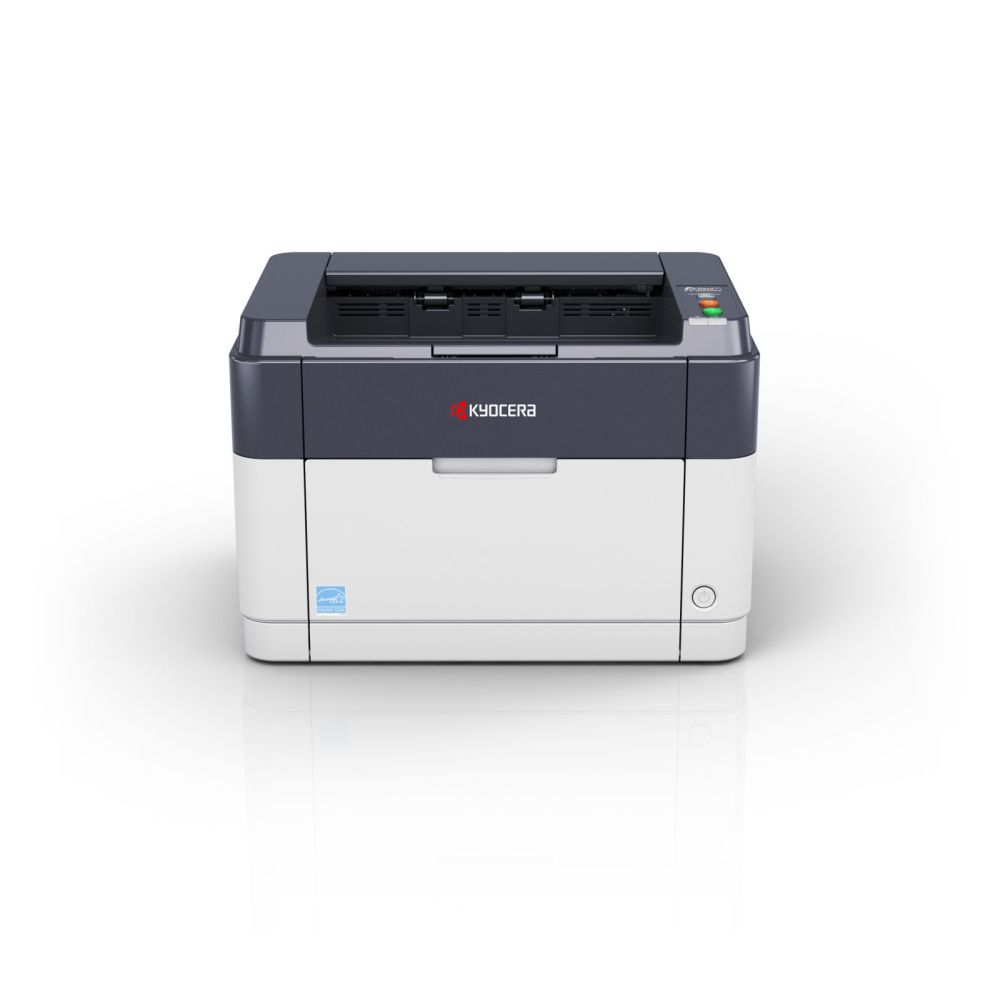

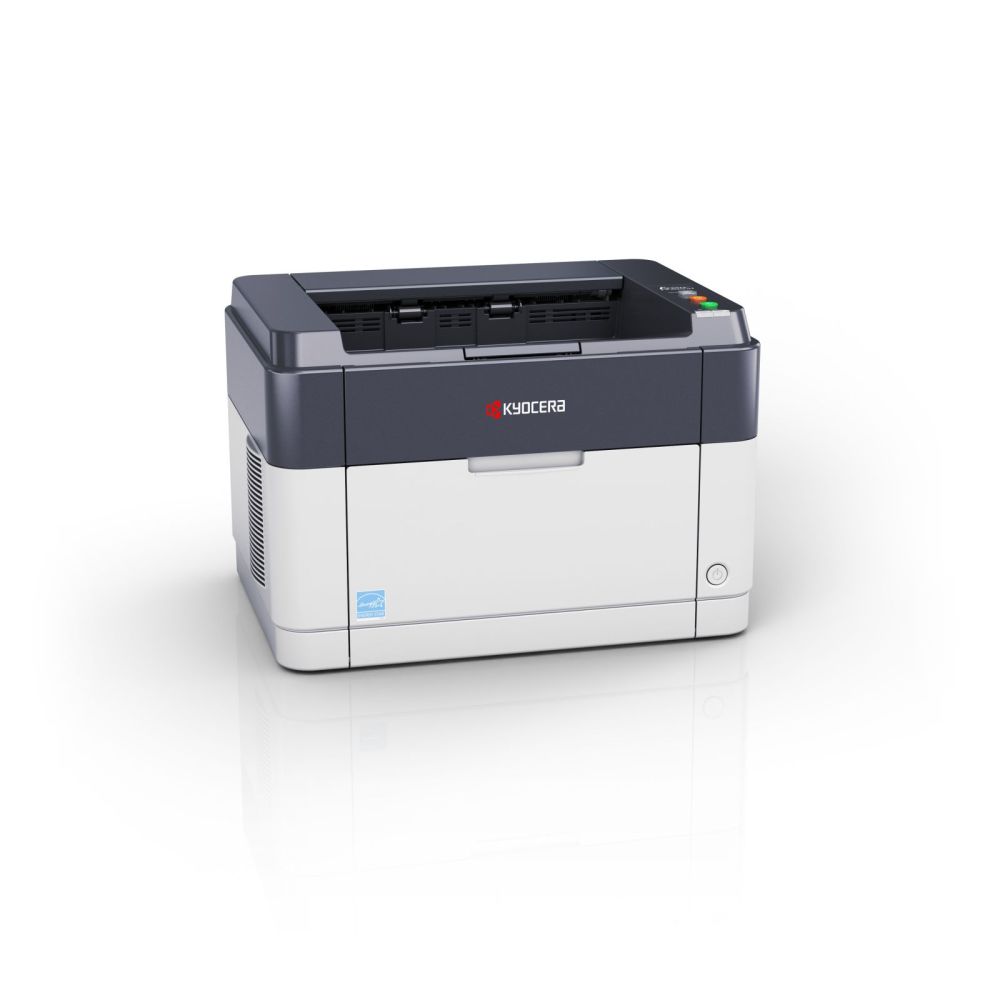

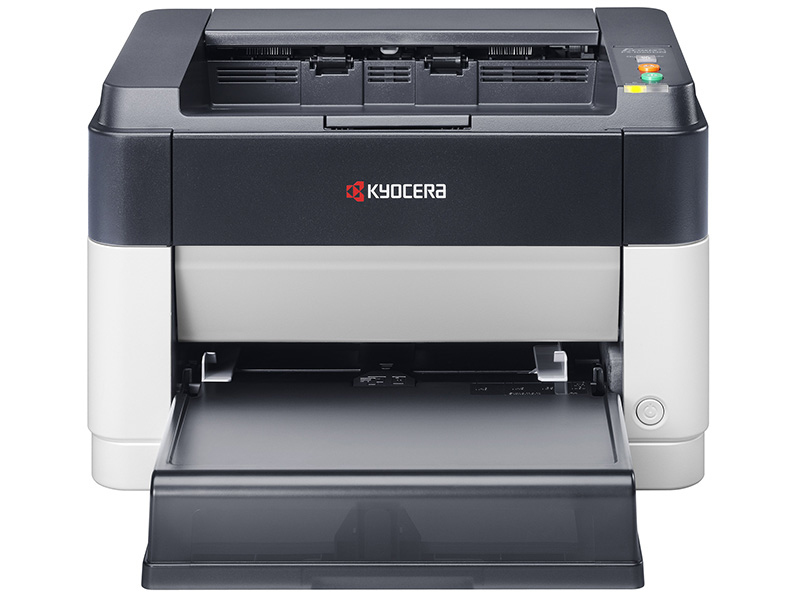

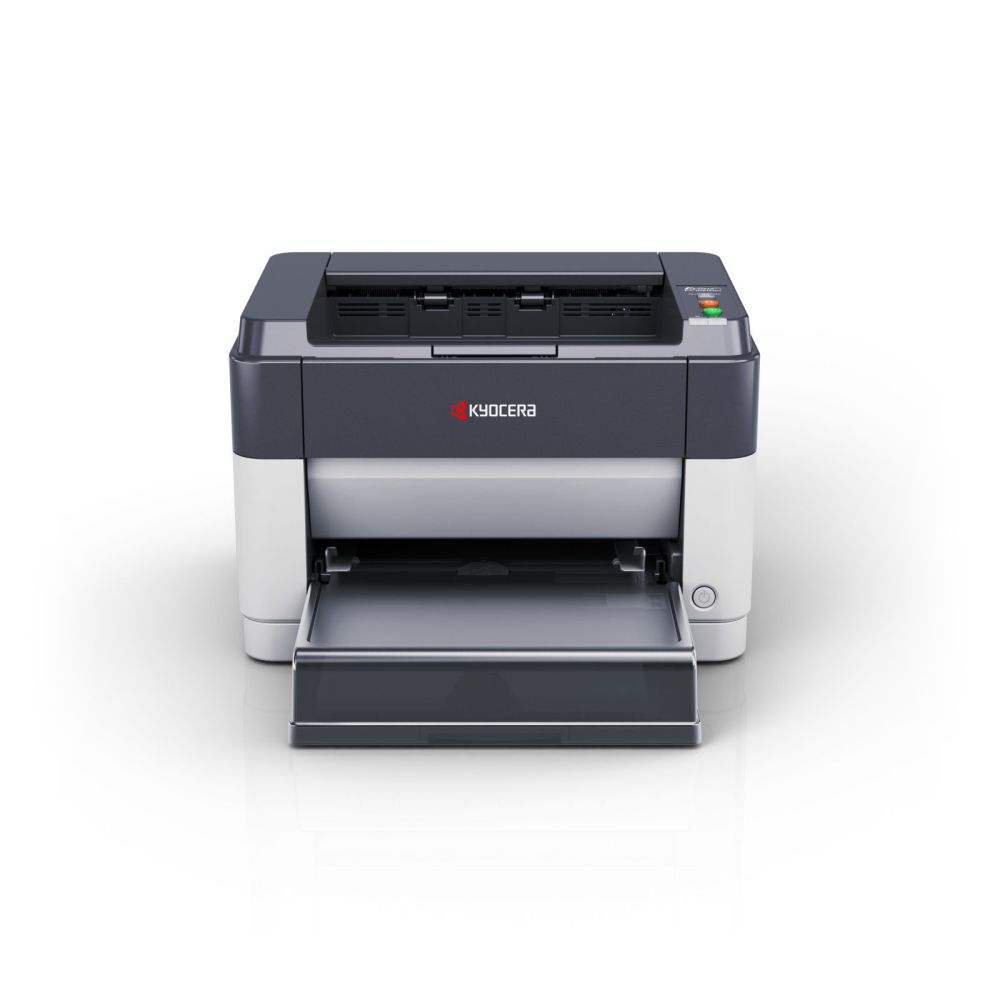

Kyocera 1102M33NL2 FS-1061dn laser printer content_copy

The Kyocera FS-1061DN is a monochrome laser printer from the ECOSYS series, specifically designed for use in small businesses and workgroups in medium-sized enterprises. It combines compact design with high printing performance and integrated network connectivity, enabling efficient and reliable printing at desks or in small offices. The printing technology is based on the ECOSYS principle, standing for ECOlogy, ECOnomy and SYStem printing, ensuring low operating costs and long device lifespan through durable components and a cartridge-free system approach.

Laser printing technology enables high print quality with a maximum resolution of 1800 x 600 DPI, ensuring sharp text and clear graphics. Print speed reaches up to 25 pages per minute in black-and-white mode at standard quality on A4 format, with the first page output within 7.5 seconds. Warm-up time is 16 seconds, allowing quick startup after power-on. Maximum monthly duty cycle is 15,000 pages, with recommended usage between 1,000 and 2,000 pages per month.

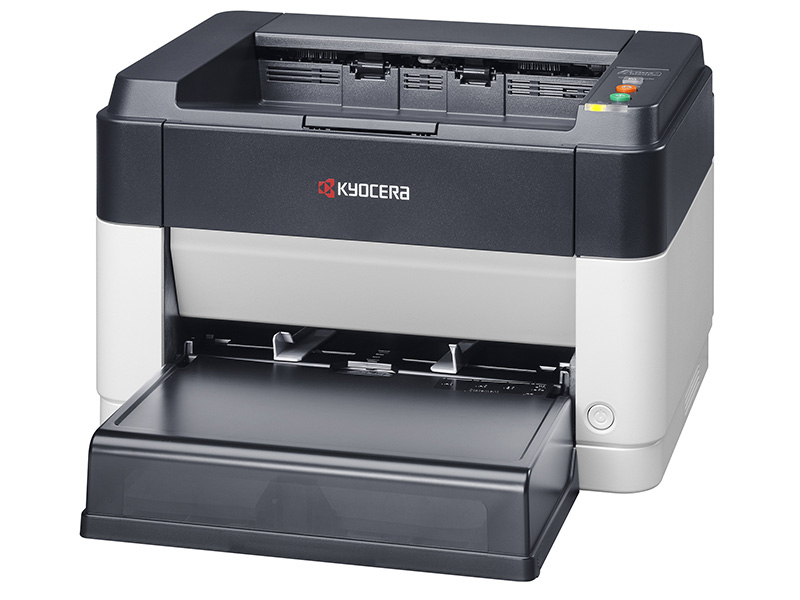

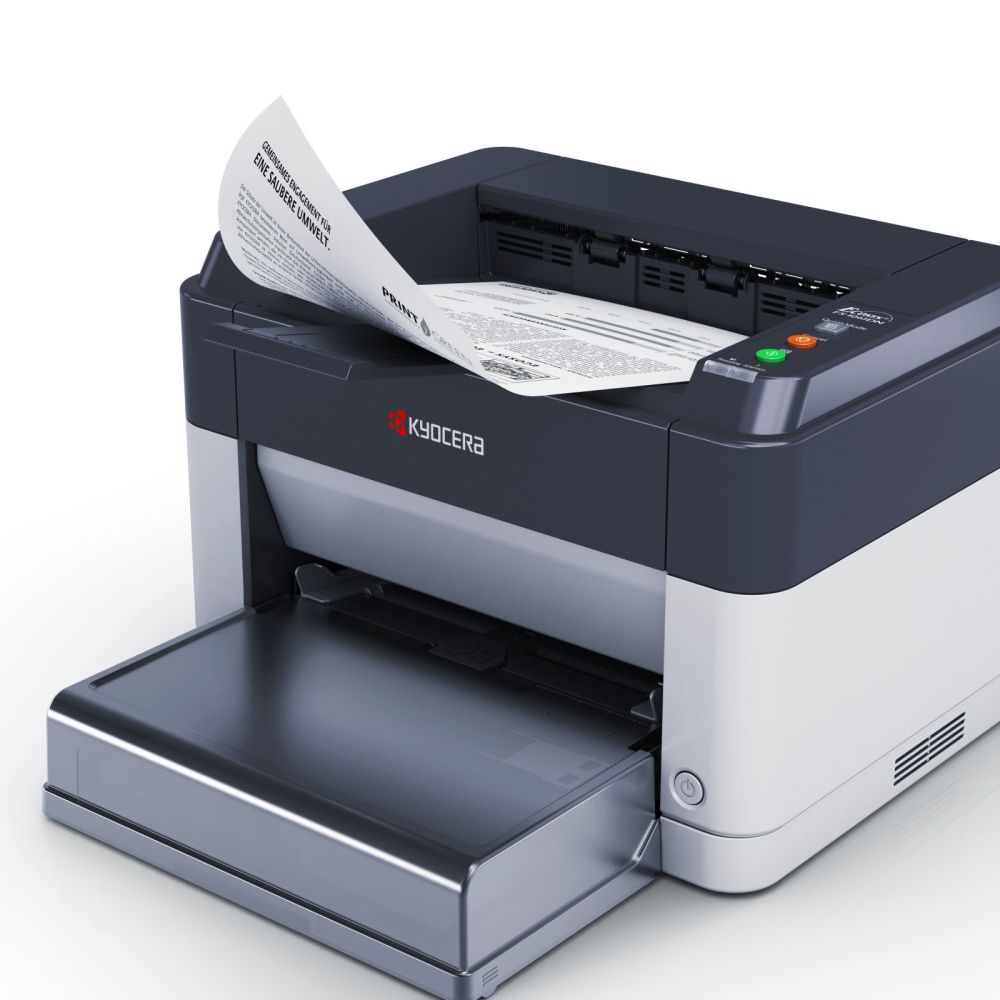

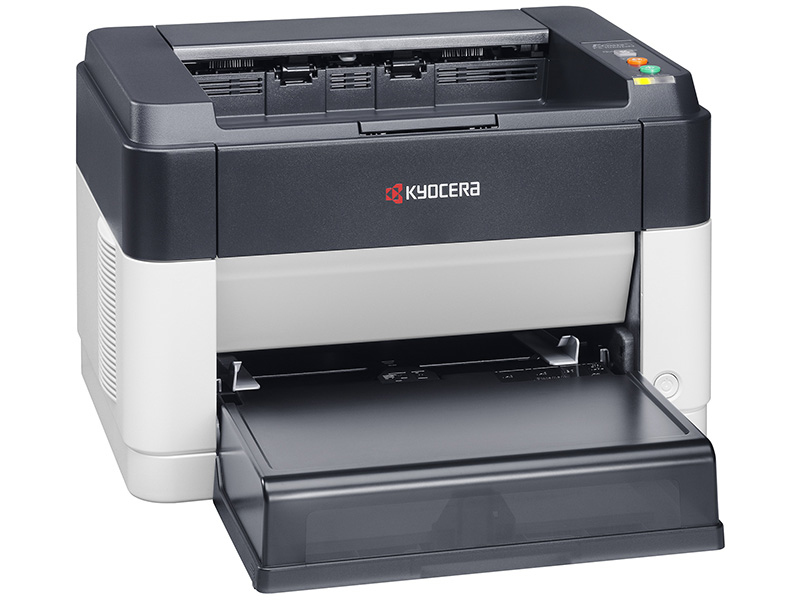

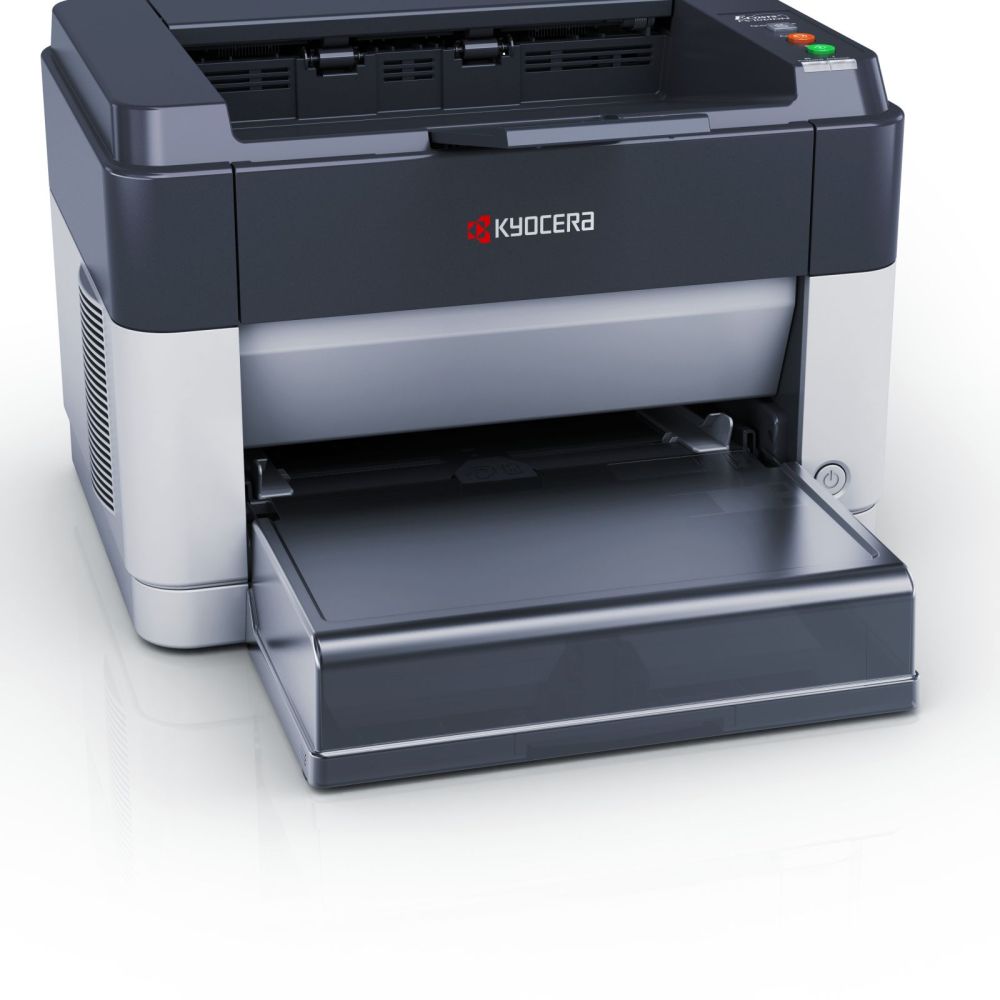

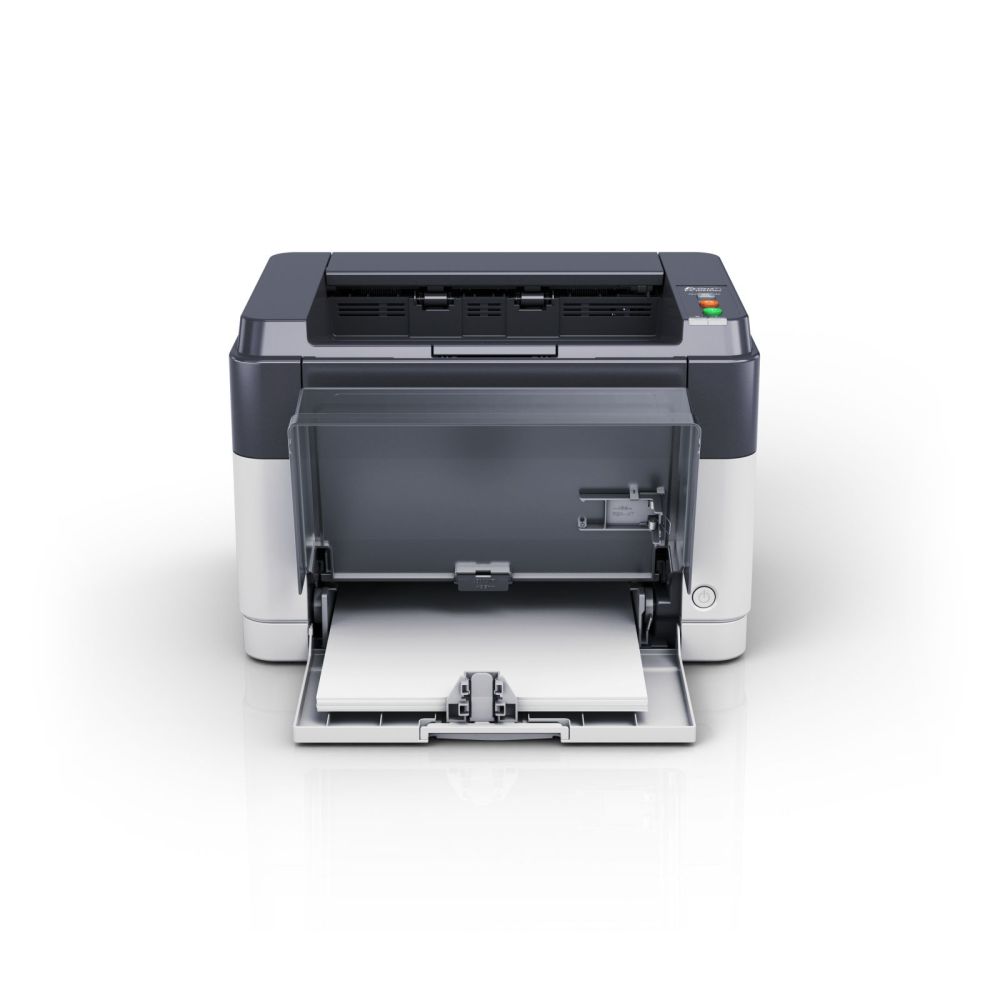

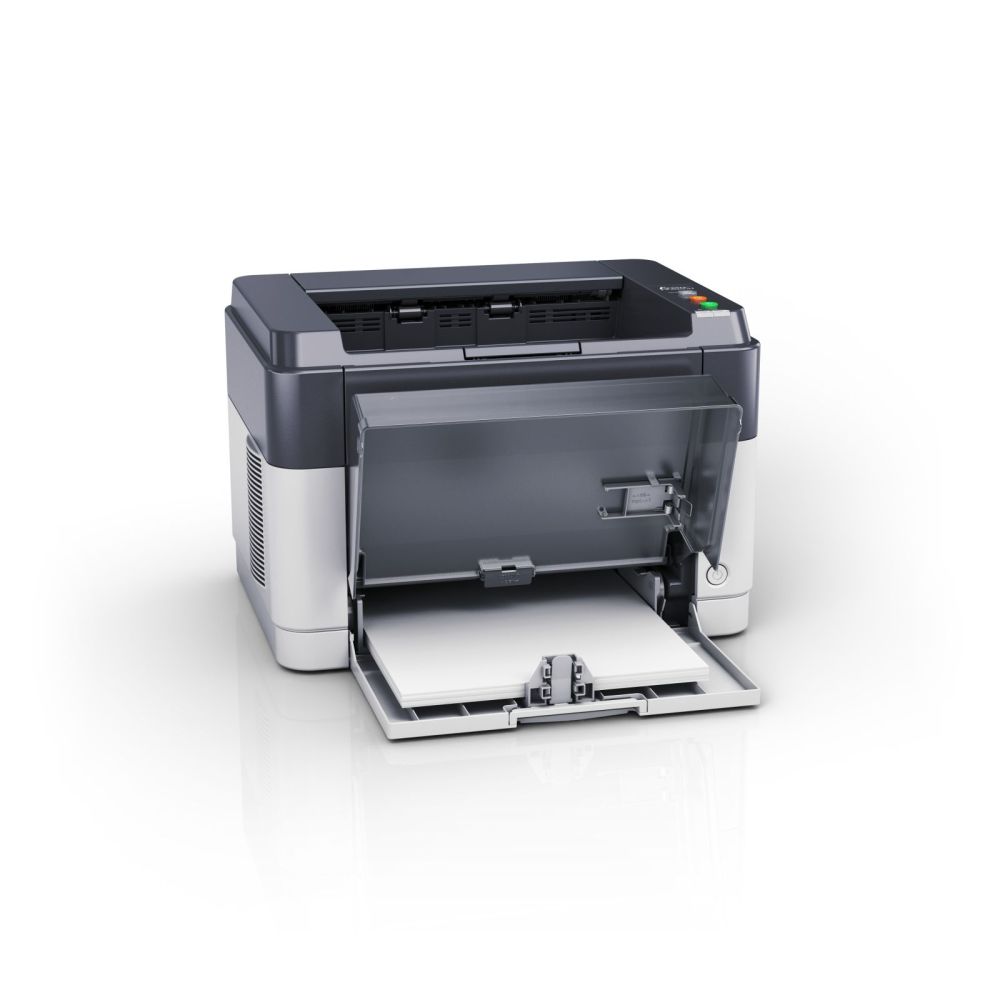

Duplex printing is standard and supports media in the weight range of 50 to 120 g/m². This reduces paper consumption and is particularly suitable for internal documents, reports or presentations. Paper handling includes a 250-sheet tray and a multi-purpose tray for 1 sheet, enabling processing of various media types such as standard paper, A4, A5, A6, B5, B6, Legal and Letter, as well as custom formats within a width range of 70 to 216 mm and length range of 148 to 356 mm. Maximum media weight is 220 g/m² for both the tray and multi-purpose tray.

Network capability is provided via an integrated Ethernet connection (10/100Base-T(X)) and a USB 2.0 port. The printer can thus be directly connected to computers or networks and supports connections to Windows and Mac operating systems, including Mac OS X 10.5 Leopard to 10.14 Mojave. Standard interfaces allow flexible integration into existing IT infrastructures.

Technical performance features include an integrated processor with a clock frequency of 390 MHz and 32 MB RAM. Sound pressure level during printing is 51.2 dB, 49.6 dB in quiet mode, and 29 dB in standby mode. Power consumption is 346 W during printing, 6 W in standby, and 3 W in PowerSave mode. The device complies with TÜV-GS and CE certifications and is awarded the ENERGY STAR certification.

Design and operation feature a compact form factor with dimensions of 358 mm (width) x 276 mm (depth) x 241 mm (height) and a weight of 6.7 kg. Product color is black and white. The device does not include an integrated display. Output capacity is 150 sheets. The delivery scope includes a starter toner cartridge with a yield of 1,000 pages (A4, black) and necessary drivers. An AC power cable is also included.

Compatibility and accessories include the use of toner kit TK-1125, enabling up to 2,100 pages (A4, black). The long-life drum unit is rated for up to 100,000 pages, reducing maintenance costs. ECOSYS technology ensures high reliability and low operating costs through reduced replacement frequency of consumables.

Operational advantages lie in the combination of compact design, high printing performance, integrated network connectivity, and low operating costs. The quiet operation, especially in Quiet Mode, ensures a pleasant working environment. Easy integration into existing systems and support for various operating systems increase the device's flexibility in different work environments.

Design
Market positioning	Home & office
Product colour	Black, White
Certification	TUV-GS, CE
Built-in display
Features
Maximum duty cycle	15000 pages per month
Recommended duty cycle	1000 - 2000 pages per month
Printing colours	Black
Number of print cartridges	1
Page description languages	GDI
Replacement cartridges	TK-1125 (2.100 pagina's)
Input & output capacity
Total number of input trays	1
Total input capacity	250 sheets
Total output capacity	150 sheets
Paper input type	Cassette, Paper tray
Multi-Purpose tray input capacity	1 sheets
Maximum number of input trays	1
Maximum input capacity	250 sheets
Maximum output capacity	150 sheets
Multi-Purpose tray
Logistics data
Harmonized System (HS) code	84433210
Network
Cabling technology	10/100Base-T(X)
Mobile printing technologies	Not supported
Network ready
Wi-Fi
Ethernet LAN
Packaging content
Included cartridge capacity (black)	1000 pages
Cables included	AC
Cartridge(s) included
Drivers included
Packaging data
Package width	438 mm
Package depth	356 mm
Package height	379 mm
Package weight	10 kg
Paper handling
Maximum ISO A-series paper size	A4
Maximum print size	216 x 356 mm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Non-ISO print media sizes	Legal, Letter
Custom media width	70 - 216 mm
Custom media length	148 - 356 mm
Paper tray media weight	60 - 220 g/m²
Multi-Purpose Tray media weight	60 - 220 g/m²
Duplex media weight	50 - 120 g/m²
Performance
Internal memory	32 MB
Maximum internal memory	32 MB
Processor frequency	390 MHz
Sound pressure level (printing)	51.2 dB
Sound pressure level (quiet mode)	49.6 dB
Sound power level (standby)	29 dB
Built-in processor
Ports & interfaces
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	1
Direct printing
USB port
Power
Power consumption (printing)	346 W
Power consumption (standby)	6 W
Power consumption (PowerSave)	3 W
Energy Star Typical Electricity Consumption (TEC)	1.1 kWh/week
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Printing
Duplex printing mode	Auto
Print technology	Laser
Maximum resolution	1800 x 600 DPI
Print speed (black, normal quality, A4/US Letter)	25 ppm
Warm-up time	16 s
Time to first page (black, normal)	7.5 s
Colour
Duplex printing
Sustainability
Sustainability certificates	ENERGY STAR
System requirements
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Windows operating systems supported
Weight & dimensions
Width	358 mm
Depth	276 mm
Height	241 mm
Weight	6.7 kg

---
