KOPP 226405041 Zuleitg GST18 Schuko 5 m
|
-25% 24,00 EUR 31,97 EUR |
|
|
( 28,56 EUR incl. VAT ) ≈ £20.16 | ≈ $26.93 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: 3 pieces | |
| Lieske Part No.: | 1206317 |
|---|---|
| Mfg Part No: | 226405041 |
| UPC/EAN: | 4008224634595 |
| Weight: | 0.636 kg |
Product information for KOPP 226405041:

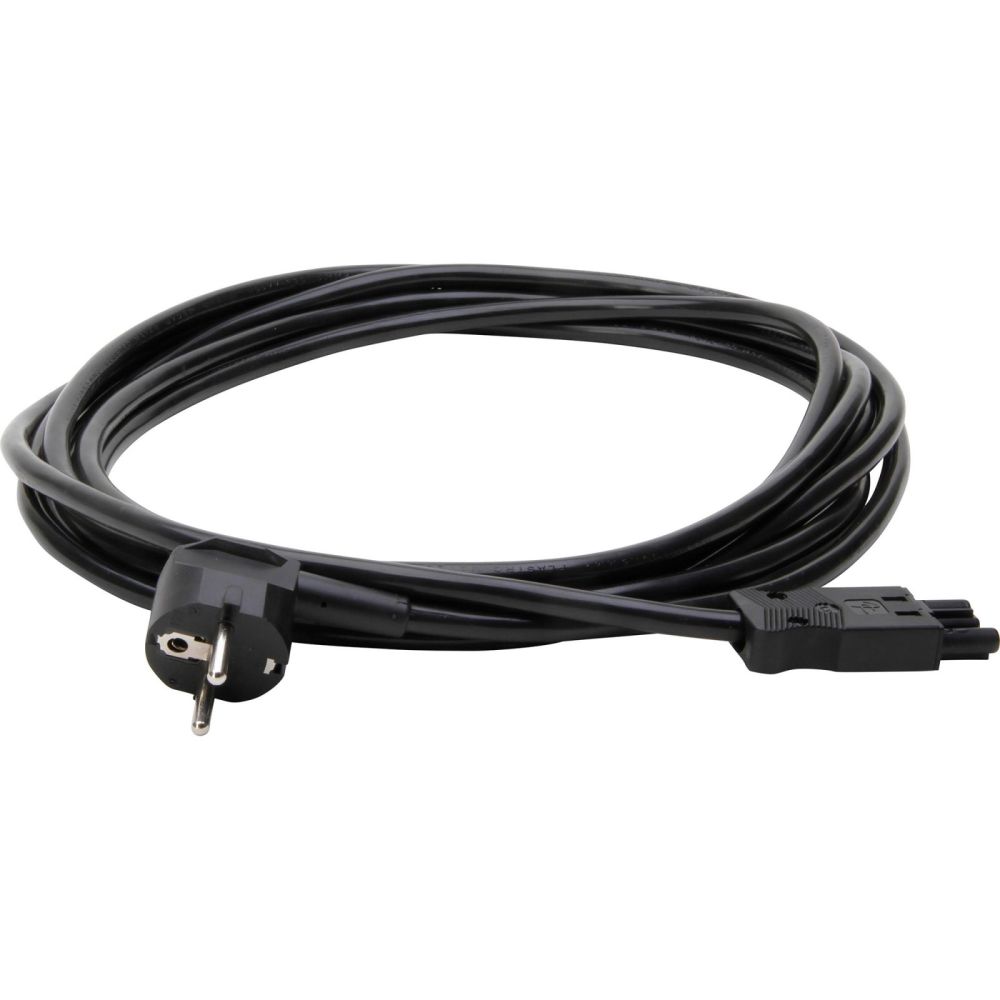

Protective contact cable, plastic, H05VVF3G1.5mm², compatible with GST plug system, colour: black
Technical specifications
Housing colour: black
Nominal conductor cross-section: 1.50 mm²
Number of poles: 3
Degree of contamination: 2
Halogen-free: no
Rated current: 16.00 A
Rated voltage: 250 V
Mechanical coding: yes
Fire load: 0 kWh
Insulation material continuous temperature resistance up to: 70°C
Cable continuous temperature resistance up to: 70°C
Max. operating temperature at conductor: 90°C
Protection class (IP): IP20
Type of locking: none
Sheath colour: black
Surface treatment of contacts: untreated
Fire behaviour according to EN 13501-6: Class: none
Fire behaviour according to EN 13501-6: Smoke development: none
Fire behaviour according to EN 13501-6: Dripping behaviour: none
Fire behaviour according to EN 13501-6: Acid development: none
Pole marking: L, N, PE
Colour of coding/contact insert: black
Type of assembled cable: mains connection cable
Design side 1: mains plug
Design side 2: socket
Conductor end treatment: other
Cable type: H05VV-F
Cable diameter: 8–8.2 mm
RAL number coding/contact insert: 9011
Technical specifications
Housing colour: black
Nominal conductor cross-section: 1.50 mm²
Number of poles: 3
Degree of contamination: 2
Halogen-free: no
Rated current: 16.00 A
Rated voltage: 250 V
Mechanical coding: yes
Fire load: 0 kWh
Insulation material continuous temperature resistance up to: 70°C
Cable continuous temperature resistance up to: 70°C
Max. operating temperature at conductor: 90°C
Protection class (IP): IP20
Type of locking: none
Sheath colour: black
Surface treatment of contacts: untreated
Fire behaviour according to EN 13501-6: Class: none
Fire behaviour according to EN 13501-6: Smoke development: none
Fire behaviour according to EN 13501-6: Dripping behaviour: none
Fire behaviour according to EN 13501-6: Acid development: none
Pole marking: L, N, PE
Colour of coding/contact insert: black
Type of assembled cable: mains connection cable
Design side 1: mains plug
Design side 2: socket
Conductor end treatment: other
Cable type: H05VV-F
Cable diameter: 8–8.2 mm
RAL number coding/contact insert: 9011
| Technical data | |
| Packaging volume | 0.0001m³ |
| Length | 5m |
| Length packaging | 0.330m |
| Harmonization | H05VV-F |
| Outer diameter | 8.2mm |
| Side A | CEE7/7 plug (Schutzkontakt) |
| Variant | Angled |
| Side B | GST18 plug |
| Weight | 0.558kg |
| Height packaging | 0.030m |
| Width packaging | 0.340m |
| UL | |
Questions & answers
What is the delivery time of KOPP 226405041 Zuleitg GST18 Schuko 5 m ?
The article KOPP 226405041 Zuleitg GST18 Schuko 5 m is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of KOPP 226405041 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you KOPP 226405041 Zuleitg GST18 Schuko 5 m always at the best possible price. We can give you a discount of 2% on KOPP 226405041 Zuleitg GST18 Schuko 5 m if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
