KOPP 226403049 Schukozultg 3 m compatible with GST plug system black
|
-25% 19,41 EUR 25,96 EUR |
|
|
( 23,10 EUR incl. VAT ) ≈ £16.23 | ≈ $21.45 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: 3 pieces | |
| Lieske Part No.: | 1206293 |
|---|---|
| Mfg Part No: | 226403049 |
| UPC/EAN: | 4008224634571 |
| Weight: | 0.404 kg |
Product information for KOPP 226403049:

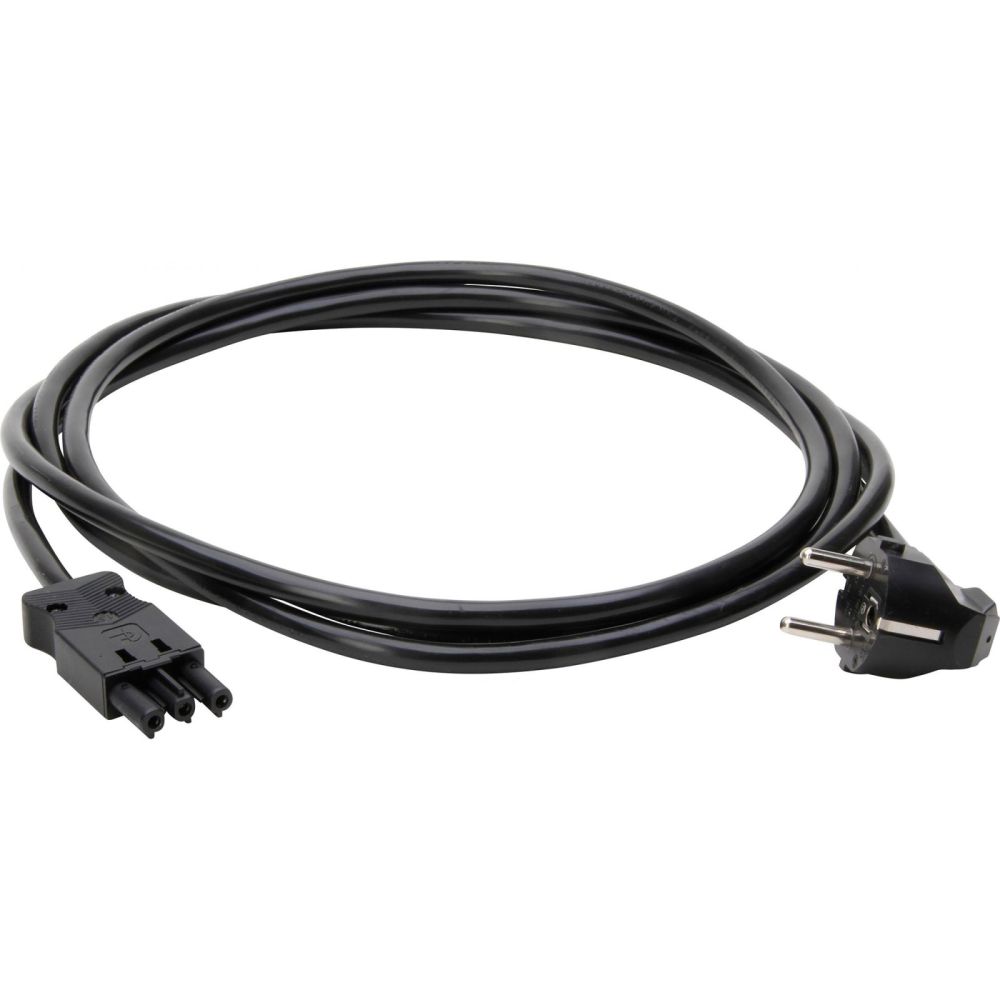

The Kopp protective earth connection cable, type 226403049, is a pre-wired power supply cable with a length of 3 metres, finished in black. It features a conductor nominal cross-section of 1.50 mm² and is manufactured as an H05VV-F cable type, which describes a flexible, double-insulated cable made of PVC material. The cable is intended for indoor use and complies with protection class IP20, meaning it is protected against contact with fingers and against solid foreign objects up to 12.5 mm, but not against water or dust. The maximum operating temperature at the conductor is 90 °C, while the insulation and sheath are heat-resistant up to 70 °C. The rated voltage is 250 V, and the rated current is 16 A, enabling use in standard power supply applications.
Protective earth connection cable is the product type specified here. It is designed for connecting devices to the electrical supply indoors, with the protective earth conductor (PE) ensuring safe grounding. The polarity marking follows L (line), N (neutral), and PE (protective earth), ensuring correct wiring. Mechanical coding is activated, ensuring a secure and unambiguous plug connection, particularly in conjunction with the GST plug system.
GST plug system is the compatibility specification indicated here. The cable is fitted with a GST18 plug on side B, intended for connection to corresponding GST sockets or receptacles. On side A, it features a CEE7/7 plug (protective earth), which is the standard for power supply sockets in Germany and other European countries. The plug on side A is angled, allowing for better positioning and reducing strain on the socket.
H05VV-F is the cable type used here. This type is suitable for flexible applications, particularly in electrical installations where some movement is required. The sheath colour is black, and the coding/contact insert colour corresponds to RAL number 9011, ensuring uniform visual design. The surface treatment of the contacts is untreated, indicating a standard configuration.
The cable is designed for indoor use, as protection class IP20 does not offer weather protection. Pollution degree class 2 means the environment does not contain strongly polluting or aggressive substances, typical for offices, residences, or industrial indoor spaces. The cable is not halogen-free, which must be considered during disposal and in case of fire. The fire load is specified as 0 kWh, indicating low fire load, although it does not include a specific classification according to EN 13501-6.
The cable is classified as a power supply cable, meaning it is intended for direct connection of electrical devices to the building's electrical installation. The conductor end treatment is specified as other, providing no specific information about end finishing. Packaging is in retail format, with packaging dimensions of 0.340 m (length and width) and 0.030 m (height). The packaging volume is 0.0002 m³, and the total weight of the cable is 0.397 kg.
Compatibility and accessories refers to use with the GST plug system, commonly used in many industrial and commercial installations. The cable can be directly plugged into GST sockets or receptacles, with mechanical coding ensuring a secure connection.
Installation and mounting is performed by simply plugging the connectors into the corresponding sockets. The angled design of the CEE7/7 plug on side A facilitates positioning, especially in narrow or deep sockets. The cable is not suitable for outdoor use, as protection class IP20 does not offer weather protection. Installation does not require special tools, as the plugs are inserted directly into the sockets.
Operational advantages include safe and reliable power supply through the integrated protective earth conductor (PE) and mechanical coding, which prevents incorrect insertion. The flexible H05VV-F cable allows for easy handling and installation. Use of the GST plug system provides a standardised and secure connection, particularly in industrial environments. The cable is suitable for a wide range of devices requiring a voltage of 250 V and a current up to 16 A.
Protective earth connection cable is the product type specified here. It is designed for connecting devices to the electrical supply indoors, with the protective earth conductor (PE) ensuring safe grounding. The polarity marking follows L (line), N (neutral), and PE (protective earth), ensuring correct wiring. Mechanical coding is activated, ensuring a secure and unambiguous plug connection, particularly in conjunction with the GST plug system.
GST plug system is the compatibility specification indicated here. The cable is fitted with a GST18 plug on side B, intended for connection to corresponding GST sockets or receptacles. On side A, it features a CEE7/7 plug (protective earth), which is the standard for power supply sockets in Germany and other European countries. The plug on side A is angled, allowing for better positioning and reducing strain on the socket.
H05VV-F is the cable type used here. This type is suitable for flexible applications, particularly in electrical installations where some movement is required. The sheath colour is black, and the coding/contact insert colour corresponds to RAL number 9011, ensuring uniform visual design. The surface treatment of the contacts is untreated, indicating a standard configuration.
The cable is designed for indoor use, as protection class IP20 does not offer weather protection. Pollution degree class 2 means the environment does not contain strongly polluting or aggressive substances, typical for offices, residences, or industrial indoor spaces. The cable is not halogen-free, which must be considered during disposal and in case of fire. The fire load is specified as 0 kWh, indicating low fire load, although it does not include a specific classification according to EN 13501-6.
The cable is classified as a power supply cable, meaning it is intended for direct connection of electrical devices to the building's electrical installation. The conductor end treatment is specified as other, providing no specific information about end finishing. Packaging is in retail format, with packaging dimensions of 0.340 m (length and width) and 0.030 m (height). The packaging volume is 0.0002 m³, and the total weight of the cable is 0.397 kg.
Compatibility and accessories refers to use with the GST plug system, commonly used in many industrial and commercial installations. The cable can be directly plugged into GST sockets or receptacles, with mechanical coding ensuring a secure connection.
Installation and mounting is performed by simply plugging the connectors into the corresponding sockets. The angled design of the CEE7/7 plug on side A facilitates positioning, especially in narrow or deep sockets. The cable is not suitable for outdoor use, as protection class IP20 does not offer weather protection. Installation does not require special tools, as the plugs are inserted directly into the sockets.
Operational advantages include safe and reliable power supply through the integrated protective earth conductor (PE) and mechanical coding, which prevents incorrect insertion. The flexible H05VV-F cable allows for easy handling and installation. Use of the GST plug system provides a standardised and secure connection, particularly in industrial environments. The cable is suitable for a wide range of devices requiring a voltage of 250 V and a current up to 16 A.
| Technical data | |
| Weight | 0.397kg |
| Width packaging | 0.340m |
| Colour | Black |
| Height packaging | 0.030m |
| Length packaging | 0.340m |
| Variant | Angled |
| Side B | GST18 plug |
| Packing | Retail |
| Side A | CEE7/7 plug |
| Outer diameter | 8.2mm |
| Diameter | 3G1.5mm² |
| Harmonization | H05VV-F |
| Packaging volume | 0.0002m³ |
| Length | 3m |
| UL | |
