Klauke R505 crimping die K50er 16-25 mm² for pipe cable lugs/connectors standard version

Your rating:
Average rating
product review for Klauke R505 crimping die K50er 16-25 mm² for pipe cable lugs/connectors standard version
( 4.5 / 5 ) 52 ratings

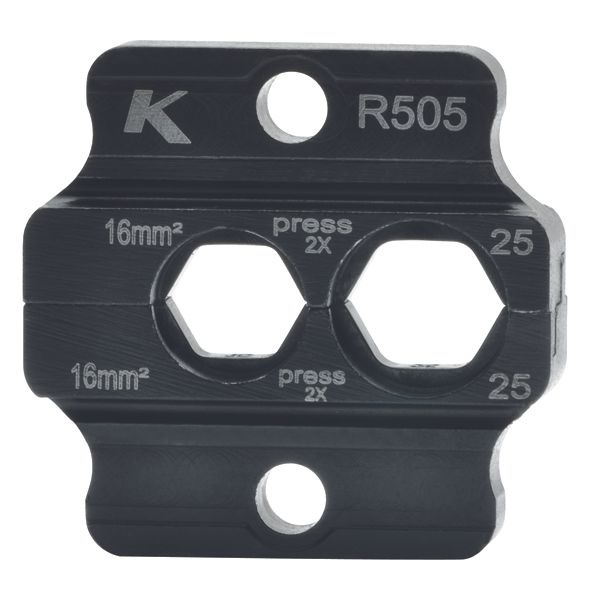

Klauke R505
This image may differ from the desired article.
Klauke R505Klauke R505
72,39 EUR 73,11 EUR
( 86,14 EUR incl. VAT )
≈ £60.59  |  ≈ $79.56
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Klauke R505 crimping die K50er 16-25 mm² for pipe cable lugs/connectors standard version
Lieske Part No.:360738
Mfg Part No: R505
UPC/EAN: 4012078846134
Weight:0.123 kg
Type:R505
Graduated prices net
From piecesPrice per pieces
671,85 EUR
1271,30 EUR
2470,76 EUR
3670,22 EUR

Product information for Klauke R505:

The R505 crimping die from Klauke is a tool accessory for the professional processing of cable lugs and connector elements in the field of electrical installation. It is specifically designed for tube cable lugs and connectors made of copper (Cu) and serves to create a secure and durable connection for conductors in the cross-section range of 16 to 25 mm². The standard version of the crimping die enables precise and powerful crimping, meeting the requirements of electrical engineering. It is used in combination with suitable cable cutters or crimping tools to create a mechanically stable and electrically conductive connection.

Crimping die for cable lugs and connectors
The R505 crimping die is a replacement part for crimping tools, inserted into the tool opening to enable the crimping of cable lugs and connector elements. It is designed for use with tube cable lugs, which have a cylindrical shape and are commonly used in industrial and commercial electrical installations. Crimping is achieved by mechanically deforming the metal body of the lug, thereby securely fixing the conductor inside. The standard version ensures a standardized fit, compatible with common tools.

Copper conductors in cross-section 16–25 mm²
The application range of the R505 crimping die is for copper conductors with a cross-section of 16 to 25 mm². These cross-sections are typical for heavy-duty applications, such as in lighting technology, machine building, or building technology. The precise fit of the crimping die ensures that the crimping is optimally adapted to the conductor cross-section, enabling even force distribution and a durable connection. Using a suitable crimping die is essential to ensure reliable electrical conductivity and mechanical strength.

Tube cable lugs and connectors
The crimping die is specifically designed for tube cable lugs, which feature a cylindrical bore and are used to connect cables to other conductors or connection points. It is also suitable for connectors used to join multiple conductors or to extend cables. The standard version of the crimping die allows universal use in various installation situations without requiring additional adjustments.

Compatibility with crimping tools
The R505 crimping die is intended for use with crimping tools from the Klauke R50 series. These tools are widely used in the electrical industry and offer high precision during crimping. The fit of the die is designed to securely sit in the tool and ensure exact alignment during the crimping process. Using a compatible crimping die is essential to achieve even crimping and a secure connection.

Use in operation
In operation, the R505 crimping die is used in combination with a crimping tool to crimp cable lugs and connectors. Crimping is achieved by mechanically deforming the metal body, thereby securely fixing the conductor inside. The standard version ensures a standardized fit, compatible with common tools. Using a suitable crimping die is essential to ensure reliable electrical conductivity and mechanical strength. The crimping is performed in a single operation, reducing time and effort.

General
ManufacturerKlauke
ApplicationPipe cable lug and connectors
Cross-sectional area16–25 mm²
ModelStandard version


Questions & answers

What is the delivery time of Klauke R505 crimping die K50er 16-25 mm² for pipe cable lugs/connectors standard version?

The article Klauke R505 crimping die K50er 16-25 mm² for pipe cable lugs/connectors standard version is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Klauke R505 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Klauke R505 crimping die K50er 16-25 mm² for pipe cable lugs/connectors standard version always at the best possible price. We can give you a discount of 2% on Klauke R505 crimping die K50er 16-25 mm² for pipe cable lugs/connectors standard version if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Klauke R505 crimping die K50er 16-25 mm² for pipe cable lugs/connectors standard version we can offer you a price of 71,85 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
