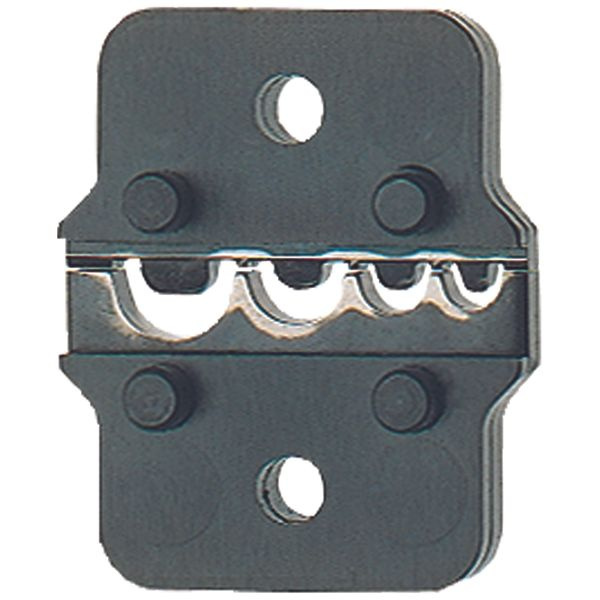

Klauke Q501 crimping die 18-way 0.5–10 mm² for insulated cable connectors pin crimping

Your rating:
Average rating
product review for Klauke Q501 crimping die 18-way 0.5–10 mm² for insulated cable connectors pin crimping
( 4.4 / 5 ) 25 ratings
Klauke Q501
This image may differ from the desired article.
Klauke Q501Klauke Q501
124,45 EUR 125,68 EUR
( 148,10 EUR incl. VAT )
≈ £104.16  |  ≈ $136.77
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Klauke Q501 crimping die 18-way 0.5–10 mm² for insulated cable connectors pin crimping
Lieske Part No.:358284
Mfg Part No: Q501
UPC/EAN: 4012078329118
Weight:0.061 kg
Type:Q501
Graduated prices net
From piecesPrice per pieces
5123,52 EUR
10122,58 EUR
15121,65 EUR
20120,72 EUR

Product information for Klauke Q501:

The Q501 crimping die from Klauke is a tool accessory for processing crimp cable lugs and pin cable lugs in the field of electrical installation. It is specifically designed for the Series 50 and is used for the secure and precise crimping of cable lugs with a cross-section of 0.5 to 10 mm². The die is designed for processing cable lugs according to DIN 46234 (crimp cable lugs) and DIN 46230 (pin cable lugs), as well as crimp connectors according to DIN 46341, with all mentioned standards applying to copper conductors (Cu). Crimping is performed using punch crimping, ensuring a uniform and durable connection.

Applications
The Q501 crimping die is used in professional electrical work, where reliable and standard-compliant connections between cables and conductors are required. It is particularly suitable for work in building electrical systems, industrial plants, and during the installation of enclosures. Processing cable lugs in the cross-section range of 0.5 to 10 mm² covers a broad application range, from fine control wiring to heavier supply lines. The standards DIN 46234, DIN 46230, and DIN 46341 are recognized in the electrical industry as standard connection technology, which is why the die is also used in controlled environments such as inspections or maintenance of electrical installations.

Functions and Equipment in Detail
The Q501 crimping die is designed for use with special crimping pliers or crimping tools from Series 50. It enables punch crimping, in which the crimping punch is inserted into the cable lug and pressed under force to create a secure connection between conductor and lug. The die's fit ensures that the crimping is precisely matched to the geometry of the respective cable lug, guaranteeing an optimal mechanical and electrical connection. Processing is done without additional tools or aids, as the die is directly inserted into the crimping plier.

Technology Explained Simply
Punch crimping is a method in which the crimping punch is inserted into the cable lug and a controlled force is applied to the lug via the crimping plier. This deforms the lug around the conductor, creating a firm, durable connection. The Q501 crimping die is specifically shaped to evenly receive and transmit the crimping force. Processing is completed in a single crimping operation, minimizing the risk of over- or under-crimping. The standards DIN 46234, DIN 46230, and DIN 46341 define the geometric and mechanical requirements for cable lugs, which the die reliably meets.

Compatibility and Accessories
The Q501 crimping die is compatible with crimp cable lugs according to DIN 46234, pin cable lugs according to DIN 46230, and crimp connectors according to DIN 46341. These standards apply to copper conductors (Cu) and are widely used in the electrical industry. The die is designed for Klauke’s Series 50, meaning it can only be used with crimping pliers or crimping tools from this series.

Installation and Mounting
Mounting the crimping die is done by simply inserting it into the Series 50 crimping plier. No additional mounting or adjustment is required. The crimping plier is then operated with the cable lug and the conductor to be crimped. Crimping is performed in a single operation, with the crimping force applied by the plier. After crimping, the cable lug is securely connected to the conductor. No additional tools or aids are required.

Operational Advantages
The Q501 die provides precise and reproducible crimping that complies with DIN 46234, DIN 46230, and DIN 46341 standards. Punch crimping ensures even force distribution, increasing the connection’s service life. Processing is fast and requires no additional aids, reducing working time. Compatibility with Klauke’s Series 50 enables standardized processing in professional workshops and installations. The use of standard cable lugs ensures high safety and reliability in electrical connections.

General
Pressing insertQ501 -
Compatibilitycrimp terminals according to DIN 46234, pin terminals according to DIN 46230, crimp connectors according to DIN 46341 -
Cross-sectional area0,5 - 10 mm²
Potting methodArbour clamping -
Series50 -


Questions & answers

What is the delivery time of Klauke Q501 crimping die 18-way 0.5–10 mm² for insulated cable connectors pin crimping?

The article Klauke Q501 crimping die 18-way 0.5–10 mm² for insulated cable connectors pin crimping is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Klauke Q501 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Klauke Q501 crimping die 18-way 0.5–10 mm² for insulated cable connectors pin crimping always at the best possible price. We can give you a discount of 2% on Klauke Q501 crimping die 18-way 0.5–10 mm² for insulated cable connectors pin crimping if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Klauke Q501 crimping die 18-way 0.5–10 mm² for insulated cable connectors pin crimping we can offer you a price of 123,52 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
