Klauke PGA1 USB adapter

Your rating:
Average rating
product review for Klauke PGA1 USB adapter
( 4.5 / 5 ) 21 ratings

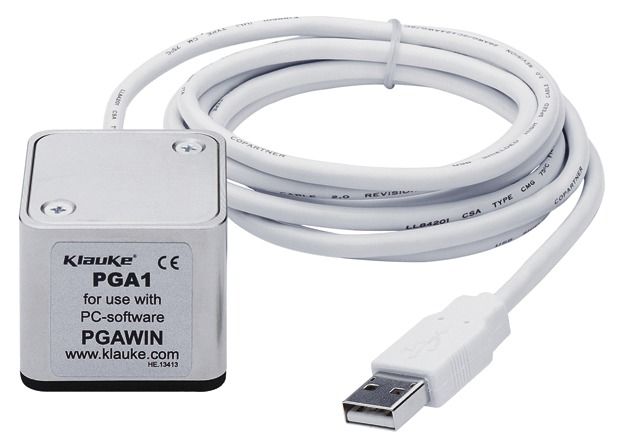

Klauke PGA1
This image may differ from the desired article.
Klauke PGA1Klauke PGA1
-8% 496,28 EUR 540,68 EUR
( 590,57 EUR incl. VAT )
≈ £415.39  |  ≈ $545.41
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Klauke PGA1 USB adapter
Lieske Part No.:149980
Mfg Part No: PGA1
UPC/EAN: 4012078717014
Weight:0.271 kg
Type:PGA1

Product information for Klauke PGA1:

The Klauke PGA1 is a USB adapter specifically developed for data transfer from battery-hydraulic pressing tools. It enables simple connection to a PC via USB interface and is used for evaluation and documentation of pressing processes. The adapter is suitable for tools from the Klauke device series Generation Safety Plus as well as for predecessor models equipped with a multifunction LED. The functionality is based on the Intelligent Pressing System (IPS), which records the pressing process and transmits the data via the adapter to a computer.

Functions and equipment in detail
The PGA1 enables the transfer of pressing and machine data from the tool to a computer. This data can then be evaluated using the free software ipress, which can be downloaded from the website www.klauke.com. The software allows statistical evaluation of average pressing behavior and individual pressing processes. This enables operators to monitor and document the performance and reliability of their tools.

Technology explained simply
The adapter uses the USB interface to establish bidirectional communication between the pressing tool and the PC. Data transfer occurs via the Intelligent Pressing System (IPS), which is integrated into compatible tools. IPS records relevant parameters during the pressing process and stores them in the tool. The PGA1 reads these data and transmits them to the computer, where they can be visualized and analyzed in the ipress software. The software generates test protocols containing date and time, which can be output as PDF documents.

Compatibility and accessories
The Klauke PGA1 is specifically developed for tools from the Generation Safety Plus series, but is also compatible with predecessor models equipped with a multifunction LED. The multifunction LED serves as a visual feedback and is part of the IPS system. Using the adapter requires installation of the ipress software, which is available on the official Klauke website.

Installation and mounting
Installation of the PGA1 is performed by direct connection to the pressing tool and to a PC via USB. No additional mounting or installation work is required. The physical connection is simple to establish, and the software automatically recognizes the device after connection. Documentation of pressing processes begins immediately after establishing the connection.

Advantages in operation
Using the Klauke PGA1 enables precise documentation of pressing processes, which is particularly beneficial in safety-critical applications. Statistical evaluation of pressing behavior helps monitor tool performance and detect potential deviations early. The PDF protocols provide a traceable and time-stable record of inspections, which can be used for quality control and maintenance documentation. The combination of hardware adapter and software enables efficient data management without additional hardware or special connection options.

Areas of application
The PGA1 is used in workshops, assembly areas, and production environments where battery-hydraulic pressing tools are employed. Particularly in industries with high requirements for quality assurance and documentation obligations, such as the automotive industry or machine building, the adapter is a useful tool for monitoring and proving tool functionality. Compatibility with older models extends the range of applications and allows existing tools to be used with modern data processing.

Intelligent Pressing System (IPS)
The IPS is the integrated system in compatible pressing tools that records and stores the pressing process. It is the foundation for the functionality of the PGA1, as only tools with IPS are capable of providing the necessary data. The multifunction LED serves as a visual indicator for operating status and is part of the IPS system. The data transmitted via the PGA1 originate directly from the IPS memory of the tool.

Data transfer and software
Data transfer occurs via the USB interface, with the software ipress receiving, processing, and visualizing the data. The software is free and can be downloaded from the official Klauke website. Test protocols are output as PDF documents containing the date and time of the test. This enables traceable and archivable documentation of pressing processes.

The software ipress is required for evaluating the data transmitted via the PGA1. The software enables statistical evaluation of pressing behavior and creation of test protocols. Data transfer occurs via the USB interface, with no additional drivers or special configurations required. Compatibility with Windows-based systems is assumed, as no specific operating system requirements are mentioned.

General
InterfaceUSB
CompatibilityKlauke Generation Safety Plus and predecessor models with multifunction LED
FunctionData transmission of press and machine data
Softwareipress (free via www.klauke.com)
Data formatPDF document
Documentationtest report with date and time
SystemIntelligent Pressing System (IPS)
ApplicationStatistical evaluation of crimping performance


Questions & answers

What is the delivery time of Klauke PGA1 USB adapter?

The article Klauke PGA1 USB adapter is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Klauke PGA1 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Klauke PGA1 USB adapter always at the best possible price. We can give you a discount of 2% on Klauke PGA1 USB adapter if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
