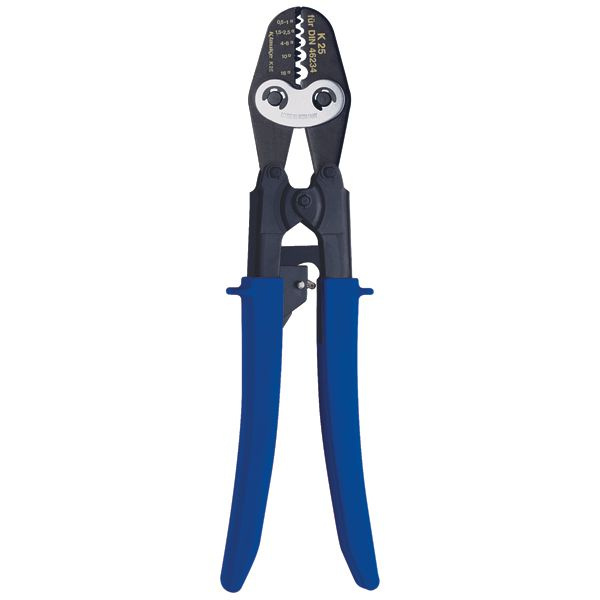

Klauke K25 crimping tool 0.5–16 mm² for insulated cable connections, notched crimping

Your rating:
Average rating
product review for Klauke K25 crimping tool 0.5–16 mm² for insulated cable connections, notched crimping
( 4.6 / 5 ) 17 ratings
Klauke K25
This image may differ from the desired article.
Klauke K25Klauke K25
166,06 EUR 173,05 EUR
( 197,61 EUR incl. VAT )
≈ £138.99  |  ≈ $182.50
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >5 pieces
1x Klauke K25 crimping tool 0.5–16 mm² for insulated cable connections, notched crimping
Lieske Part No.:952234
Mfg Part No: K25
UPC/EAN: 4012078027908
Weight:0.72 kg
Type:K25
Graduated prices net
From piecesPrice per pieces
5164,81 EUR
10163,57 EUR
15162,32 EUR
20161,08 EUR

Product information for Klauke K25:

The Klauke crimping tool type K25 is a specialised tool for producing crimped connections in electrical installation. It is used for secure and precise connection of cable lugs with conductors in the cross-section range of 0.5 to 16 mm². The tool is designed for processing crimp cable lugs according to DIN 46234 as well as pin cable lugs according to DIN 46230. It is also suitable for nickel and stainless steel tube cable lugs and connectors up to 6 mm². The crimping tool enables exact cross-section assignment through permanent markings on the tool, ensuring unambiguous assignment of the crimp openings to the respective conductor cross-sections.

Applications

The crimping tool K25 is used in the field of electrical installation, particularly for processing insulated cable connections. It is suitable for work indoors and outdoors, where a stable and durable electrical connection is required. The tool is used for mounting cable lugs on copper conductors, with the tool opening precisely matching the respective cross-section. Application areas include, for example, installation of power lines, switchgear, distribution boxes and other electrical systems, where a mechanically secure and electrically conductive connection is necessary.

Functions and equipment in detail

The tool features a spring-assisted tool opening, which facilitates opening of the crimping tool and ensures even force transmission. The locking device ensures that the crimping movement proceeds in a controlled and even manner, achieving a constant crimping pressure. This results in reproducible and high-quality crimped connections. The permanent marking on the tool enables quick and error-free assignment of the crimp openings to the respective conductor cross-sections, minimising the risk of incorrect crimping.

Technology explained simply

The crimping process carried out with the K25 creates a mechanical connection between the cable lug and the conductor through plastic deformation. The conductor is inserted into the crimp opening and pressed under pressure by the tool, causing the inner wall of the cable lug to enclose the conductor. The spring-assisted opening reduces the physical effort required by the user and ensures smooth movement. The locking device prevents uncontrolled opening during the crimping process, ensuring the quality of the connection. The markings on the tool are permanently affixed and allow for quick identification of the correct opening for the respective conductor cross-section.

Compatibility and accessories

The crimping tool K25 is compatible with crimp cable lugs according to DIN 46234 and pin cable lugs according to DIN 46230. It can also be used for nickel and stainless steel tube cable lugs and connectors up to 6 mm². The tool openings are designed for cross-sections from 0.5 to 16 mm².

Mounting and installation

Mounting is carried out by simply inserting the conductor into the appropriate crimp opening and then operating the crimping tool. The spring-assisted opening facilitates insertion of the conductor. The locking device ensures that the crimping process proceeds in a controlled manner. After crimping, the connection is visually inspected to ensure the marking on the tool is correctly positioned and the connection is secure.

Advantages in operation

The K25 offers high precision in producing crimped connections, leading to increased reliability of the electrical connection. The spring-assisted opening reduces physical strain on the user. The locking device ensures uniform crimping results, securing the quality of the connection. The permanent marking enables quick and error-free assignment of the crimp openings, increasing work speed. The tool is robust and designed for professional use.

General
Application rangeCrimp cable lugs DIN 46234, pin cable lugs DIN 46230, nickel and stainless steel tube cable lugs, connectors up to 6 mm²
Conductor cross section0,5-16 mm²
FunctionKeyed compression
Tool openingspring-assisted
Markingpermanently marked on tool
Locking deviceYes


Questions & answers

What is the delivery time of Klauke K25 crimping tool 0.5–16 mm² for insulated cable connections, notched crimping?

The article Klauke K25 crimping tool 0.5–16 mm² for insulated cable connections, notched crimping is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Klauke K25 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Klauke K25 crimping tool 0.5–16 mm² for insulated cable connections, notched crimping always at the best possible price. We can give you a discount of 2% on Klauke K25 crimping tool 0.5–16 mm² for insulated cable connections, notched crimping if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Klauke K25 crimping tool 0.5–16 mm² for insulated cable connections, notched crimping we can offer you a price of 164,81 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
