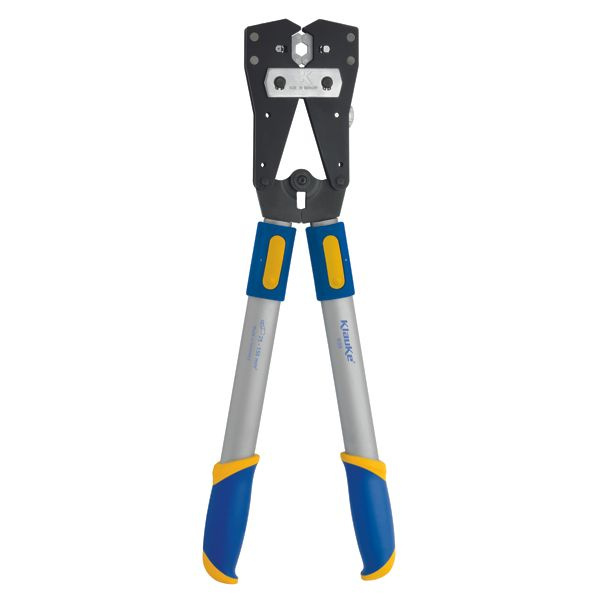

Klauke K09 crimping tool 25–150 mm² for insulated cable connections

Your rating:
Average rating
product review for Klauke K09 crimping tool 25–150 mm² for insulated cable connections
( 4.4 / 5 ) 8 ratings
Klauke K09
This image may differ from the desired article.
Klauke K09Klauke K09
419,52 EUR 437,18 EUR
( 499,23 EUR incl. VAT )
≈ £351.14  |  ≈ $461.05
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Klauke K09 crimping tool 25–150 mm² for insulated cable connections
Lieske Part No.:500714
Mfg Part No: K09
UPC/EAN: 4012078027779
Weight:2.99 kg
Type:K09
Graduated prices net
From piecesPrice per pieces
4416,37 EUR
8413,23 EUR
12410,08 EUR
16406,93 EUR

Product information for Klauke K09:

The K09 crimping tool from Klauke is a specialised tool for crimping pipe cable lugs and connectors of standard design in cross-sections ranging from 25 to 150 mm². It is used in electrical contracting and industrial electrical installation for secure and durable connections between cables and terminal lugs or other connecting elements. The tool features a mechanical drive that operates efficiently and requires little maintenance, making it suitable for frequent use.

Crimping tool
The K09 is a crimping tool specifically designed for processing insulated cable connections. It enables precise and even crimping of cable lugs, ensuring a reliable electrical and mechanical connection. Crimping is achieved via a mechanical lever mechanism that transmits the required force without the need for additional aids such as hydraulics or electric motors.

Functions and equipment in detail
A key feature of the K09 is its provision of rotatable profile discs. These allow adaptation to various cross-sections within the specified range of 25 to 150 mm². The profile discs are marked with permanent indicators to ensure exact matching of each cross-section to the correct crimping position. This minimises the risk of incorrect crimping or inadequate connections.

Technology explained clearly
The mechanical drive of the crimping tool operates without electrical or hydraulic support. Force is generated manually by operating the lever, with the design ensuring that the required crimping force can be produced with minimal physical effort. The rotatable profile discs ensure optimal fit for each cable lug, resulting in even and complete crimping. The permanent markings on the discs prevent errors when selecting the correct crimping position.

The K09 is designed for use with pipe cable lugs and connectors of standard design. These components are widely used in electrical installation and require precise crimping to ensure a stable electrical connection. The tool is not intended for other cable types or special variants such as flat or insulated connectors that do not conform to standard design.

Mounting and installation
The K09 crimping tool is operated manually. Installation involves inserting the cable lug into the appropriately marked profile disc and actuating the lever until crimping is complete. No additional tools or aids are required. Handling is simple and does not require special training, as the markings on the profile discs support correct positioning.

Advantages in operation
Thanks to its low-maintenance mechanical drive, the K09 is particularly suitable for daily use in electrical contracting. The rotatable profile discs with permanent markings ensure high precision and reduce error rates during crimping. The force-saving design reduces physical strain on the user, improving work speed and connection quality. The tool is robust and suitable for use in various environments within the electrical trade.

General
Application areaConduit cable lugs and connectors, standard version
Cross-sectional area25-150 mm²
DriveMechanical
Profile discsRotatable
Markingpermanent


Questions & answers

What is the delivery time of Klauke K09 crimping tool 25–150 mm² for insulated cable connections?

The article Klauke K09 crimping tool 25–150 mm² for insulated cable connections is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Klauke K09 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Klauke K09 crimping tool 25–150 mm² for insulated cable connections always at the best possible price. We can give you a discount of 2% on Klauke K09 crimping tool 25–150 mm² for insulated cable connections if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Klauke K09 crimping tool 25–150 mm² for insulated cable connections we can offer you a price of 416,37 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
