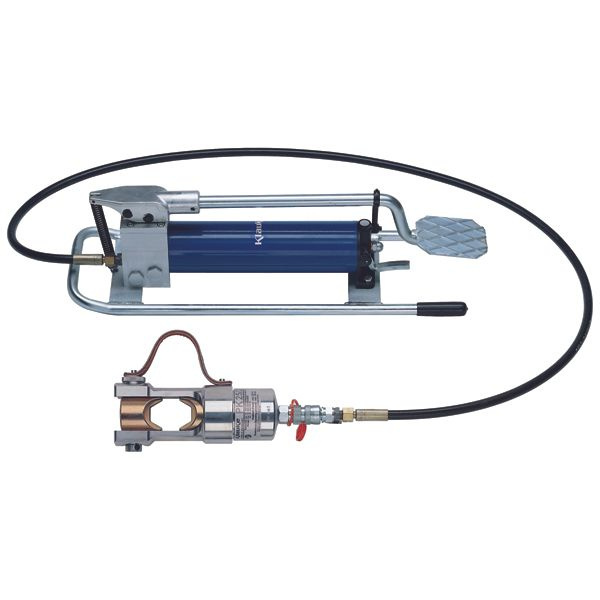

Klauke HK252 hydraulic press head with foot pump 16–625 mm²

Your rating:
Average rating
product review for Klauke HK252 hydraulic press head with foot pump 16–625 mm²
( 4.5 / 5 ) 38 ratings
Klauke HK252
This image may differ from the desired article.
Klauke HK252Klauke HK252
-8% 4.242,70 EUR 4.622,31 EUR
( 5.048,81 EUR incl. VAT )
≈ £3,551.14  |  ≈ $4,662.73
plus delivery charges: 235,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Klauke HK252 hydraulic press head with foot pump 16–625 mm²
Lieske Part No.:312591
Mfg Part No: HK252
UPC/EAN: 4012078341875
Weight:27.551 kg
Type:HK252

Product information for Klauke HK252:

The Klauke HK252 is a hydraulic crimping tool, specifically designed for crimping cable lugs and other electrical connectors in the field of electrical installation. The device features a hydraulic system with a crimping force of 250 kN, making it suitable for demanding applications in industrial and craft environments. Operation is performed via a foot pump with two-stage hydraulics, enabling efficient and force-saving handling. The first stage provides rapid volume displacement, while the second stage generates the necessary high pressure for actual crimping. This system reduces physical strain on the operator and increases work speed.

Applications
This tool is intended for interchangeable crimping dies of series 25, particularly for wide crimping. The crimping dies are designed in H-shape and feature a quick-release coupling, allowing for rapid change without tools. In the non-pressurized state, the crimping die is rotatable 360°, ensuring flexible positioning when working at different angles or in confined spaces. Applications include the installation of cable lugs, screw terminals, and other electrical connection components, especially in electrical installation, building technology, and industrial electrotechnics.

Functions and Equipment in Detail
The crimping die is equipped with a quick-release coupling, enabling easy exchange of crimping dies without additional tools. The H-shape of the crimping die ensures even force distribution and precise crimping. The 360° rotatability in the non-pressurized state facilitates positioning the tool in hard-to-reach locations. An integrated manual return mechanism can also be operated under high pressure, allowing the crimping process to be terminated precisely or the crimping die to be reset. This is particularly useful when working in confined spaces or when processing multiple connectors in sequence.

Technology Explained Simply
The hydraulic technology of the HK252 is based on the principle of pressure transmission through fluid. The foot pump generates pressure, which is transmitted via a hydraulic system to the crimping die. The two-stage hydraulics enable rapid volume displacement in the first stage, followed by a high-pressure phase in the second stage, which generates the actual crimping force. The crimping force of 250 kN is sufficient to securely and durably crimp robust cable lugs and other connectors. The hydraulic transmission ensures uniform force development, guaranteeing high-quality connections.

Compatibility and Accessories
The tool is designed for interchangeable crimping dies of series 25, intended for wide crimping. The quick-release coupling allows the use of various crimping dies, depending on the type of connector being processed. Compatibility with series 25 ensures broad applicability in various installation scenarios. The delivery includes a hydraulic hose with a length of 2 meters (model HS22) and a steel sheet metal case with wheels (model MKU), which safely transports and stores the tool.

Assembly and Installation
Assembly of the tool is performed by connecting the crimping die to the hydraulic pump via the integrated hydraulic hose. The quick-release coupling allows for simple and fast exchange of the crimping die. The foot pump is placed on the floor, with positioning made flexible by the 360° rotatability of the crimping die. Operation is performed via pedal actuation, with the two-stage hydraulics enabling controlled force development. The integrated manual return function allows for precise resetting of the crimping die even under pressure.

Advantages in Operation
The HK252 offers a high crimping force of 250 kN, sufficient for robust connections. The two-stage hydraulics reduce physical strain on the operator and increase work speed. The quick-release coupling and 360° rotatability of the crimping die enable flexible and efficient work, especially in confined or hard-to-reach areas. The integrated manual return provides additional control and safety. The tool is designed for use in electrical installation and industrial electrotechnics, with the use of interchangeable crimping dies of series 25 ensuring broad applicability. Delivery with hydraulic hose and steel sheet metal case with wheels facilitates transport and storage.

hydraulic system, crimping force, two-stage hydraulics, quick-release coupling, crimping die H-shape, manual return

General
Compression force250 kN
Press head shapeH-shape
Rotatability of crimping head360° in the non-pressurized state
Scope of deliveryhydraulic hose 2m (HS22), steel sheet metal case with wheels (MKU)
Hydraulic systemYes
Foot pumpYes
Two-stage hydraulic systemYes
Rapid couplingYes
Manual returnYes


Questions & answers

What is the delivery time of Klauke HK252 hydraulic press head with foot pump 16–625 mm²?

The article Klauke HK252 hydraulic press head with foot pump 16–625 mm² is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Klauke HK252 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Klauke HK252 hydraulic press head with foot pump 16–625 mm² always at the best possible price. We can give you a discount of 2% on Klauke HK252 hydraulic press head with foot pump 16–625 mm² if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
