Klauke HK12042 hand hydraulic crimping tool 16–400 mm²

Your rating:
Average rating
product review for Klauke HK12042 hand hydraulic crimping tool 16–400 mm²
( 4.7 / 5 ) 20 ratings
Klauke HK12042
This image may differ from the desired article.
Klauke HK12042Klauke HK12042
-8% 2.894,65 EUR 3.153,65 EUR
( 3.444,63 EUR incl. VAT )
≈ £2,422.82  |  ≈ $3,181.22
plus delivery charges: 148,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Klauke HK12042 hand hydraulic crimping tool 16–400 mm²
Lieske Part No.:528710
Mfg Part No: HK12042
UPC/EAN: 4012078443173
Weight:10.241 kg
Type:HK12042

Product information for Klauke HK12042:

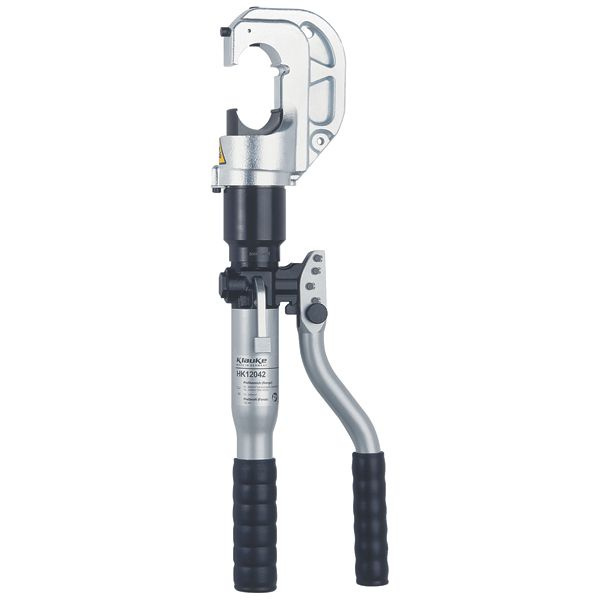

The Klauke press tool HK12042 is a hand-hydraulic tool for wide crimping of cable lugs and other electrical connectors. It is specifically designed for use with interchangeable press inserts of series 13 and enables up to 60 % fewer crimping operations compared to tools with a nominal force of 6 t. The tool features an open C-shaped press head with an opening width of 42 mm, which is pivotally mounted to ensure flexible positioning during installation. The housing is made of high-quality aluminium, contributing to a low overall weight and facilitating handling.

Wide crimping enables even force distribution across the entire cross-section of the material being crimped, improving connection quality and reducing the number of required crimping operations. This is particularly advantageous when processing cable lugs with larger cross-sections in the range of 16 to 400 qmm. The 2-stage hydraulics provide a fast approach stroke, accelerating positioning, and a power stroke that efficiently builds up the crimping force. After crimping, an automatic return stroke increases work speed. A manual return stroke can also be used if required.

Environmentally friendly hydraulic oil, which is biologically rapidly degradable, is used in the tool to minimise environmental impact. The tool is suitable for use in electrical installation and industrial applications where reliable and efficient connection technology is required. The C-shape of the press head provides good access to the parts being processed, especially in tight installation areas.

The tool is supplied with a steel sheet box that provides space for 15 pairs of press inserts (model MK12042). This box serves for orderly storage and protects the inserts from contamination and damage. The use of interchangeable inserts from series 13 allows flexible adaptation to various cross-sections and materials.

The hydraulic operation ensures precise and controlled force transmission, which is necessary for even crimping. The combination of a lightweight aluminium housing and hydraulic force transmission makes the tool easy to handle while remaining powerful. The pivotable C-shape of the press head supports work at different angles and positions, facilitating installation in complex setups.

The use of biodegradable hydraulic oil meets modern requirements for environmentally compatible working tools. Thus, the tool is not only functional but also ecologically designed. The automatic return function reduces physical strain on the user and increases productivity.

Compatibility with press inserts of series 13 enables broad application in electrical installation, particularly for processing cable lugs and other connection elements. The tool design is configured to meet requirements for safe and durable connections.

Mounting and installation are performed by simply inserting the desired press insert into the press head. Hydraulic actuation is carried out via a hand lever, enabling force transmission. The pivotable C-shape of the press head allows adaptation to different installation conditions. The use of the steel sheet box ensures structured storage of the inserts.

Operation of the tool is efficiently designed through the 2-stage hydraulics and the automatic return function. The reduced number of crimping operations due to wide crimping reduces working time and improves connection quality. The use of environmentally friendly hydraulic oil contributes to sustainability.

General
Pressing processBroad crimping
Opening width42 mm
Press head shapeC-shape
Housing materialAluminium
Hydraulic system2-stage hydraulic system
ReturnAutomatic
Hydraulic oilbiologically rapidly degradable
Compatibilityreplaceable inserts series 13
Scope of deliverySteel sheet box with space for 15 pairs of press inserts (MK12042)


Questions & answers

What is the delivery time of Klauke HK12042 hand hydraulic crimping tool 16–400 mm²?

The article Klauke HK12042 hand hydraulic crimping tool 16–400 mm² is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Klauke HK12042 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Klauke HK12042 hand hydraulic crimping tool 16–400 mm² always at the best possible price. We can give you a discount of 2% on Klauke HK12042 hand hydraulic crimping tool 16–400 mm² if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
