Klauke HD13300 crimping die HK13er 300 mm² for crimp cable lugs/connectors 6-sided

Your rating:
Average rating
product review for Klauke HD13300 crimping die HK13er 300 mm² for crimp cable lugs/connectors 6-sided
( 4.7 / 5 ) 9 ratings

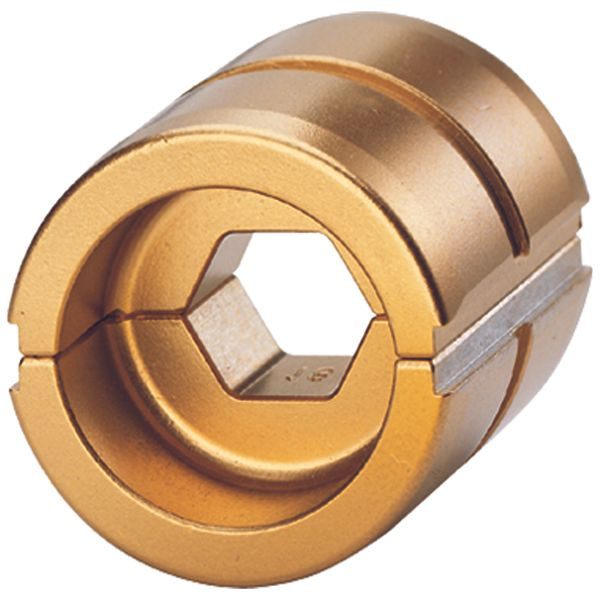

Klauke HD13300
This image may differ from the desired article.
Klauke HD13300Klauke HD13300Klauke HD13300
170,05 EUR 171,74 EUR
( 202,36 EUR incl. VAT )
≈ £142.33  |  ≈ $186.88
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Klauke HD13300 crimping die HK13er 300 mm² for crimp cable lugs/connectors 6-sided
Lieske Part No.:440112
Mfg Part No: HD13300
UPC/EAN: 4012078339643
Weight:0.131 kg
Type:HD13300
Graduated prices net
From piecesPrice per pieces
5168,77 EUR
10167,50 EUR
15166,22 EUR
20164,95 EUR

Product information for Klauke HD13300:

The HD13300 crimping die from Klauke belongs to series 13 and is specifically designed for use with cable lugs and connector components in the field of electrical installation. It serves as tool accessory for crimping tools and enables precise and secure crimping of cable lugs as well as crimp connectors made of copper (Cu). The application is in the context of electrical connection work, particularly for cross-sections of 300 mm², where a stable and durable connection is required.

Applications
The crimping die is designed for crimp cable lugs according to DIN 46235 and for crimp connectors according to DIN 46267, part 1. These standards define the geometric and mechanical requirements for cable lugs and connectors used in electrical installation in indoor and outdoor environments. Crimping is carried out using tools that ensure the required crimping force to guarantee a reliable electrical and mechanical connection. The application area includes particularly the installation of cables with a cross-section of 300 mm², used in high-performance systems, industrial plants, or in the supply of large buildings.

Functions and Equipment in Detail
The HD13300 crimping die is designed in a hexagonal shape, ensuring optimal fit with the corresponding cable lugs and connector profiles. The shape ensures that the crimping force is evenly distributed across the contact surface, achieving homogeneous crimping and a consistent connection result. The material selection and manufacturing technology of the crimping die are designed to ensure high resistance to wear and deformation, enabling long service life and high reliability in operation.

Technology Explained Simply
The crimping die is inserted into a crimping tool equipped with mechanical or hydraulic force transmission. During crimping, the cable lug or connector is placed into the die and pressed under pressure by the tool. The hexagonal shape of the die ensures that the crimping force acts precisely on the designated surfaces of the cable lug or connector profile. This prevents uneven deformation and ensures stable electrical conductivity and mechanical strength. Crimping is completed in a single operation, reducing installation time and minimizing error potential.

Compatibility and Accessories
The HD13300 crimping die is specifically designed for crimp cable lugs according to DIN 46235 and crimp connectors according to DIN 46267, part 1. These standards are widely used in the electrical industry and guarantee uniform quality and fit. The die is therefore compatible with all tools designed for series 13 and can be used in combination with appropriate crimping tools.

Installation and Mounting
Installation is carried out by inserting the crimping die into the corresponding crimping tool. The tool must be designed for series 13 to ensure secure and correct positioning of the die. After insertion, the cable lug or connector is placed into the die and the tool is actuated. Crimping is performed via the mechanical or hydraulic force transmission of the tool. It is important that the crimping tool provides the required crimping force for a cross-section of 300 mm² to ensure a secure connection.

Operational Advantages
The HD13300 crimping die offers high precision in crimping, resulting in an even and durable connection. The hexagonal shape ensures optimal force distribution, minimizing the risk of cracks or insufficient crimping. The use of components compliant with standards (DIN 46235, DIN 46267) ensures high quality and reliability. The long service life of the die reduces replacement needs and lowers operating costs. Crimping is performed quickly and efficiently, reducing installation time and increasing work productivity.

General
Series13
Cross section300 mm²
Suitable forcrimp cable lugs according to DIN 46235, crimp connectors according to DIN 46267, part 1


Questions & answers

What is the delivery time of Klauke HD13300 crimping die HK13er 300 mm² for crimp cable lugs/connectors 6-sided?

The article Klauke HD13300 crimping die HK13er 300 mm² for crimp cable lugs/connectors 6-sided is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Klauke HD13300 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Klauke HD13300 crimping die HK13er 300 mm² for crimp cable lugs/connectors 6-sided always at the best possible price. We can give you a discount of 2% on Klauke HD13300 crimping die HK13er 300 mm² for crimp cable lugs/connectors 6-sided if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Klauke HD13300 crimping die HK13er 300 mm² for crimp cable lugs/connectors 6-sided we can offer you a price of 168,77 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
