Klauke HD1325 crimping die HK13er 25 mm² for crimp cable lugs/connectors 6-sided

Your rating:
Average rating
product review for Klauke HD1325 crimping die HK13er 25 mm² for crimp cable lugs/connectors 6-sided
( 4.5 / 5 ) 10 ratings

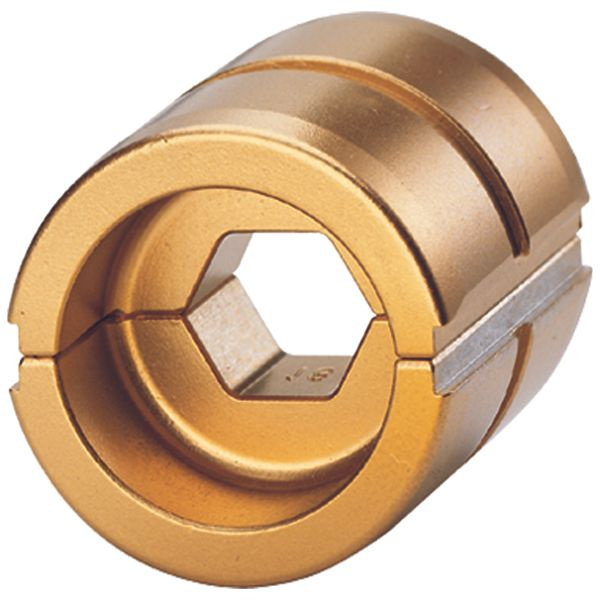

Klauke HD1325
This image may differ from the desired article.
Klauke HD1325Klauke HD1325Klauke HD1325
170,05 EUR 171,74 EUR
( 202,36 EUR incl. VAT )
≈ £142.33  |  ≈ $186.88
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Klauke HD1325 crimping die HK13er 25 mm² for crimp cable lugs/connectors 6-sided
Lieske Part No.:466767
Mfg Part No: HD1325
UPC/EAN: 4012078031400
Weight:0.221 kg
Type:HD1325
Graduated prices net
From piecesPrice per pieces
5168,77 EUR
10167,50 EUR
15166,22 EUR
20164,95 EUR

Product information for Klauke HD1325:

The HD1325 crimping die from Klauke belongs to series 13 and is specifically designed for processing crimp cable lugs and crimp connectors. It is used in electrical installation and cable construction to create secure and durable cable connections. The die is used in combination with a suitable cable shear or crimping tool, which holds the crimping die and applies the necessary crimping force to connect the conductor with the cable lug or connector. The construction of the crimping die enables precise shaping of the connection to ensure optimal electrical and mechanical conductivity.

Crimping die for use in crimping tools is a central component in the processing of cable lugs and connectors. The HD1325 is designed for cross-sections of 25 mm² and adapts to the geometric requirements of the corresponding components. It is specifically developed for crimp cable lugs according to DIN 46235 and crimp connectors according to DIN 46267, part 1, made of copper (Cu). These standards define the dimensions and requirements for connection components to ensure uniform and secure processing.

Cable lugs and crimp connectors made of copper are widely used in electrical installation due to their high electrical conductivity and mechanical stability. The HD1325 crimping die enables precise shaping of the connection, achieving a tight and correct fit between the cable and the lug. This prevents loose connections, oxidation, and increases the safety of the installation. Using a specific crimping die such as HD1325 ensures that the crimp shape is exactly matched to the geometry of the cable lug or connector, which is crucial for a reliable connection.

Technology explained clearly: The crimping die works in principle like a forming tool inserted into the crimping tool. During processing, the cable is inserted into the cable lug, and the crimping tool presses the crimping die against the lug, compressing the lug onto the conductor. The shape of the crimping die ensures that the crimp shape fits exactly, avoiding over- or under-crimping. The hexagonal shape of the crimping die enables a secure and stable connection that remains intact even under mechanical stress.

Compatibility and accessories: The HD1325 crimping die is designed for crimp cable lugs according to DIN 46235 and crimp connectors according to DIN 46267, part 1. These standards apply to cable lugs and connectors made of copper, which are standard in electrical installation. The die is designed for cable cross-sections of 25 mm², making it suitable for medium to large conductors in industrial and commercial electrical installations.

Installation and mounting: The crimping die is inserted into the corresponding crimping tool designed for series 13. The crimping tool must have the correct shape and fit for the HD1325 to ensure proper processing. Installation involves inserting the crimping die into the tool and then crimping the cable lug or connector onto the cable. The crimping force must comply with the requirements of the standards and the tool manufacturer to achieve a secure connection.

Operational advantages: Using the HD1325 ensures a precise and reproducible connection that guarantees electrical conductivity and mechanical stability. Compliance with DIN 46235 and DIN 46267, part 1, ensures compatibility with other components and meets the requirements of electrical installation. The hexagonal shape of the crimping die provides a secure connection that remains intact under load. Processing is quick and reliable, reducing working time and improving installation quality.

General
Pressing insertHD1325 -
Series13 -
Cable cross-section25 mm²
Suitable forcrimp cable lugs according to DIN 46235, crimp connectors according to DIN 46267, part 1 -


Questions & answers

What is the delivery time of Klauke HD1325 crimping die HK13er 25 mm² for crimp cable lugs/connectors 6-sided?

The article Klauke HD1325 crimping die HK13er 25 mm² for crimp cable lugs/connectors 6-sided is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Klauke HD1325 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Klauke HD1325 crimping die HK13er 25 mm² for crimp cable lugs/connectors 6-sided always at the best possible price. We can give you a discount of 2% on Klauke HD1325 crimping die HK13er 25 mm² for crimp cable lugs/connectors 6-sided if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Klauke HD1325 crimping die HK13er 25 mm² for crimp cable lugs/connectors 6-sided we can offer you a price of 168,77 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
