Klauke HD13150 crimping die HK13er 150 mm² for crimp cable lugs/connectors 6-sided

Your rating:
Average rating
product review for Klauke HD13150 crimping die HK13er 150 mm² for crimp cable lugs/connectors 6-sided
( 4.6 / 5 ) 13 ratings

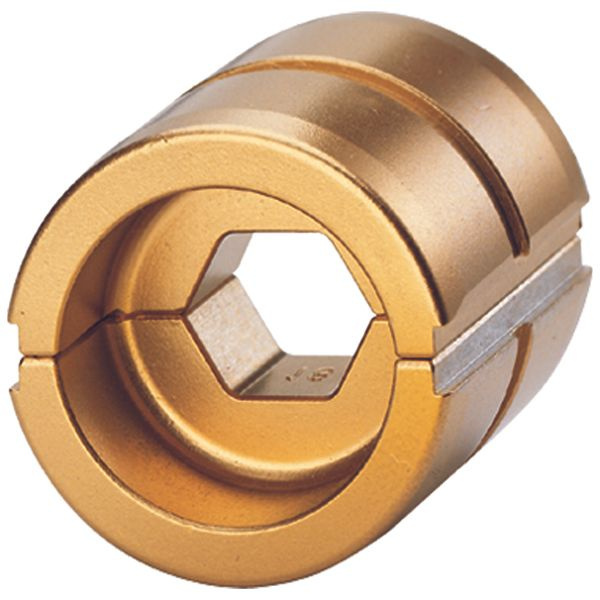

Klauke HD13150
This image may differ from the desired article.
Klauke HD13150Klauke HD13150Klauke HD13150
170,05 EUR 171,74 EUR
( 202,36 EUR incl. VAT )
≈ £142.33  |  ≈ $186.88
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Klauke HD13150 crimping die HK13er 150 mm² for crimp cable lugs/connectors 6-sided
Lieske Part No.:278373
Mfg Part No: HD13150
UPC/EAN: 4012078031462
Weight:0.201 kg
Type:HD13150
Graduated prices net
From piecesPrice per pieces
5168,77 EUR
10167,50 EUR
15166,22 EUR
20164,95 EUR

Product information for Klauke HD13150:

The HD13150 crimping die from Klauke belongs to Series 13 and is specifically designed for use with cable lugs and connector components in the field of electrical installation. It is designed for cross-sections of 150 mm² and is used to create secure and durable connections between copper conductors and crimp cable lugs in accordance with DIN 46235, as well as with crimp connector components in accordance with DIN 46267, Part 1. These standards define the geometric and mechanical requirements for connection parts to ensure a reliable electrical and mechanical connection. The die is used in tools designed for crimping cable lugs and connector profiles, with the shape of the crimping die matched to the hexagonal profiles of the components being processed.

Crimping die for use in tools for connecting cables and conductors. The Series 13 from Klauke is a standard in the electrical industry for processing copper conductors with medium to high cross-sections. The crimping die HD13150 is specifically designed for a cross-section of 150 mm², making it suitable for applications in industrial electrical engineering, machine building, or the installation of high-current conductors. Processing is done by crimping the cable lugs or connectors, creating a firm, durable, and corrosion-resistant connection.

Technology explained clearly: The crimping die operates on the principle of mechanical deformation. During processing, the cable lug or connector is placed into the tool with the crimping die and subjected to pressure. This causes the material of the lug or connector profile to be plastically deformed, allowing it to tightly enclose the conductor. The shape of the crimping die — here hexagonal — is precisely matched to the geometry of the components being processed, ensuring uniform and complete deformation. This prevents loose or insufficiently crimped connections, which could lead to increased resistance, overheating, or failures.

Compatibility and accessories: The HD13150 crimping die is designed for crimp cable lugs according to DIN 46235 and crimp connectors according to DIN 46267, Part 1. These standards apply to copper conductors (Cu) and define the dimensions and mechanical requirements for connection parts. Compatibility is limited to the standards mentioned; other components that do not conform to these standards are not intended for use with this crimping die.

Installation and mounting: The die is used in a suitable crimping tool designed for Series 13. Installation involves inserting the crimping die into the tool, aligning the hexagonal opening with the shape of the cable lug or connector profile being processed. Processing is carried out under controlled pressure to ensure uniform deformation.

Advantages in operation: Using the HD13150 crimping die ensures a mechanically stable and electrically conductive connection that meets the requirements of DIN 46235 and DIN 46267. The precise fit minimizes the risk of insufficiently crimped connections, increasing the safety and reliability of the installation. Processing is quick and precise, reducing working time during installation. The connection is durable and resistant to mechanical stress and environmental influences, such as those encountered in industrial or outdoor installations.

Note: Batteries or other accessories are not included in the delivery scope unless explicitly stated.

General
Series13
Cross section150 mm²
Suitable forCrimp cable lugs according to DIN 46235, crimp connectors according to DIN 46267 Part 1


Questions & answers

What is the delivery time of Klauke HD13150 crimping die HK13er 150 mm² for crimp cable lugs/connectors 6-sided?

The article Klauke HD13150 crimping die HK13er 150 mm² for crimp cable lugs/connectors 6-sided is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Klauke HD13150 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Klauke HD13150 crimping die HK13er 150 mm² for crimp cable lugs/connectors 6-sided always at the best possible price. We can give you a discount of 2% on Klauke HD13150 crimping die HK13er 150 mm² for crimp cable lugs/connectors 6-sided if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Klauke HD13150 crimping die HK13er 150 mm² for crimp cable lugs/connectors 6-sided we can offer you a price of 168,77 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
