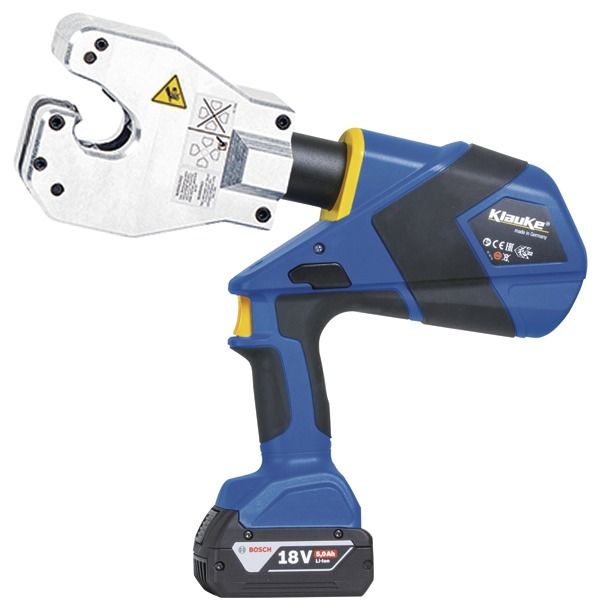

Klauke EK60VPCFB pressing tool battery-hydr. Four mandrel open 10-240sqmm Bosch 5Ah

The patented centering system guarantees optimal pressing results at all times. With automatic return stop (ARS) for fast pressing cycles. Suitable for pressing tubular cable lugs and connectors, standard version and fine and extra-fine-stranded conductors up to 240 mm². Four-mandrel pressing with patented centering system, no inserts required. Open pressing head, rotatable. Electronic control and monitoring of the pressing process. Integrated pressure measurement with optical and acoustic signals in the event of an error. Evaluation function via Bluetooth, optical interface and USB adapter. One-button operating concept for controlling all tool functions. Ergonomic 2-component plastic housing with soft inserts. Balanced center of gravity for easy handling. LED for work area lighting. Powerful 18V Li-Ion battery with very high capacity. Powerful motors for maximum working speed. 2-stage hydraulics with fast forward and power stroke. Energy saving function by switching off the motor after the pressing process has been completed. Quick motor stop for high user safety. Automatic return after pressing is complete. Manual return if required. Automatic return stop (ARS) for position control during multiple pressings. LED display for displaying tool data. Multifunctional LED for maintenance display, battery charge level display and for data transfer via USB adapter. Environmentally friendly hydraulic oil, rapidly biodegradable. Scope of delivery: Battery 18 V / 5.0 Ah, Li-Ion (90 Wh) (RALB2EU), quick charger for 18V Li-Ion batteries, 230 V (LGLB1EU), plastic case (KK120L).
Type: EK60VPCFB
