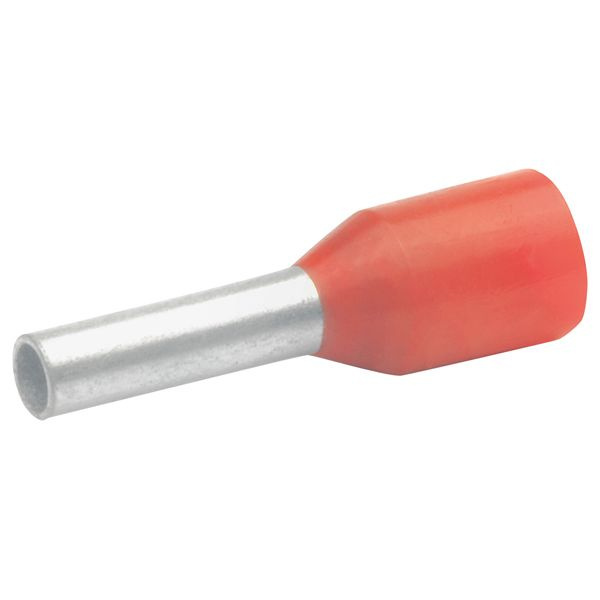

Klauke 47110 wire end ferrule insulated 1 mm² 10 mm red DIN 46228-4 Cu galvanically zinc-plated content_copy

The wire end ferrule 47110 from Klauke is an insulated end ferrule for fine- and extra-fine stranded conductors, particularly for cables according to DIN EN 60228 class 5 and 6. It ensures a secure and durable connection of cable conductors at electrical connection points, where the insulation provides electrical isolation and increases mechanical stability. The end ferrule is specifically designed for use in installations requiring reliable and fast assembly, for example in building electrotechnics or industrial plants.

Applications

The wire end ferrule 1.0–10 mm² is suitable for use in electrical installations where fine- and extra-fine stranded copper conductors are processed. It is frequently used in electrical installations, for wiring of enclosures or in industrial electrotechnics. The colour coding according to DIN 46228 part 4 enables unambiguous assignment of conductor cross-sections, simplifying assembly and maintenance. The halogen-free insulation reduces the formation of toxic smoke gases in case of fire, which is particularly advantageous in enclosed spaces or buildings with high visitor frequency.

Functions and equipment in detail

The end ferrule features Easy-Entry insulation, enabling splice-free cable entry. This means the cable can be inserted directly into the ferrule without additional splicing or stripping tools, reducing assembly time and minimizing error susceptibility. The overall length is 16 mm, with the insulation covering part of the length and the metallic connection screw covering the remainder. The insulation is heat-resistant up to 105 °C, enabling safe use in environments with increased thermal load. The ferrule is made of galvanically zinc-plated copper, ensuring high corrosion resistance and electrical conductivity.

Technology explained simply

The wire end ferrule 47110 is an insulated connection component ensuring a secure electrical contact between a cable and a connection point. The insulation protects against short circuits and electric shock hazards. The Easy-Entry technology allows for quick and secure cable insertion without additional tools. The heat resistance up to 105 °C ensures the ferrule maintains its function even under increased thermal load, such as in electrical switchgear. The galvanic zinc plating of the copper prevents oxidation and ensures a long service life.

Compatibility and accessories

The wire end ferrule is designed for conductor cross-sections from 1.0 to 10 mm² and is compatible with fine- and extra-fine stranded cables according to DIN EN 60228 class 5 and 6. The colour coding according to DIN 46228 part 4 enables unambiguous assignment of cross-sections. The end ferrule is CSA-listed, confirming approval for use in Canada and certain regions of the USA. The ferrule is available in red, which is commonly used in electrical installations for specific conductor types (e.g. neutral conductor), although the colour is not exclusively assigned to a specific function.

Assembly and installation

Assembly is performed by simply inserting the cable into the end ferrule, where the Easy-Entry insulation enables quick and secure connection. The ferrule is then secured at the connection point using suitable tools (e.g. a screw clamp or crimping tool). The insulation ensures the electrical connection is safely covered. Assembly does not require additional tools for stripping the cable, as the end ferrule is directly placed onto the cable.

Operational advantages

The wire end ferrule 47110 provides a reliable and durable electrical connection that remains stable even under load. The halogen-free insulation increases safety in case of fire. The Easy-Entry technology reduces assembly time and minimizes errors. The heat resistance up to 105 °C enables use in various environments, even under increased thermal load. The galvanic zinc plating of the copper ensures high corrosion resistance and extends the service life of the connection.

The end ferrule is available in a pack of 1000 pieces, making it particularly suitable for large-scale installations and series assembly. The packaging unit is designed for use in electrical installations and industrial applications where high quantities are required.

The item price shown refers to 100 pieces Klauke 47110

General
Conductor cross section	1,0-10 mm²
Total length	16 mm
Temperature resistance	105 °C
Insulation	Easy-Entry -
Colour	Red -
Norm	DIN 46228 Part 4 -
Halogen free	Yes -

---
