Klauke 12SG10 pipe cable lug 240 mm² M10 for switching devices

Your rating:
Average rating
product review for Klauke 12SG10 pipe cable lug 240 mm² M10 for switching devices
( 4.6 / 5 ) 47 ratings
Klauke 12SG10
This image may differ from the desired article.
Klauke 12SG10Klauke 12SG10Klauke 12SG10Klauke 12SG10
13,73 EUR
incl. 1,54 EUR copper surcharge
( 16,34 EUR incl. VAT )
≈ £11.49  |  ≈ $15.09
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
In Stock: >25 pieces
1x Klauke 12SG10 pipe cable lug 240 mm² M10 for switching devices
Lieske Part No.:855120
Mfg Part No: 12SG10
UPC/EAN: 4012078464406
Weight:0.1344 kg
Type:12SG10
Graduated prices net
From piecesPrice per pieces
1513,46 EUR
3013,18 EUR
7012,91 EUR
10012,63 EUR

Product information for Klauke 12SG10:

The Klauke cable lug 12SG10 is a tube cable lug designed for use in switchgear, particularly for devices with limited connection space. It is specifically designed for multi-strand conductors, such as those manufactured according to VDE 0295 Class 2, and is also suitable for round-pressed multi-strand sector conductors. The slim design enables optimal space utilisation in compact switching devices and is achieved through a modern manufacturing process that operates without material loss. Processing from annealed copper material in accordance with EN 13600 ensures high crimping strength and uniform material deformation, guaranteeing a secure and durable connection.

Cable lug

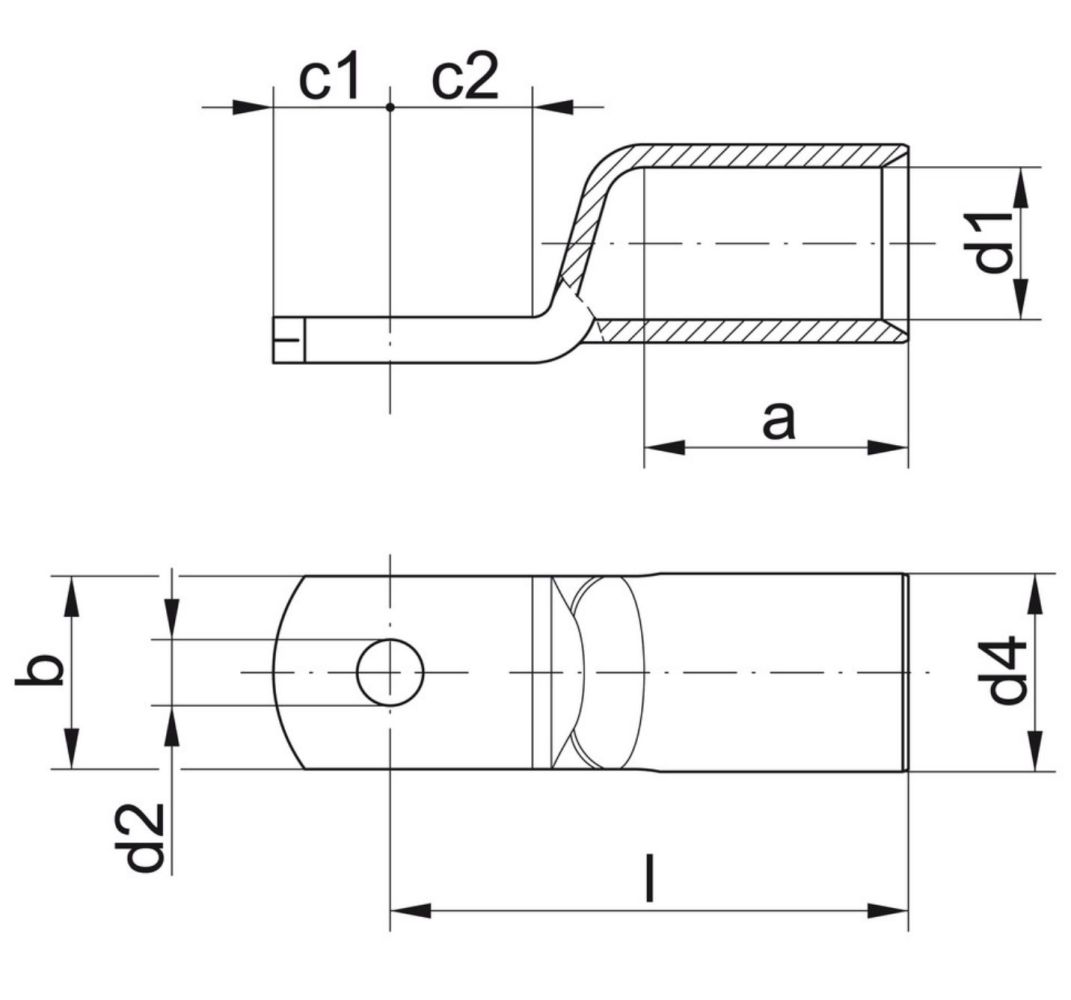

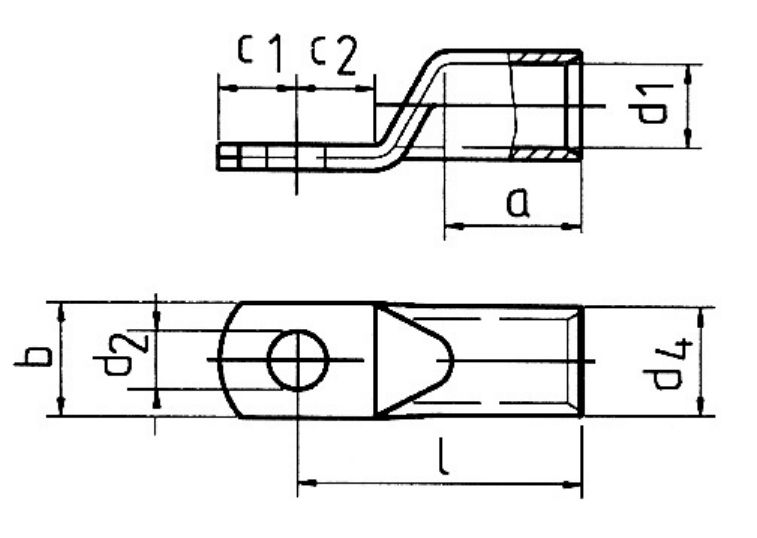

The cable lug 12SG10 is designed as a tube cable lug, meaning it features a cylindrical, open cavity into which the cable is inserted. The inner surface is shaped to enable optimal crimping of the conductor, creating a secure mechanical and electrical connection. The galvanic tin plating protects the copper material from corrosion and ensures good contact quality, especially in damp or aggressive environments.

Functions and equipment in detail
The special stamping technique provides a flat contact surface, ensuring even distribution of screw force and thus enabling a secure connection without local overloading. The ends of the cable lug are precisely machined to allow easy and smooth cable insertion. This reduces installation time and minimises the risk of conductor damage. The use of annealed copper material improves formability and contributes to the longevity of the connection.

Technology explained simply
The cable lug is secured using an M10 thread screw, which compresses the conductor inside the lug. Crimping is achieved through the mechanical force of the screw connection, creating a firm electrical and mechanical bond. The tin plating protects the copper from oxidation and corrosive influences, which is particularly important in industrial or damp environments. The use of copper in accordance with EN 13600 ensures the material possesses the required electrical and mechanical properties.

Compatibility and accessories
The cable lug 12SG10 is designed for multi-strand conductors, particularly VDE 0295 Class 2, and is suitable for round-pressed multi-strand sector conductors. It is designed for use in switchgear where reduced connection space is present.

Installation and mounting
Mounting is performed by inserting the cable into the cable lug and then securing it with an M10 screw. The precise end machining facilitates cable insertion, while the flat contact surface ensures even distribution of screw force. Crimping is achieved through the mechanical force of the screw, creating a secure connection. Installation is simple and requires no additional tools other than a screwdriver or suitable wrench.

Advantages in operation
The cable lug 12SG10 provides a reliable electrical connection through conductor crimping. The slim design enables space saving in compact switchgear. The galvanic tin plating protects against corrosion and ensures long service life. The use of annealed copper material ensures high formability and a secure connection. The precise end machining and flat contact surface facilitate installation and ensure even force distribution.

General
Cable cross-section240 qmm
ThreadM10
MaterialCu
Material standardEN 13600
Surface coatingGalvanic tinned
ApplicationFor stranded conductors, e.g. VDE 0295 class 2
Application rangeSwitchgear with reduced connection area
Manufacturing processnew manufacturing process without material loss
Material conditionAnnealed material
Contact surfaceFlat contact surface via special embossing technique
End processingprecise end processing for easy cable insertion


Please note...
This article contains a copper surcharge of 1,54 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
