Klauke 12R16 pipe cable lug 240 mm² M16 E-Cu galvanically zinc-plated

Your rating:
Average rating
product review for Klauke 12R16 pipe cable lug 240 mm² M16 E-Cu galvanically zinc-plated
( 4.4 / 5 ) 9 ratings

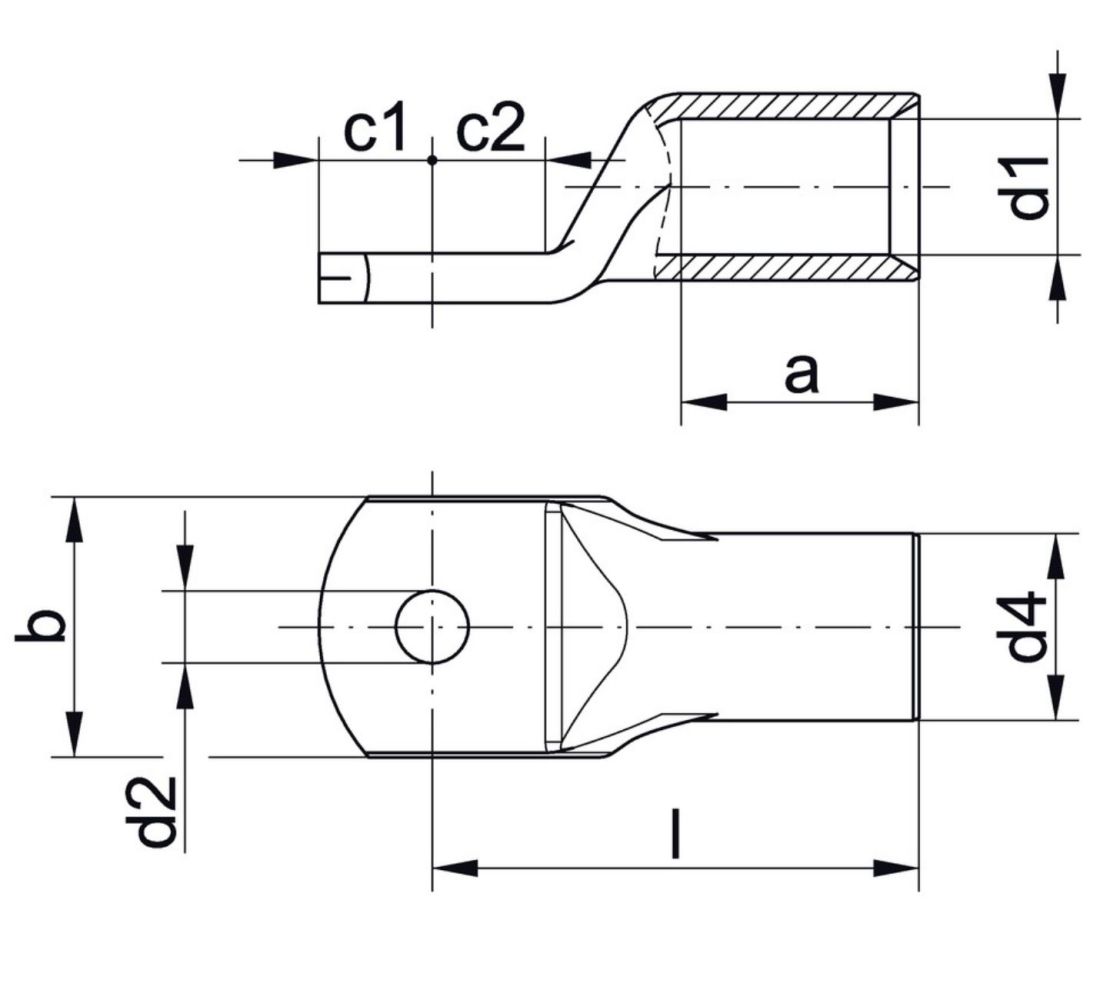

Klauke 12R16
This image may differ from the desired article.
Klauke 12R16Klauke 12R16Klauke 12R16
8,20 EUR
incl. 1,97 EUR copper surcharge
( 9,76 EUR incl. VAT )
≈ £6.86  |  ≈ $9.01
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >50 pieces
1x Klauke 12R16 pipe cable lug 240 mm² M16 E-Cu galvanically zinc-plated
Lieske Part No.:273543
Mfg Part No: 12R16
UPC/EAN: 4012078466363
Weight:0.145 kg
Type:12R16
Graduated prices net
From piecesPrice per pieces
257,87 EUR
507,55 EUR
1007,22 EUR
2506,89 EUR

Product information for Klauke 12R16:

The Klauke cable lug 12R16 is a tube cable lug designed for use in enclosure construction, specifically intended for multi-strand round conductors, for example in accordance with VDE 0295 Class 2, as well as for round-compressed multi-strand sector conductors. It features optimal material and crimping properties achieved through annealed material, enabling a secure and durable connection. The flat contact surface and precise end finishing facilitate cable entry and ensure even distribution of crimping force. An article identification marking is applied to the cable lug, enabling easy identification. The cable lug is vibration-tested in accordance with DIN EN 61373 Class 1 B, confirming its reliability under dynamic loads. The galvanic tin plating protects the copper material (Cu according to EN 13600) from corrosion and ensures high electrical conductivity as well as good connection strength.

Applications

The cable lug 12R16 is primarily designed for use in enclosure construction, where a secure and durable electrical connection is required. It is particularly suitable for applications involving multi-strand round conductors or round-compressed sector conductors, as commonly used in industrial electrical engineering. The vibration-tested design also makes it suitable for environments subject to mechanical stress, such as in machine construction or manufacturing technology.

Functions and Equipment in Detail

The cable lug features precise end finishing, enabling easy and secure cable insertion. The flat contact surface ensures even distribution of crimping force and prevents local overloading. The article identification marking on the cable lug facilitates identification and sorting, especially in larger projects or during maintenance. The galvanic tin plating protects the copper material from corrosion, increasing the service life and reliability of the connection.

Technology Explained Simply

The annealed material of the cable lug ensures optimal crimping properties, meaning the connection remains stable under pressure and does not loosen. The tin plating acts as a protective coating, shielding the copper from oxidation and corrosion, which is particularly important in humid or aggressive environments. Testing in accordance with DIN EN 61373 Class 1 B confirms that the cable lug maintains its function even under dynamic loads such as vibrations. The Cu material according to EN 13600 is a standard copper material used for electrical connections in industry.

Compatibility and Accessories

The cable lug is suitable for multi-strand round conductors, for example VDE 0295 Class 2, as well as for round-compressed multi-strand sector conductors. It is specifically designed for use in enclosure construction and can be processed using appropriate tools, such as a cable lug crimping tool.

Installation and Mounting

Installation is performed by crimping the cable lug using a suitable tool, with the precise end finishing and flat contact surface enabling easy and secure processing. The connection is durable and resistant to mechanical stress after crimping. It is important that the tool meets the requirements of the cable lug to ensure an optimal connection.

Operational Advantages

The cable lug 12R16 offers high reliability due to its vibration-tested design and galvanic tin plating, which prevents corrosion. The optimal material and crimping properties ensure a durable connection that remains stable even under dynamic loads. The easy cable insertion and article identification marking simplify installation and maintenance, increasing operational efficiency.

General
ApplicationStranded round conductors, compressed stranded sector conductors
Surface treatmentGalvanic tinned
MaterialCu according to EN 13600
TestDIN EN 61373 Class 1 B vibration tested
MarkingPart identification on cable lug
Application rangeSwitchgear construction
Cable typeVDE 0295 Class 2


Please note...
This article contains a copper surcharge of 1,97 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990

Questions & answers

What is the delivery time of Klauke 12R16 pipe cable lug 240 mm² M16 E-Cu galvanically zinc-plated?

The article Klauke 12R16 pipe cable lug 240 mm² M16 E-Cu galvanically zinc-plated is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Klauke 12R16 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Klauke 12R16 pipe cable lug 240 mm² M16 E-Cu galvanically zinc-plated always at the best possible price. We can give you a discount of 2% on Klauke 12R16 pipe cable lug 240 mm² M16 E-Cu galvanically zinc-plated if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 25 pieces of Klauke 12R16 pipe cable lug 240 mm² M16 E-Cu galvanically zinc-plated we can offer you a price of 7,87 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
