SO-DIMM DDR4 8 GB PC3200 CL22 Kingston ValueRAM retail KVR32S22S8/8

Your rating:
Average rating
product review for SO-DIMM DDR4 8 GB PC3200 CL22 Kingston ValueRAM retail KVR32S22S8/8
( 4 / 5 ) 2 ratings
Kingston KVR32S22S8/8
This image may differ from the desired article.
Kingston KVR32S22S8/8Kingston KVR32S22S8/8
101,17 EUR
( 120,39 EUR incl. VAT )
≈ £84.58  |  ≈ $111.19
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
In Stock: >100 pieces
1x SO-DIMM DDR4 8 GB PC3200 CL22 Kingston ValueRAM retail KVR32S22S8/8
Datasheet:file_download Download
Lieske Part No.:1541631
Mfg Part No: KVR32S22S8/8
UPC/EAN: 0740617296099
Weight:0.123 kg
Type:MEM

Product information for Kingston KVR32S22S8/8:

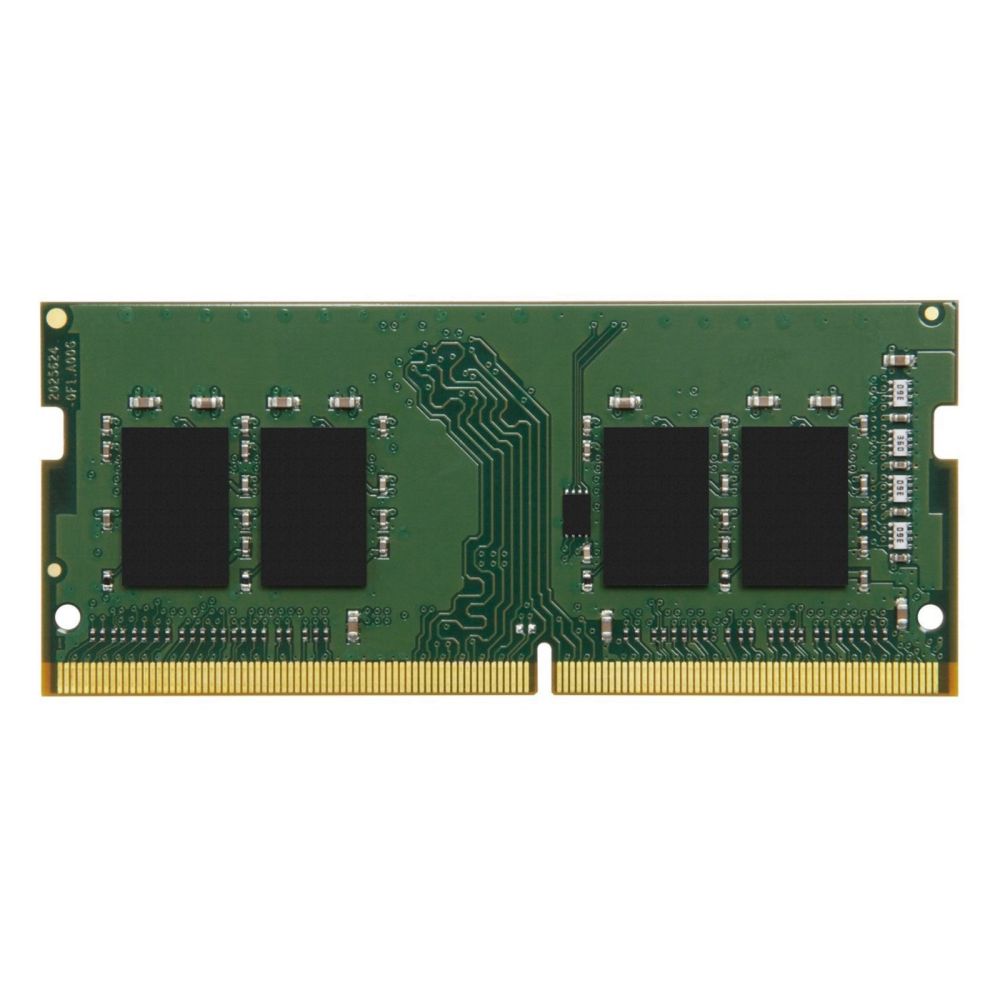

The Kingston ValueRAM memory module type KVR32S22S8/8 is a DDR4 SO-DIMM module with a memory capacity of 8 GB, specifically designed for use in laptops. It features a memory data transfer rate of 3200 MT/s and a CAS latency of 22, enabling efficient data processing under moderate system requirements. The module is configured as unbuffered (unbuffered) and does not support ECC functionality, making it suitable for use in standard notebooks and mobile workstations. The form factor corresponds to the 260-pin SO-DIMM standard, which is installed in the majority of modern laptops.

Applications
This module is primarily designed for use in laptops that support an SO-DIMM memory socket. It is suitable for everyday applications such as web browser usage, text processing, email communication, multimedia playback, and light multitasking tasks. The specifications comply with JEDEC standard timing values for DDR4-3200, ensuring compatible and stable integration into compatible systems. The operating temperature range of 0 to 85 °C and storage temperature range of -55 to 100 °C make the module suitable for use in a wide variety of environments, provided the system cooling is sufficient.

Functions and Features in Detail
The module features a 1Rx8 layout, meaning it consists of a single rank made up of eight 1G x 8-bit FBGA components. The memory cells are organized into 16 internal banks, divided into four groups of four banks each. The memory cells support a fixed Burst-Chop (BC) of 4 and a Burst Length (BL) of 8, with the ability to switch between BC4 and BL8 during operation (on-the-fly). Control is managed via a Mode Register Set (MRS) function. The contacts are gold-plated, ensuring a reliable electrical connection and high corrosion resistance.

Technology Explained Simply
The memory data transfer rate of 3200 MT/s means the module can perform 3.2 billion data transfers per second, ensuring smooth system responsiveness. The CAS latency of 22 indicates the number of clock cycles required to respond to a memory request — a value typical for DDR4-3200 modules. The memory voltage is 1.2 V, which reduces power consumption and ensures compatibility with modern low-voltage systems. The module supports Low-Power Auto-Self-Refresh (LPASR) and Data Bus Inversion (DBI) to further reduce power consumption. On-Die Termination (ODT) ensures stable signal transmission, and the integrated SPD-EEPROM (Serial Presence Detect) enables automatic detection and configuration by the system.

Compatibility and Accessories
The module is designed for laptops that support a 260-pin SO-DIMM memory socket. It is not suitable for desktop computers with 288-pin DIMM sockets. Compatibility is limited to systems that support DDR4 memory with a clock rate of 3200 MT/s and a CAS latency of 22. The specifications comply with JEDEC standard timing values, ensuring broad compatibility within the DDR4-3200 class. There are no specific accessory items recommended or required for this module.

Installation and Mounting
Installation is performed by inserting the module into the corresponding SO-DIMM slot of the laptop. The gold-plated contacts ensure a secure connection. Installation typically requires no additional tools, as the modules are secured in the slot via a clip mechanism. The exact procedure depends on the laptop model series and should follow the device manufacturer’s instructions. Installation is generally straightforward, as the module fits in only one orientation (due to the asymmetric shape of the connector).

Operational Advantages
The module provides reliable and stable memory performance for daily use. The use of ValueRAM technology from Kingston ensures high quality and compatibility. The specifications are designed for a wide range of laptops that support DDR4 memory. Energy efficiency, achieved through the 1.2 V memory voltage and integrated power-saving features such as LPASR and DBI, contributes to extended battery life. Compliance with RoHS and halogen-free composition meet current environmental standards.

Features
CAS latency22
Internal memory8 GB
Memory layout (modules x size)1 x 8 GB
Internal memory typeDDR4
Memory data transfer rate3200 MT/s
Component forLaptop
Memory form factor260-pin SO-DIMM
Buffered memory typeUnregistered (unbuffered)
Memory voltage1.2 V
Row cycle time45.75 ns
Refresh row cycle time350 ns
Row active time32 ns
Lead platingGold
ECCNo
Logistics data
Harmonized System (HS) code84733020
Operational conditions
Operating temperature (T-T)0 - 85 °C
Storage temperature (T-T)-55 - 100 °C
Other features
Country of originTaiwan
Doesn't containHalogen
Sustainability
Compliance certificatesRoHS
Weight & dimensions
Width69.6 mm
Height30 mm


Product data sheet
Datasheet for Kingston KVR32S22S8/8, EAN: 0740617296099

Questions & answers

What is the delivery time of SO-DIMM DDR4 8 GB PC3200 CL22 Kingston ValueRAM retail KVR32S22S8/8?

The article SO-DIMM DDR4 8 GB PC3200 CL22 Kingston ValueRAM retail KVR32S22S8/8 is currently in stock

According to our experience the article is ready for dispatch within 7 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Kingston KVR32S22S8/8 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you SO-DIMM DDR4 8 GB PC3200 CL22 Kingston ValueRAM retail KVR32S22S8/8 always at the best possible price. We can give you a discount of 2% on SO-DIMM DDR4 8 GB PC3200 CL22 Kingston ValueRAM retail KVR32S22S8/8 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
