SO-DIMM DDR4 16 GB PC3200 CL19 Kingston ValueRAM retail KVR32S22S8/16

Your rating:
Average rating
product review for SO-DIMM DDR4 16 GB PC3200 CL19 Kingston ValueRAM retail KVR32S22S8/16
( 4.3 / 5 ) 3 ratings

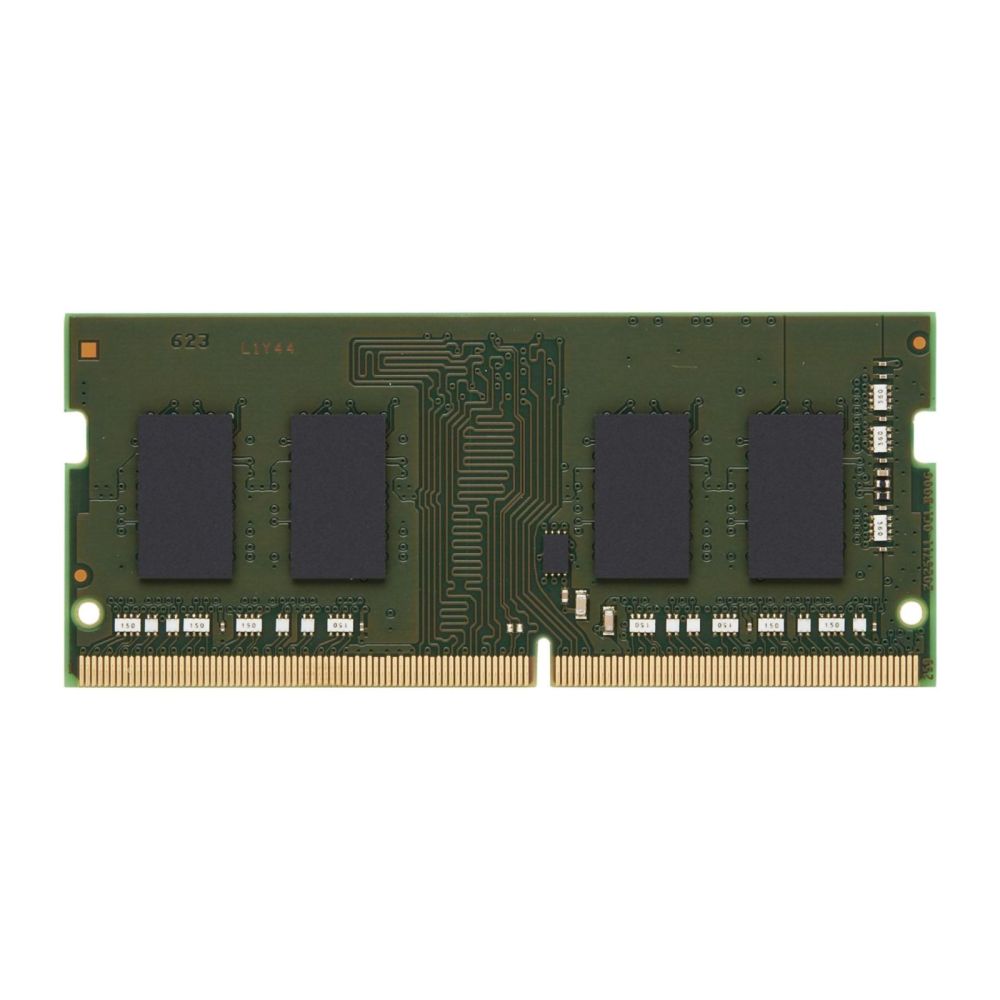

Kingston KVR32S22S8/16
This image may differ from the desired article.
220,62 EUR
( 262,54 EUR incl. VAT )
≈ £184.44  |  ≈ $242.46
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
In Stock: >100 pieces
1x SO-DIMM DDR4 16 GB PC3200 CL19 Kingston ValueRAM retail KVR32S22S8/16
Datasheet:file_download Download
Lieske Part No.:1552591
Mfg Part No: KVR32S22S8/16
UPC/EAN: 0740617310894
Weight:0.123 kg
Type:MEM

Product information for Kingston KVR32S22S8/16:

The Kingston ValueRAM memory module KVR32S22S8/16 is a DDR4 SO-DIMM module with a memory capacity of 16 GB, specifically designed for use in laptops and compact computers such as mini-PCs. It features a memory data transfer rate of 3200 MT/s and a CAS latency of 22, enabling efficient and fast data processing. The module is configured as unbuffered (unbuffered) and non-ECC, which is typical for standard operation in consumer and single-user systems. The form factor 260-pin SO-DIMM conforms to the standard for mobile devices and ensures a compact design with a height of 30 mm and a width of 69.6 mm. The contacts are gold-plated, ensuring a reliable electrical connection and secure fit in the memory socket.

Applications
This module is primarily designed for use in laptops and other mobile computers that support a 260-pin SO-DIMM slot. It is particularly suitable for systems requiring an upgrade in memory capacity to enhance performance during multitasking, program launches, and general applications. The specifications comply with JEDEC standard values for DDR4-3200, ensuring broad compatibility with modern notebook platforms. The operating voltage is 1.2 V, which is standard for DDR4 modules and enables energy-efficient operation.

Features and Specifications in Detail
The module is configured as single-rank (1Rx8), meaning it consists of a single bank made up of eight 2G x 8-bit components. The memory cells are arranged in a 2G x 64-bit layout, resulting in a total capacity of 16 GB. The SPD-EEPROM (Serial Presence Detect) is pre-configured and programmed with JEDEC standard timing values of 22-22-22 at 1.2 V, allowing the module to be automatically detected and correctly initialized in the system without manual settings. The integrated On-Die Termination (ODT) ensures stable signal transmission, while Data Bus Inversion (DBI) optimizes data transfer and supports performance at high frequencies. The module also supports Low-Power Auto Self Refresh (LPASR) to minimize power consumption in standby mode.

Technology Explained Simply
The memory data transfer rate of 3200 MT/s means the module can perform 3.2 billion data transfers per second, enabling fast response times for applications and system operations. The CAS latency (CL22) indicates the number of clock cycles required to respond to a data request — the lower the value, the faster the response. The voltage of 1.2 V is standard for DDR4 modules and ensures a balanced performance and energy efficiency. The 260-pin configuration is specifically designed for mobile devices to save space and enable a compact form factor. The gold-plated contacts increase lifespan and prevent oxidation, ensuring a stable connection.

Compatibility and Accessories
The module is designed for systems that support a 260-pin SO-DIMM slot. It is configured as non-ECC and unbuffered, making it suitable for use in standard notebooks but not for servers or high-performance computers. The specifications comply with JEDEC standard values, ensuring high compatibility with modern platforms.

Installation and Mounting
Installation is performed by inserting the module into the corresponding SO-DIMM slot of the laptop or mini-PC. The gold-plated contacts and the module’s shape ensure a secure fit. Installation typically requires no additional tools, as the modules are usually secured in the slot by pressure and clamp mechanisms. The system automatically recognizes the module via the SPD-EEPROM, so no manual configuration is required.

Operational Advantages
With its high memory bandwidth of 3200 MT/s and low CAS latency of 22, the module delivers improved system performance, especially for applications requiring significant memory resources. The energy efficiency provided by the 1.2 V voltage and LPASR function reduces power consumption, which is particularly beneficial for mobile devices. The stable signal transmission via ODT and DBI ensures reliable data transfer, even under heavy loads. The pre-configured SPD-EEPROM enables simple and error-free installation without manual adjustments.

The module is RoHS-compliant and halogen-free, ensuring environmental compatibility and safety during disposal. The product is manufactured in Taiwan and meets applicable safety standards, including UL rating class V-0 for flame resistance of the PCB. The operating temperature range is from 0 °C to +85 °C, and the storage temperature range is from -55 °C to +100 °C, enabling robust use in various environments.

Features
CAS latency22
Internal memory16 GB
Memory layout (modules x size)1 x 16 GB
Internal memory typeDDR4
Memory data transfer rate3200 MT/s
Component forLaptop
Memory form factor260-pin SO-DIMM
Buffered memory typeUnregistered (unbuffered)
ECCNo
Logistics data
Harmonized System (HS) code84733020
Other features
Country of originTaiwan
Weight & dimensions
Width69.6 mm
Height30 mm


Product data sheet
Datasheet for Kingston KVR32S22S8/16, EAN: 0740617310894

Questions & answers

What is the delivery time of SO-DIMM DDR4 16 GB PC3200 CL19 Kingston ValueRAM retail KVR32S22S8/16?

The article SO-DIMM DDR4 16 GB PC3200 CL19 Kingston ValueRAM retail KVR32S22S8/16 is currently in stock

According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Kingston KVR32S22S8/16 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you SO-DIMM DDR4 16 GB PC3200 CL19 Kingston ValueRAM retail KVR32S22S8/16 always at the best possible price. We can give you a discount of 2% on SO-DIMM DDR4 16 GB PC3200 CL19 Kingston ValueRAM retail KVR32S22S8/16 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
