SO-DIMM DDR4 32 GB PC3200 CL22 Kingston ValueRAM retail KVR32S22D8/32

Your rating:
Average rating
product review for SO-DIMM DDR4 32 GB PC3200 CL22 Kingston ValueRAM retail KVR32S22D8/32
( 4 / 5 ) 3 ratings

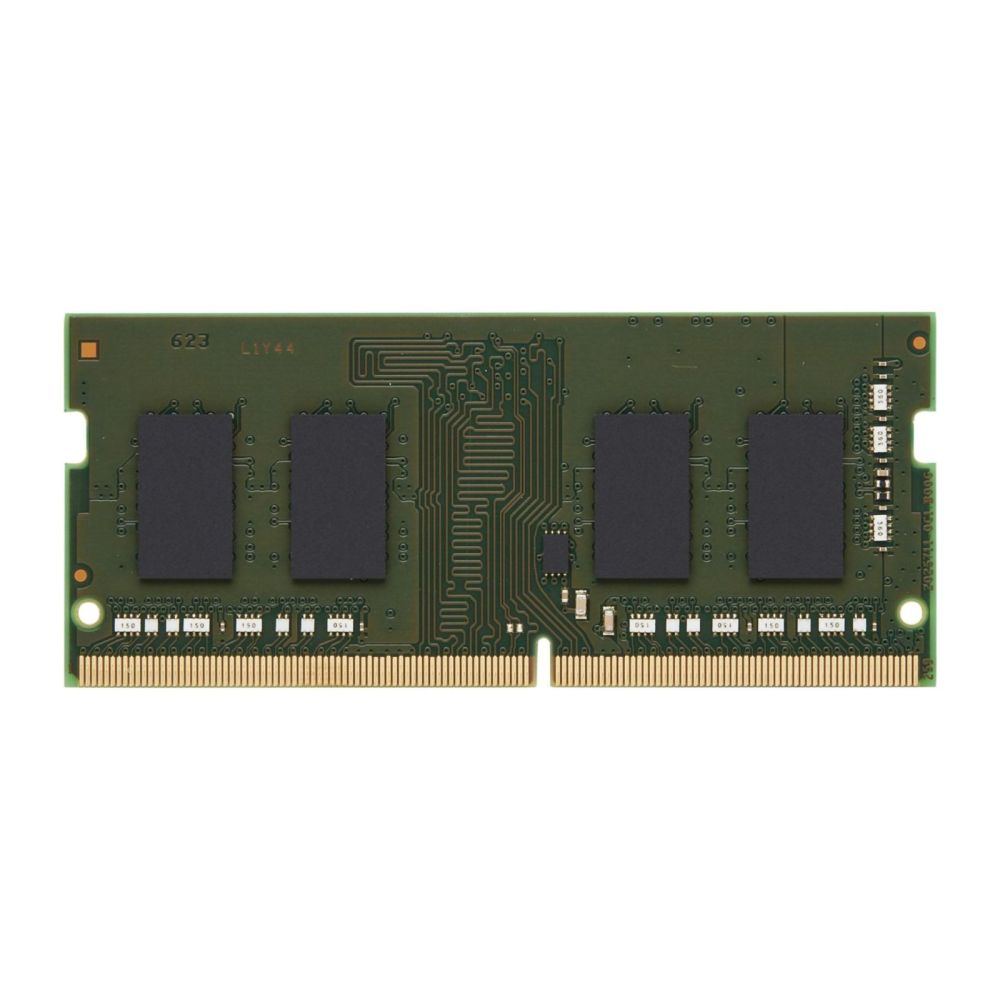

Kingston KVR32S22D8/32
This image may differ from the desired article.
Kingston KVR32S22D8/32Kingston KVR32S22D8/32
433,66 EUR 451,57 EUR
( 516,06 EUR incl. VAT )
≈ £362.54  |  ≈ $476.59
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >100 pieces
1x SO-DIMM DDR4 32 GB PC3200 CL22 Kingston ValueRAM retail KVR32S22D8/32
Datasheet:file_download Download
Lieske Part No.:1503489
Mfg Part No: KVR32S22D8/32
UPC/EAN: 0740617310924
Weight:0.123 kg
Type:MEM

Product information for Kingston KVR32S22D8/32:

The Kingston ValueRAM memory module KVR32S22D8/32 is a DDR4 SO-DIMM module with a memory capacity of 32 GB, specifically designed for use in laptops and compact computers such as Mini-PCs. It is based on DDR4 technology with a memory data transfer rate of 3200 MT/s and a CAS latency of 22, providing balanced performance with low power consumption. The module is configured as unbuffered (non-buffered) and non-ECC, making it suitable for use in standard notebook systems where error correction is not required.

Applications
This module is designed for use in mobile computers, particularly in notebooks and compact systems that support a 260-pin SO-DIMM slot. The low profile height of 30 mm and compact form factor fit the tight space constraints in modern laptops. The specifications comply with the JEDEC standard, ensuring high compatibility with mainstream notebook platforms. The operating temperature range of 0 to 85 °C allows use in a wide range of environments, even under moderate loads.

Features and Specifications in Detail
The module features a 2Rx8 organization, meaning it consists of two ranks (Ranks) with 8 bits per bank each. The internal structure includes 16 internal banks, organized in four groups of four banks each. The memory cells consist of sixteen 2G x 8-bit FBGA components, ensuring stable and reliable data transfer. The SPD-EEPROM (Serial Presence Detect) is programmed to support JEDEC standard timings for DDR4-3200 (22-22-22) at 1.2 V, enabling simple and automatic configuration within the system. The contact surfaces are gold-plated, enhancing electrical conductivity and the longevity of the connection.

Technology Explained Simply
The memory data transfer rate of 3200 MT/s (Megatransfers per second) means the module can perform 3.2 billion data transfers per second, enabling smooth multitasking and fast application loading. The CAS latency of 22 indicates the number of clock cycles required to respond to a memory request — a typical value for DDR4-3200 modules. The memory voltage is 1.2 V, contributing to lower power consumption and reduced heat generation. Additional features such as Low-Power Auto Self Refresh (LPASR) and Data Bus Inversion (DBI) enhance energy efficiency and reduce data bus bandwidth. The On-Die VREFDQ generation ensures precise reference voltage, improving signal integrity.

Compatibility and Accessories
The module is designed for systems that support a 260-pin SO-DIMM slot. It is not suitable for server or workstation systems requiring ECC or buffered memory modules. Compliance with the JEDEC standard ensures broad compatibility with mainstream notebook platforms. It is offered as a ValueRAM product, based on industrial standard specifications and designed for reliable performance in standard applications.

Installation and Mounting
Installation is performed by inserting the module into the corresponding SO-DIMM slot of the laptop or Mini-PC. The gold-plated contact surfaces and precise module shape ensure a secure connection. Installation typically requires no additional tools; the module is secured by retaining clips within the slot. Installation should be carried out after switching off the device and disconnecting the power supply.

Operational Advantages
The module offers a balanced combination of performance and energy efficiency. DDR4 technology with 3200 MT/s enables fast data access, while the low voltage of 1.2 V minimizes power consumption. JEDEC-compliant timings ensure stable and reliable performance. The use of gold-plated contacts increases the lifespan and reliability of the connection. The 2Rx8 organization and 16 internal banks support efficient data processing, especially when running multiple applications simultaneously.

Sustainability and Compliance
The module is RoHS-compliant and halogen-free, enhancing environmental compatibility. The specifications conform to international standards, underscoring the quality and reliability of the product. The storage temperature range of -55 to 100 °C allows safe storage under various conditions.

Features
CAS latency22
Internal memory32 GB
Memory layout (modules x size)1 x 32 GB
Internal memory typeDDR4
Memory data transfer rate3200 MT/s
Component forLaptop
Memory form factor260-pin SO-DIMM
Buffered memory typeUnregistered (unbuffered)
Memory voltage1.2 V
Row cycle time45.75 ns
Refresh row cycle time350 ns
Row active time32 ns
Programming power voltage (VPP)2.5 V
ECCNo
JEDEC standardYes
Logistics data
Harmonized System (HS) code84733020
Operational conditions
Operating temperature (T-T)0 - 85 °C
Storage temperature (T-T)-55 - 100 °C
Other features
Country of originTaiwan
Doesn't containHalogen
Sustainability
Compliance certificatesRoHS
Weight & dimensions
Width69.6 mm
Depth3.7 mm
Height30 mm


Product data sheet
Datasheet for Kingston KVR32S22D8/32, EAN: 0740617310924

Questions & answers

What is the delivery time of SO-DIMM DDR4 32 GB PC3200 CL22 Kingston ValueRAM retail KVR32S22D8/32?

The article SO-DIMM DDR4 32 GB PC3200 CL22 Kingston ValueRAM retail KVR32S22D8/32 is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Kingston KVR32S22D8/32 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you SO-DIMM DDR4 32 GB PC3200 CL22 Kingston ValueRAM retail KVR32S22D8/32 always at the best possible price. We can give you a discount of 2% on SO-DIMM DDR4 32 GB PC3200 CL22 Kingston ValueRAM retail KVR32S22D8/32 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
