Kingston KVR16LS11/8 8 GB SO-DIMM DDR3-1600

Your rating:
Average rating
product review for Kingston KVR16LS11/8 8 GB SO-DIMM DDR3-1600
( 0 / 5 ) 0 ratings

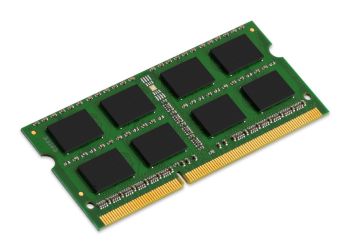

Kingston KVR16LS11/8
This image may differ from the desired article.
-24% 56,64 EUR 74,55 EUR
( 67,40 EUR incl. VAT )
≈ £47.35  |  ≈ $62.25
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Kingston KVR16LS11/8 8 GB SO-DIMM DDR3-1600
Lieske Part No.:505485
Mfg Part No: KVR16LS11/8
UPC/EAN: 0740617219791
Weight:0.123 kg

Product information for Kingston KVR16LS11/8:

The Kingston ValueRAM memory module KVR16LS11/8 is a DDR3L SO-DIMM module with a memory capacity of 8 GB, specifically designed for use in laptops. It features a 204-pin form factor, which is standard for notebooks and small form factor systems. The module operates at a memory data transfer rate of 1600 MT/s, equivalent to a bus clock rate of 1600 MHz, and is therefore designed for systems requiring high bandwidth with moderate power consumption. The CAS latency is 11, enabling balanced performance with low latency. The memory voltage is 1.35 V or 1.5 V, with the 1.35 V version optimized for energy-efficient systems and the 1.5 V version suitable for systems with standard power supply.

Applications
This module is designed for use in mobile computers, particularly laptops that support a 204-pin SO-DIMM slot. It is suitable for systems requiring sufficient memory capacity for everyday applications, office software, web browsers, and multimedia processing. The operating temperature ranges from 0 °C to 85 °C, ensuring reliable performance under normal operating conditions. The storage temperature ranges from -55 °C to 100 °C, ensuring storage capability under various environmental conditions.

Features and Specifications in Detail
The module is configured as unbuffered (unregistered), meaning it operates without data buffering and is therefore suitable for use in standard PCs and notebooks. The memory interface width is 64 bits, which is the standard width for desktop and laptop memory. The module configuration is specified as 1G x 64, indicating the internal organization of the memory chips. The chip organization is X8, describing the number of memory chips per rank. The module features a gold plating on the contacts, ensuring a reliable and corrosion-resistant connection.

Technology Explained Simply
The designation DDR3L stands for Double Data Rate 3 Low Voltage, a memory technology that offers reduced power consumption compared to standard DDR3 technology without significantly compromising performance. The memory data transfer rate of 1600 MT/s means that 1600 million data transfers occur per second, ensuring smooth system responsiveness and fast data access. The CAS latency of 11 indicates the number of clock cycles required to respond to a memory access, with lower values indicating faster response times. The Row Cycle Time of 48.125 ns and the Refresh Row Cycle Time of 260 ns are technical parameters that define memory access cycles and refresh behavior to ensure data integrity.

Compatibility and Accessories
The module is designed for laptops that support a 204-pin SO-DIMM slot. It is not suitable for desktop PCs with 240-pin DIMM slots. Compatibility depends on the specific laptop platform, particularly the supported memory type (DDR3L), clock rate (1600 MT/s), and voltage (1.35 V or 1.5 V). The ValueRAM product line from Kingston is intended for customers requiring industrial-standard memory for white-box systems or generic computers. The modules are developed according to tested industry specifications and are available at competitive prices.

Installation and Mounting
Installation is performed by inserting the module into the corresponding SO-DIMM slot of the laptop. The contacts are gold-plated, ensuring a secure connection. No additional tools are required, as the module is secured in the slot by a clip mechanism. The dimensions are 67.6 mm in width and 30 mm in height, matching the standard for SO-DIMM modules.

Operational Advantages
The module offers a balanced combination of performance, energy efficiency, and reliability. The lifetime warranty from Kingston Technology ensures long-term use and support. The use of A-grade components guarantees high quality and stability. The energy efficiency provided by DDR3L reduces power consumption, which is particularly beneficial for mobile devices. The standard configuration without ECC (Error-Correcting Code) is suitable for use in non-critical applications where high data integrity is not required.

Features
CAS latency11
Internal memory8 GB
Memory layout (modules x size)1 x 8 GB
Internal memory typeDDR3L
Memory data transfer rate1600 MT/s
Component forLaptop
Memory form factor204-pin SO-DIMM
Memory bus64 bit
Buffered memory typeUnregistered (unbuffered)
Memory voltage1.35,1.5 V
Module configuration1G X 64
Row cycle time48.125 ns
Refresh row cycle time260 ns
Row active time35 ns
Lead platingGold
ECCNo
Logistics data
Harmonized System (HS) code84733020
Operational conditions
Operating temperature (T-T)0 - 85 °C
Storage temperature (T-T)-55 - 100 °C
Other features
Chips organisationX8
Country of originTaiwan
Bus clock rate1600 MHz
Memory layout1 x 8192 MB
Error indicationNo
Weight & dimensions
Width67.6 mm
Height30 mm
