DDR5 32GB PC6400 CL52 Kingston Certified Partner ECC Registered retail content_copy

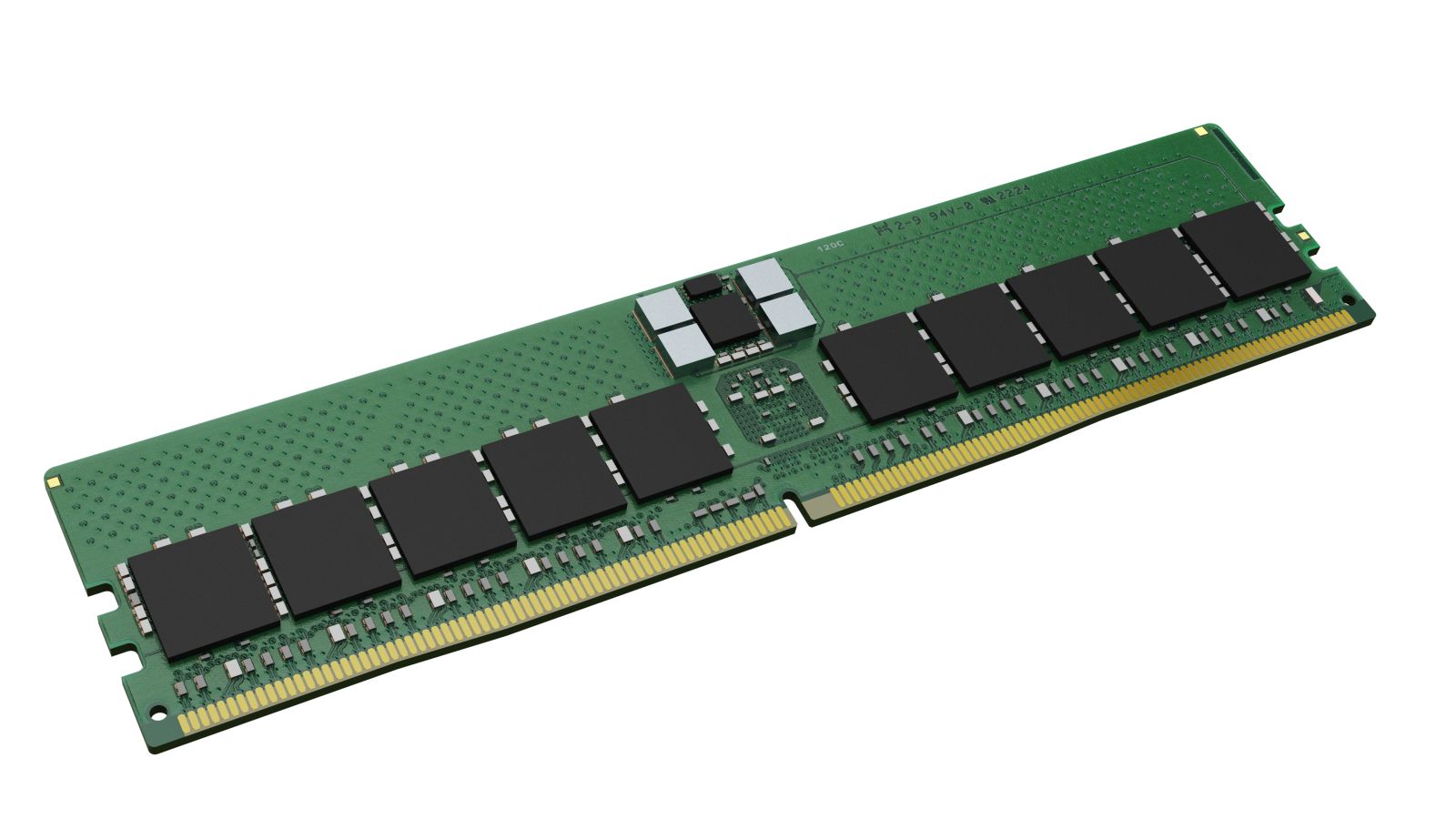

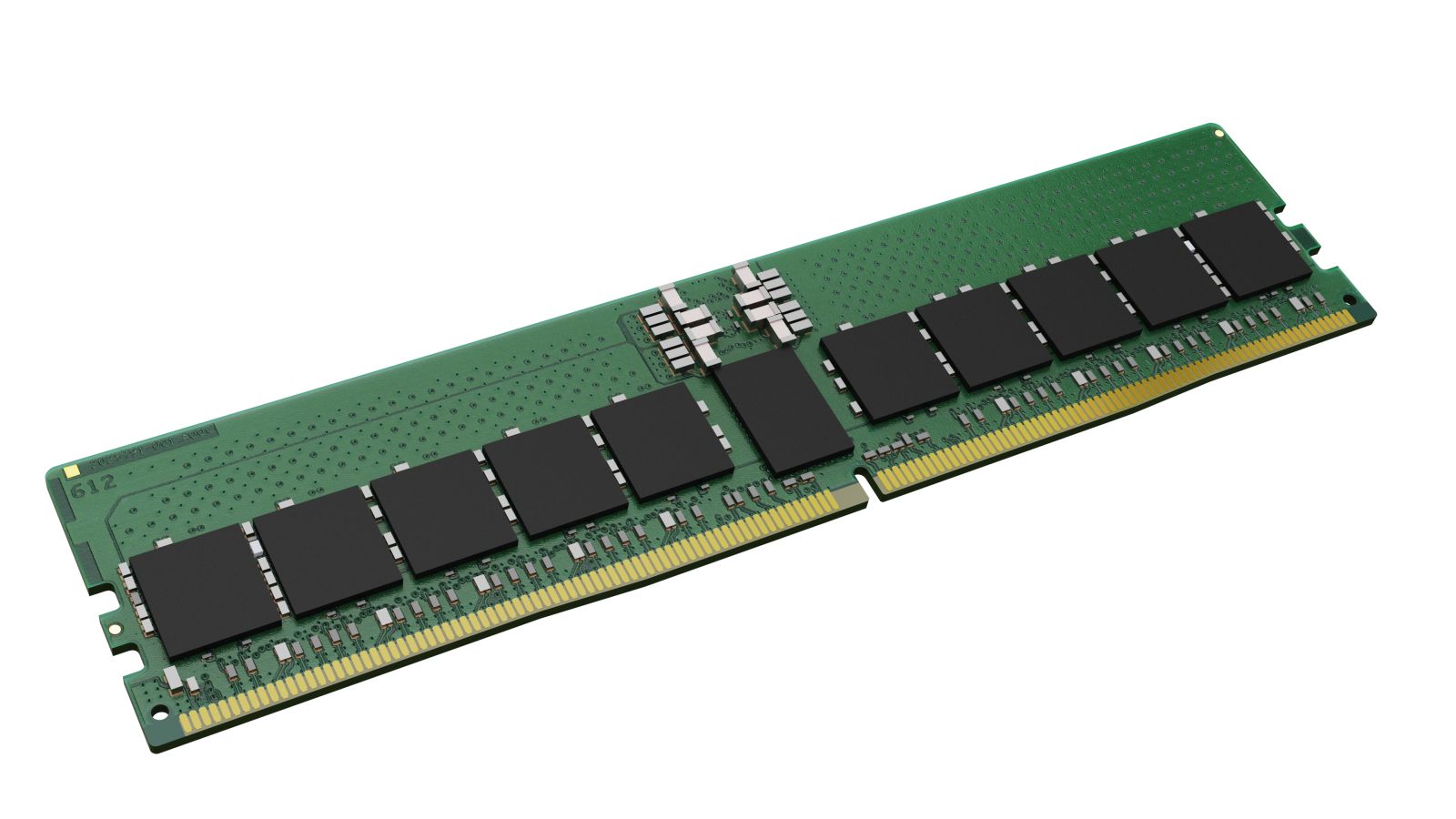

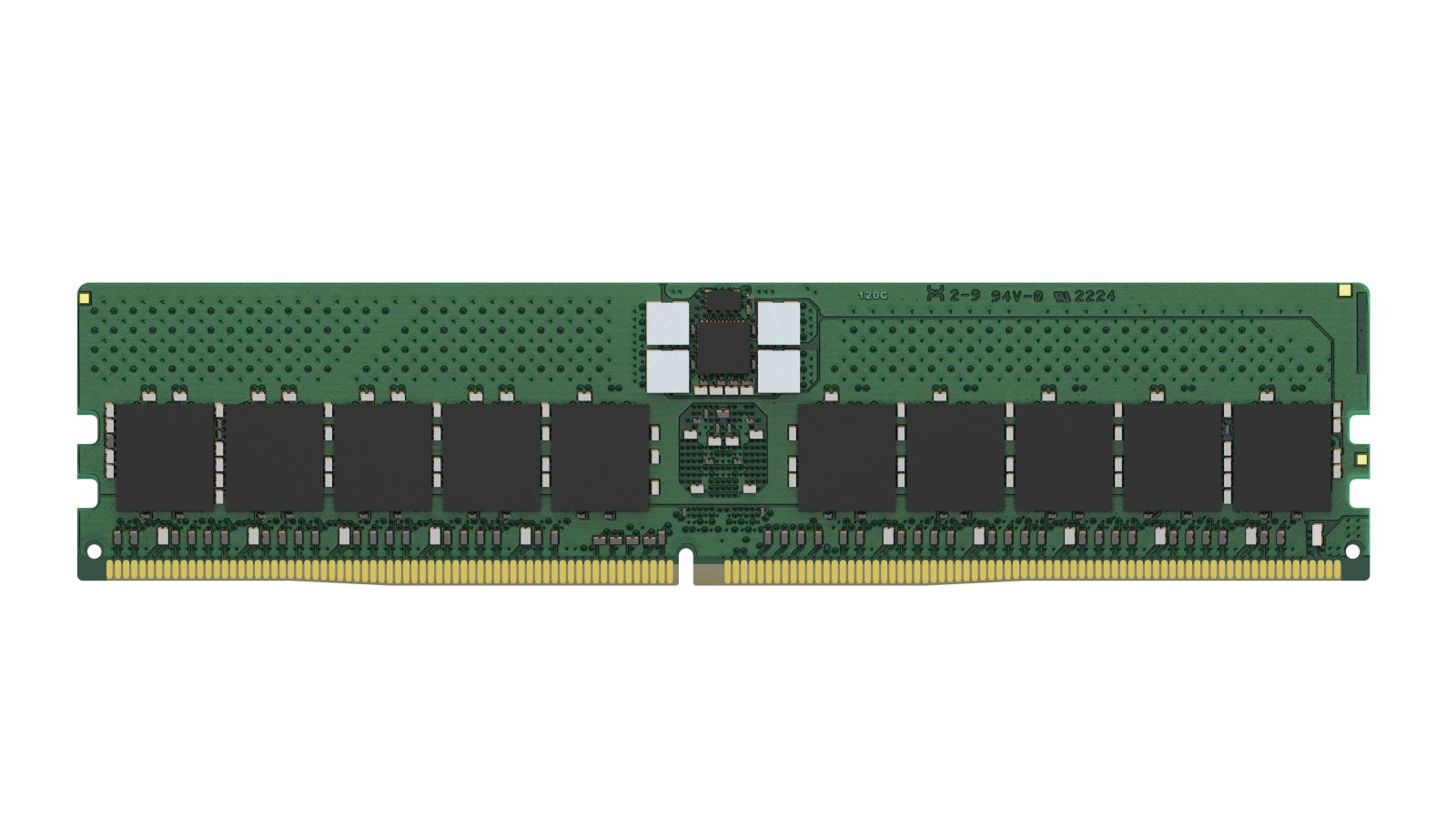

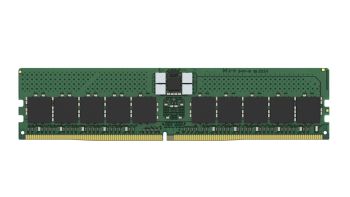

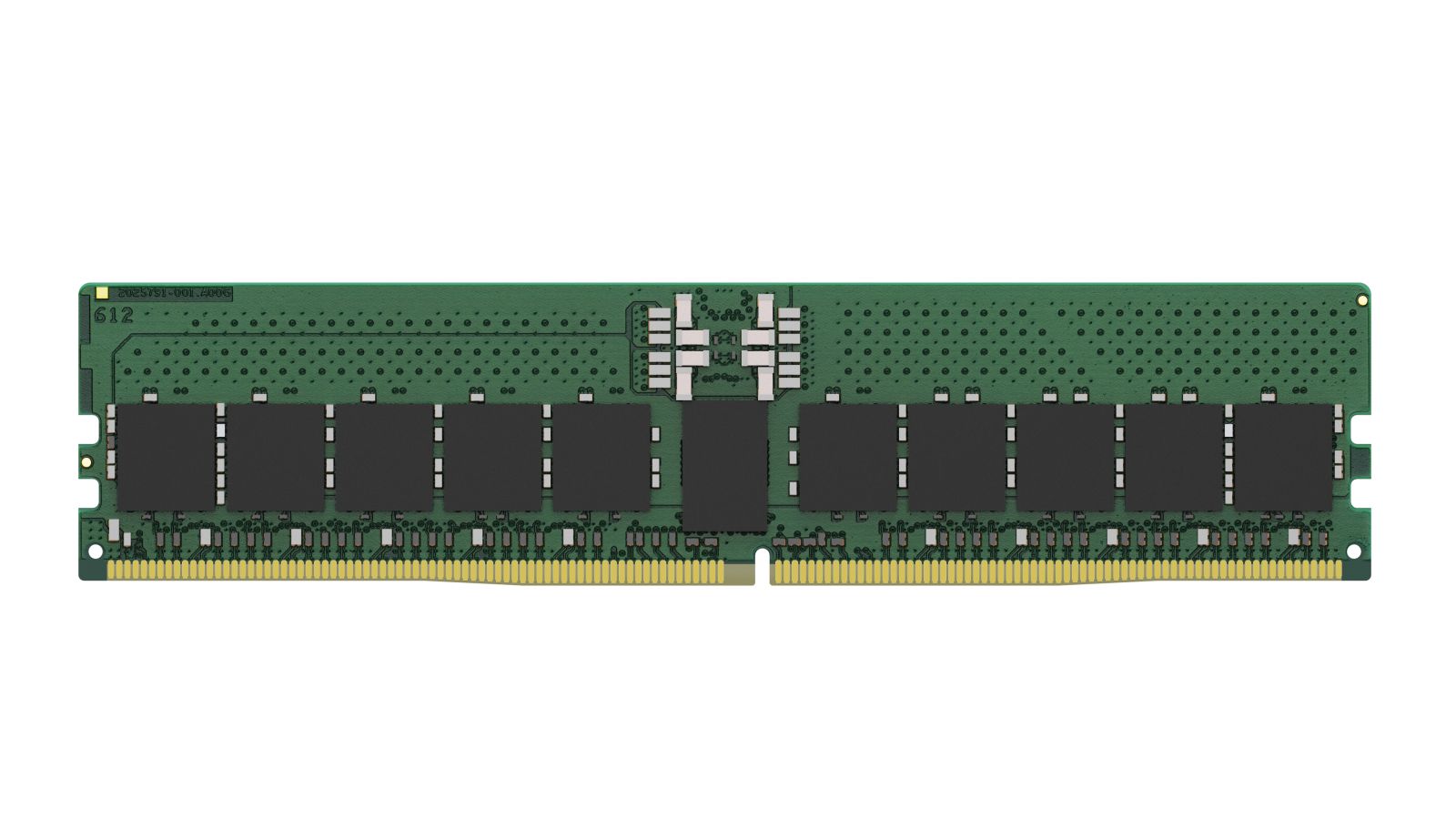

The Kingston Server memory module KTD-PE564D8-32G is a DDR5 module with a memory capacity of 32 GB, designed for use in PC systems, particularly in server or workstation environments that require high reliability and data integrity. The module features ECC error correction and is designed as a buffered (registered) module, making it suitable for systems with multiple memory modules where stable and error-free data transfer is critical. It has a 288-pin DIMM form factor, which is standardized for modern server and workstation platforms.

Applications
This memory module is primarily intended for server and workstation systems that process high loads, parallel processing, and critical applications. The combination of ECC and registered technology ensures that data errors are detected and corrected, enhancing system stability. Typical use cases include data centers, database servers, or virtual machine environments. The module is not suitable for general desktop PCs without ECC support.

Features and Specifications in Detail
The module offers a memory data transfer rate of 6400 MT/s, corresponding to the memory standard designation DDR5-6400 / PC5-51200. This high speed enables fast data processing and reduces latency in demanding applications. The CAS latency is 52 (CL52), which is typical for DDR5 modules in this speed class and represents a balance between speed and stability. The module is configured as 2RX8, meaning it has two ranks (ranks) with 8 bits per rank, increasing bandwidth and memory capacity per module.

Technology Explained Simply
The ECC function (Error-Correcting Code) detects and corrects single-bit errors in memory that may arise from electromagnetic interference, thermal effects, or other disturbances. This is especially important in critical systems, where a memory error could lead to data loss or system crashes. The buffered (registered) architecture ensures that the memory module communicates through a register controller that synchronizes signals between the CPU and memory. This enhances stability when using multiple memory modules in the system. The operating voltage of 1.1 V is standard for DDR5 modules and ensures efficient power supply.

Compatibility and Accessories
The module is compatible with server and workstation motherboards that support DDR5-6400 and ECC-buffered memory (registered). It is not suitable for systems without ECC support. The 2RX8 module configuration requires a motherboard platform that supports dual-rank modules. No specific accessories are included with this module; the delivery scope consists solely of the memory module itself. No accessories such as cables, adapters, or mounting hardware are included.

Installation and Mounting
Installation is performed by inserting the 288-pin DIMM module into the corresponding memory slot on the motherboard. The slots are designed for registered ECC modules, and the physical form of the module (with 288 pins) and electrical compatibility (ECC, registered) ensure it will only function in compatible systems. Mounting requires no additional tools; the module is pressed into the slot until it locks securely.

Operational Advantages
Using this module provides high data integrity through ECC and enhanced system stability through the buffered architecture. The high memory bandwidth of 6400 MT/s supports performance-intensive applications such as virtual machines, databases, or 3D rendering. The 2RX8 configuration enables efficient use of memory resources in systems with multiple modules. The operating voltage of 1.1 V ensures energy-efficient operation without compromising performance. The module is designed for use in server and workstation environments where reliability and performance are paramount.

Note: Delivery Contents
The delivery includes only the memory module. No additional components such as cables, adapters, mounting accessories, or documentation are included.

Features
CAS latency	52
Internal memory	32 GB
Memory layout (modules x size)	1 x 32 GB
Internal memory type	DDR5
Memory data transfer rate	6400 MT/s
Component for	PC
Memory form factor	288-pin DIMM
Buffered memory type	Registered (buffered)
Memory ranking	2
Memory voltage	1.1 V
ECC

---
