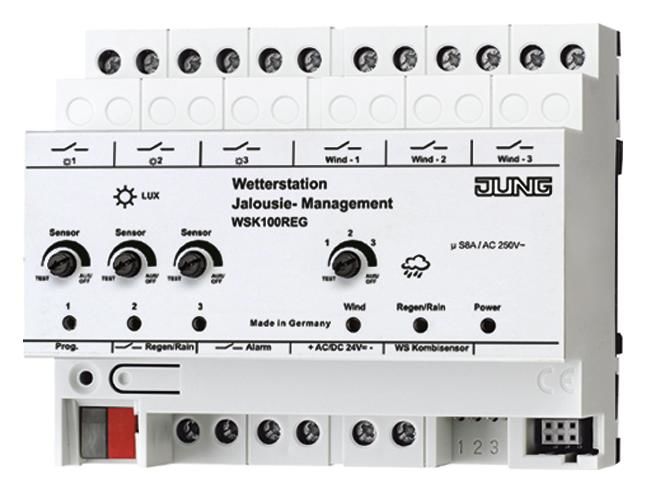

Jung WSK100REG Weather station REG WSK 100, MANA blind
|
420,95 EUR |
|||||||||||
|
( 500,93 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 470127 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | WSK100REG | ||||||||||
| UPC/EAN: | 4011377015883 | ||||||||||
| Weight: | 0.42 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Jung WSK100REG:
The 'Conventional' weather station WSK 100 REG evaluates brightness, wind strength and precipitation in conjunction with the digital combination sensor WS 10 KS and the power supply WSSV 10.
It controls a connected blind control system, taking into account the brightness and wind strength, separated into east, south and west facades.
The precipitation detection can be used to close roof windows when it rains, for example.
Properties
Separate outputs for the blinds on the east, south and west facades.
Separately adjustable shading function for the east, south and west facades.
Adjustable common limit value for the wind alarm for the three facade sides.
Switching output when precipitation is detected to control roof windows, for example.
Standard travel time of the blinds with sun protection 2.5 minutes, can be shortened separately for each facade side.
Connection monitoring to the combination sensor with alarm function and message evaluation.
The conventional weather station requires an external 24 V power supply to operate (item no.: WSSV 10). After the supply voltage is switched on, the 'Power' LED lights up green.
Supply
Supply voltage: AC 24 V ~ ± 15 %
Current consumption: max. 300 mA
Ambient temperature: ?5 ... +45 °C
Storage/transport temperature: ?25 ... +70 °C
Humidity
during environment/storage/transport: max. 93 % r. h., no condensation
Installation width: 108 mm (6 HP)
Connections
Inputs, supply: Screw terminals
single-wire: 1 x 0.5 ... 4 mm2
fine-wire without wire end ferrule: 1 x 0.34 ... 4 mm2
fine-wire with wire end ferrule: 1 x 0.14 ... 2.5 mm2
Combi sensor WS 10 KS: 4-pin. WAGO connection terminal type 252-104
Outputs: Relay (normally open)
8 x 250 V / 8 A
Precipitation: yes / no
Adjustment 'Sensor': approx. 0 ... 76 klx
Hysteresis: ± 5 % of the range end value
Adjustment 'Wind': 1 ... 20 m/s, OFF
Position 1: approx. 5 m/s
Position 2: approx. 10 m/s
Position 3: approx. 15 m/s
Hysteresis: ± 5 % of the range end value
