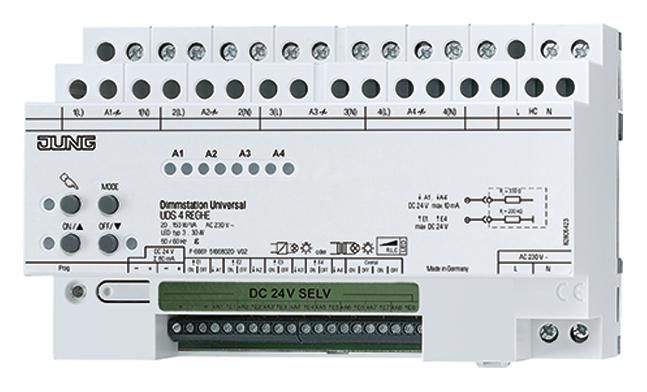

Jung UDS4REGHE Universal Dimmer Station RE,

Universal dimming station, 4-way, REG, with electronic manual control, keypad for operating the dimming station, electronic short-circuit protection with permanent shutdown after 7 seconds at the latest, electronic overtemperature protection, switch-on brightness can be set separately for each load output, switch-on brightness is permanently saved, lamp-friendly switching on through soft start, switching off with dimming function, parallel switching of several outputs possible (increase in output power), power extension through power supplements, connection for hotel card switch, central ON / central OFF, joint switching on or off of the load outputs, parallel switching of two dimming stations or one dimming station and one relay station, automatic setting of the dimming principle suitable for the load, nominal voltage: AC 230/240 V ~, 50/60 Hz, power loss: maximum 20 Ohm, standby power: maximum 2 W, terminals -, +: control voltage: DC 24 V SELV, current load capacity: total 80 mA, length of control cable: maximum 100 m, Number of control points: Sensor module item no.: SM 1608: maximum 4, also with parallel-connected relay/dimming stations, touch sensor module item no.: 4008 TSM: maximum. 4, also with relay/dim stations connected in parallel, touch sensors, 24 V AC/DC buttons (normally open): depends on the touch sensor, note the current consumption, switching inputs E1ON/OFF ... E4ON/OFF: control voltage: DC 24 V SELV, resistance Ri: 200 kOhm, control outputs A1´ to A4´: control voltage: DC 24 V SELV, current load: 10 µA, resistance Ra: 330 Ohm, connection: mains / load outputs / hotel card switch: screw terminals, 1.5 to 4 mm² (single-wire), 0.75 to 4 mm² (fine-wire without wire end ferrule) and 0.5 to 2.5 mm² (fine-wire with wire end ferrule), switching inputs / control outputs / control points: screw terminals, 1.5 mm² (single-wire), 1 mm² (fine-stranded without wire end ferrule) and 0.75 mm² (fine-stranded with wire end ferrule), load outputs A1 to A4: , contact type: micro, length of load cable per channel: maximum 100 m, connected load per channel: incandescent lamps 20 to 150 W, HV halogen lamps 20 to 150 W, Tronic transformers 20 to 150 W, conventional transformers 20 to 150 VA, ohmic-capacitive 20 to 150 W and ohmic-inductive 20 to 150 VA, capacitive-inductive not permitted, power reduction for every 5 °C exceeding 45 °C: 15%, do not connect electronic lamps, e.g. B. switchable or dimmable compact fluorescent lamps or LED lamps, device can be damaged., Width: 144 mm (8 HP), Hotel card switch function: After inserting the hotel card, the light is switched on to the switch-on brightness. After removing the hotel card, the light remains switched on for approx. 1 minute and the dimming station can be operated. After the time has elapsed, the light is dimmed to minimum brightness within approx. 3 minutes and then switched off. The dimming station can then only be operated again after inserting the hotel card.
