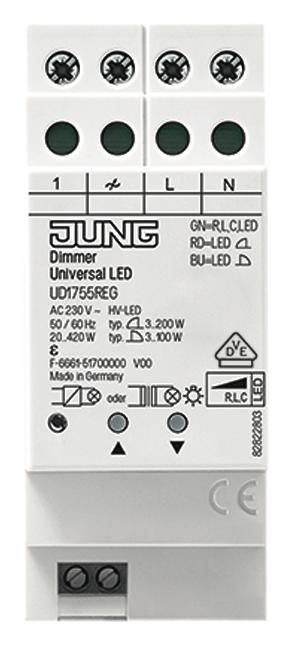

Jung UD1755REG REG Dimmer UNI LED
|
184,68 EUR |
|||||||||||
|
( 219,77 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1349618 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | UD1755REG | ||||||||||
| UPC/EAN: | 4011377167032 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for JUNG UD1755REG:
Intended use
Switching and dimming of lighting
Mounting on top hat rail according to DIN EN 60715 in sub-distribution board
Operation is via the buttons, 2- or 3-wire extension, rotary extension or button with normally open contact
Product features
Device works according to the leading or trailing edge phase control principle
Automatic or manual setting of the dimming principle suitable for the load
Display of the set operating mode via LED
Switching on via lamp-saving soft start
Switching on with last set brightness or saved switch-on brightness
Switch-on brightness can be saved permanently
Minimum brightness can be saved permanently
Electronic short-circuit protection with permanent switch-off after 7 seconds at the latest
Electronic overtemperature protection
Power can be expanded using power additives (item no. ULZ 1755 REG)
Optional accessories: LED compensation module, item no.: KM LED 230 U
Nominal voltage: AC 230 V ~
Mains frequency: 50/60 Hz
Standby power: approx. 0.3 W
Power loss: approx. 3.8 W
Ambient temperature: ?5 ... +45 °C
Connected load at 25 °C
Incandescent lamps: 20 ... 420
W HV halogen lamps: 20 ... 420 W
Electronic transformers: 20 ... 420 W
Electronic transformers with NV LED: 20 ... 100 W
Inductive transformers: 20 ... 420 VA
Inductive transformers with NV LED: 20 ... 100 VA
Dimmable HV LED lamps: typically 3 ... 100 W
Dimmable compact fluorescent lamps: typically 3 ... 100 W
LED trailing edge operating mode: Connected load for HV LED lamps typically 3 ... 400 W, electronic transformers with NV LED typically 20 ... 200 W.
Ohmic-capacitive: 20 ... 420 W
Capacitive-inductive: not permitted
Ohmic-inductive: 20 ... 420 VA
Ohmic and HV-LED: typically 3 ... 100 W
Ohmic and compact fluorescent: typically 3 ... 100 W
Power boosters: see power booster instructions
Connection: screw
terminals single-wire: 1 x 0.75 ... 4.0 mm2 2 x 0.75 ... 2.5 mm2
fine-stranded without wire end ferrule: 1 x 0.75 ... 4.0 mm2 2 x 0.75 ... 2.5 mm2
fine-stranded with wire end ferrule: 1 x 0.5 ... 2.5 mm2
Number of extensions
2-wire extension Art. No. 1720 NE: unlimited
3-wire extension Art. No. 1723 NE: 10
Rotary extension 3-wire Item no.: 1733 DNE: 10
unlit Installation buttons: unlimited
Total length of extension cable: max. 100 m
Total length of load cable: max. 100 m
Installation width: 36 mm (2 HP)
Type: UD1755REG
