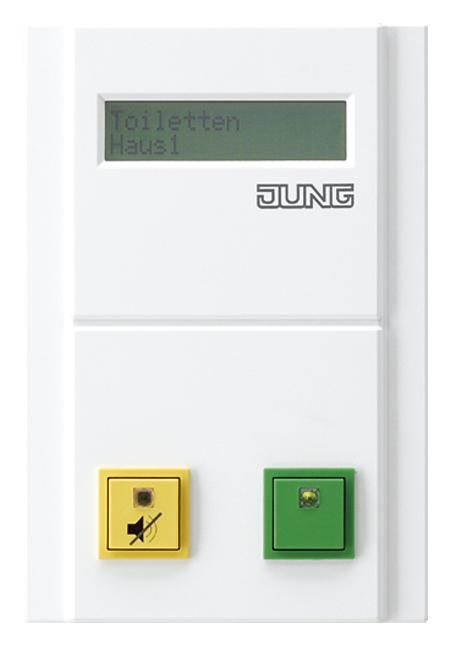

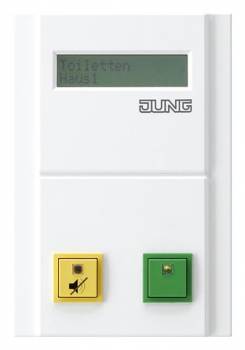

Jung NRSDZT20WW duty room terminal,
|
416,69 EUR |
|||||||||||
|
( 495,86 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 176413 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | NRSDZT20WW | ||||||||||
| UPC/EAN: | 4011377103146 | ||||||||||
| Weight: | 0 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Jung NRSDZT20WW:
Optical and acoustic call signaling
Two-line display to show the call messages
Configurable call texts to assign the calls, each with up to 16 characters
20 galvanically isolated inputs with common ground
Idle or working current evaluation
Suppression of the acoustic message for 20 seconds
Presence switch green
Call suppression button yellow
Configuration via PC
USB cable and software (multilingual) included in delivery
Supply voltage 24 V DC
Inputs 24 V DC
For screw fastening (without fastening claws) on a device socket
Dimensions: 100 x 145 x 24 mm (W x H x D)
Supply voltage: DC 24 V ± 12.5 %
Current consumption: max. 30 mA
Ambient temperature: +5 ... +40 °C
Connection type: spring terminals
, single-wire: Ø 0.3 ... 1.4 mm
Cable type: JY(St)Y
Distance to call module? Duty room terminal: max. 500 m
Inputs
Voltage range: DC 24 V ± 12.5 %
Current consumption: typ. 2 mA
Questions & answers
What is the delivery time of Jung NRSDZT20WW duty room terminal, ?
The article Jung NRSDZT20WW duty room terminal, is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Jung NRSDZT20WW to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Jung NRSDZT20WW duty room terminal, always at the best possible price. We can give you a discount of 2% on Jung NRSDZT20WW duty room terminal, if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 4 pieces of Jung NRSDZT20WW duty room terminal, we can offer you a price of 391,69 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of Jung NRSDZT20WW duty room terminal, via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
